Description

Price

1

SIDE PANEL COMP.1

5UG-K810F-01-00

Unavailable

2

RIVET

90269-06800-00

$2.18

3

SIDE PANEL COMP.2

5UG-K810G-01-00

Unavailable

4

RIVET

90269-06800-00

$2.18

5

COVER ASSY

5UG-F8108-10-00

Unavailable

6

. SEAL 1

5UG-F2873-10-00

Unavailable

7

. SEAL 3

5UG-F2875-10-00

Unavailable

8

BOX

5UG-2177A-00-00

$76.99

9

COVER 2

5UG-28229-00-00

$43.99

10

SEAL

5UG-14457-00-00

$4.58

11

HOLDER, WIRE

5UG-14415-00-00

Unavailable

12

SEAL

5UG-14476-00-00

$5.49

13

RIVET

90269-05001-00

$3.23

14

NUT, SPRING

90183-05008-00

$9.49

15

SCREW, BINDING (8J0)

90154-05005-00

$4.73

16

SUPPORT, SIDE PANEL

5UG-F254J-00-00

Unavailable

17

RIVET

90269-06800-00

$2.18

18

SUPPORT, SIDE PANEL 2

5UG-F254K-00-00

Unavailable

19

RIVET

90269-06800-00

$2.18

20

CLAMP(3XV)

90464-29179-00

Unavailable

21

PROTECTOR, SIDE 1

5UG-K7561-02-00

Unavailable

22

RIVET

90269-06800-00

$2.18

23

CLAMP

90464-48800-00

Unavailable

24

PROTECTOR, FUEL TA

5UG-F4141-01-00

Unavailable

25

RIVET

90269-06800-00

$2.18

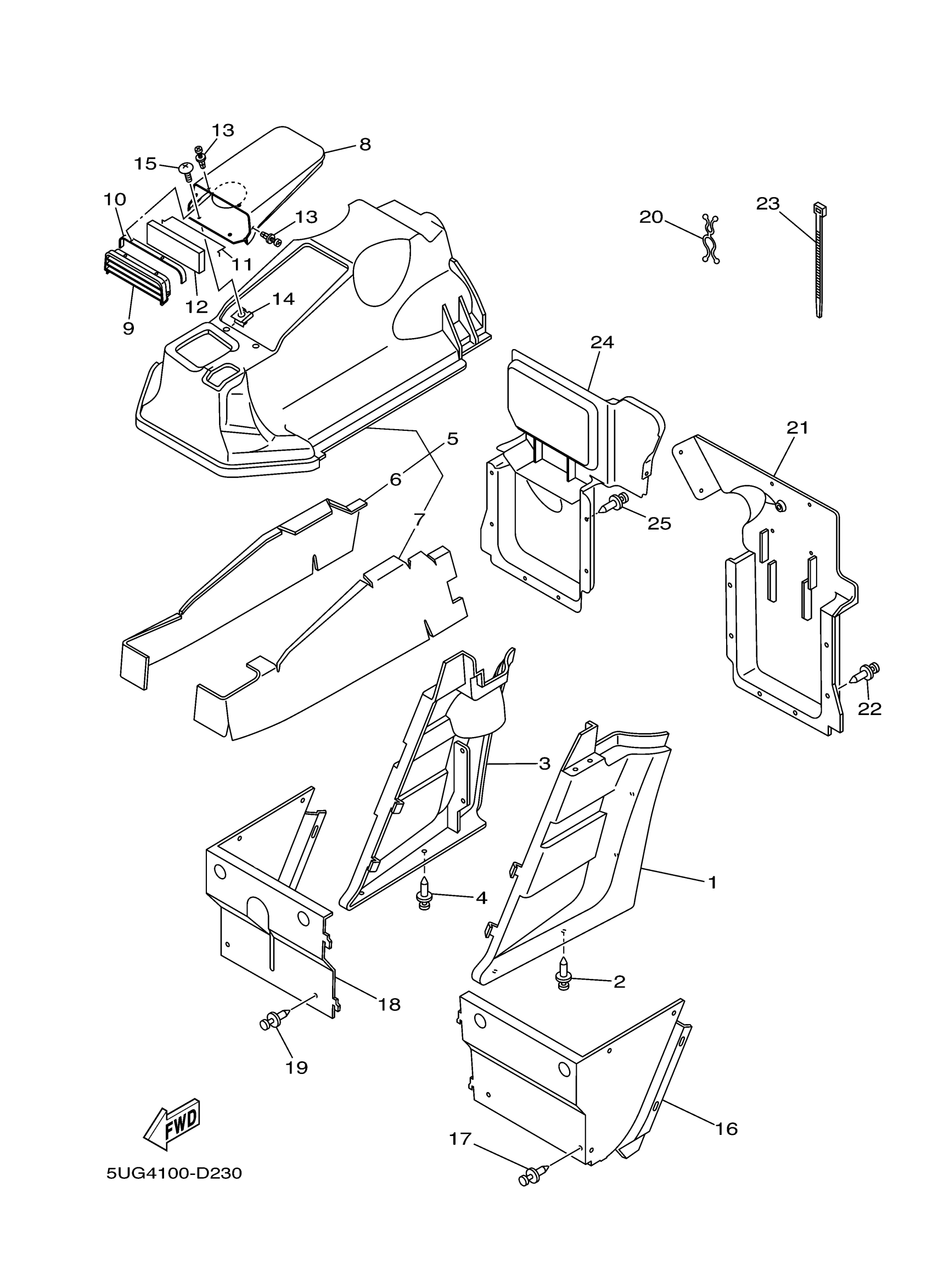

Yamaha YXR660FAT (RHINO) 5UG4 2005 SIDE COVERS Diagram

SIDE PANEL COMP.1

RIVET

SIDE PANEL COMP.2

RIVET

COVER ASSY

. SEAL 1

. SEAL 3

BOX

COVER 2

SEAL

HOLDER, WIRE

SEAL

RIVET

NUT, SPRING

SCREW, BINDING (8J0)

SUPPORT, SIDE PANEL

RIVET

SUPPORT, SIDE PANEL 2

RIVET

CLAMP(3XV)

PROTECTOR, SIDE 1

RIVET

CLAMP

PROTECTOR, FUEL TA

RIVET
