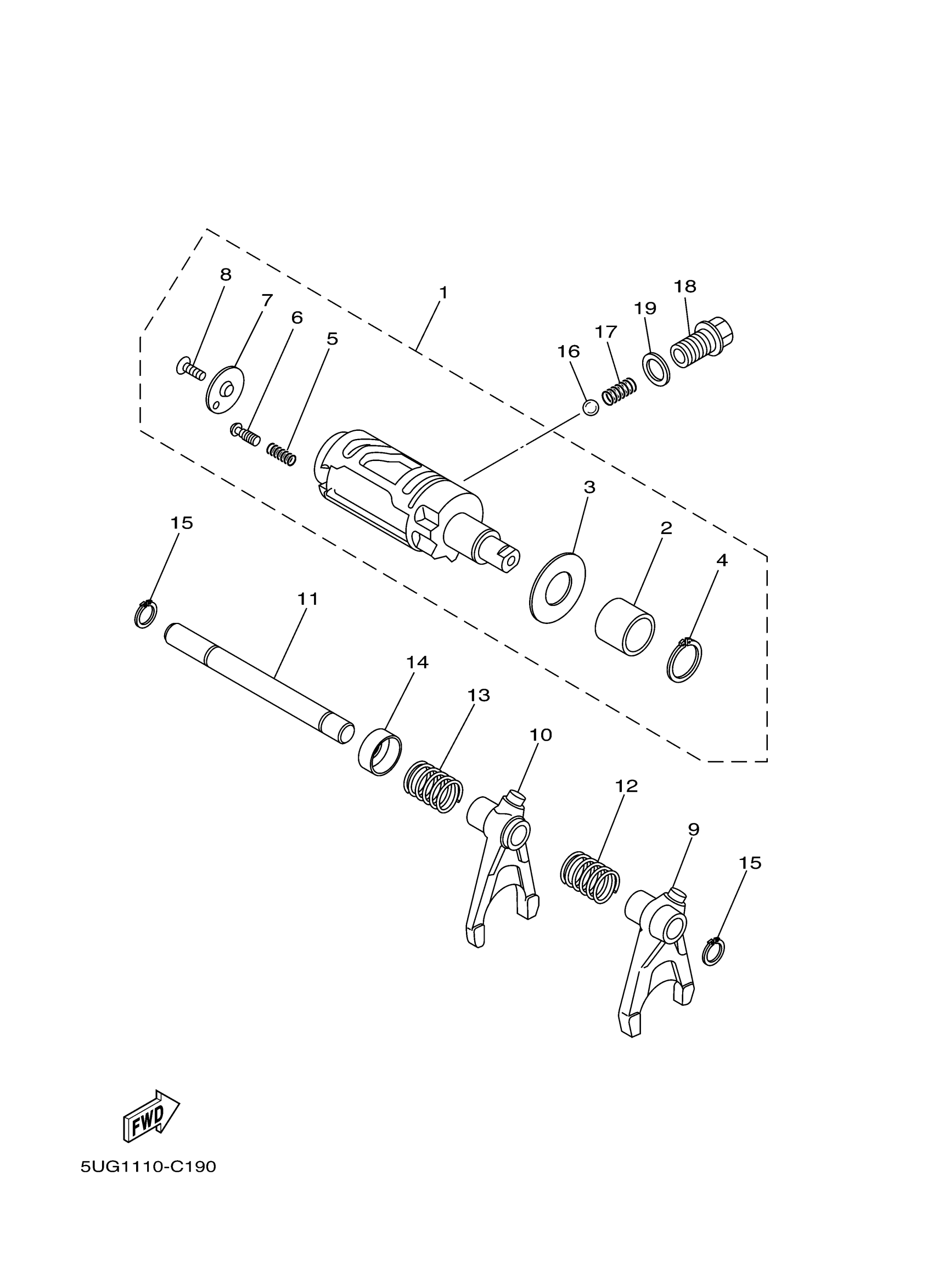

Yamaha YXR660FAT (RHINO) 5UG4 2005 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5UG-18540-00-00

Unavailable

2

. COLLAR

90387-2007S-00

Unavailable

3

. WASHER, PLATE

90201-20015-00

Unavailable

4

CIRCLIP (525)

93410-20038-00

$3.76

5

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

6

POINT, NEUTRAL

5KM-18542-00-00

$15.49

7

PLATE, SIDE 2

4UN-18566-00-00

$19.99

8

SCREW(3HX)

90149-05245-00

$8.49

9

FORK, SHIFT 1

5KM-18511-00-00

Unavailable

10

FORK, SHIFT 2

5KM-18512-00-00

Unavailable

11

BAR, SHIFT FORK GUIDE 1

5KM-18531-01-00

Unavailable

12

SPRING, COMPRESSION

90501-12016-00

$7.49

13

SPRING, COMPRESSION

90501-16002-00

$7.49

14

CAP, SPRING

5KM-18323-00-00

$4.68

15

CIRCLIP(10Y)

99009-12400-00

$3.59

16

BALL

93503-08007-00

Unavailable

17

SPRING, COMPRESSION (465)

90501-10353-00

Unavailable

18

BOLT, WASHER BASED(59V)

90105-14367-00

Unavailable

19

GASKET(59V)

90430-14194-00

Unavailable
