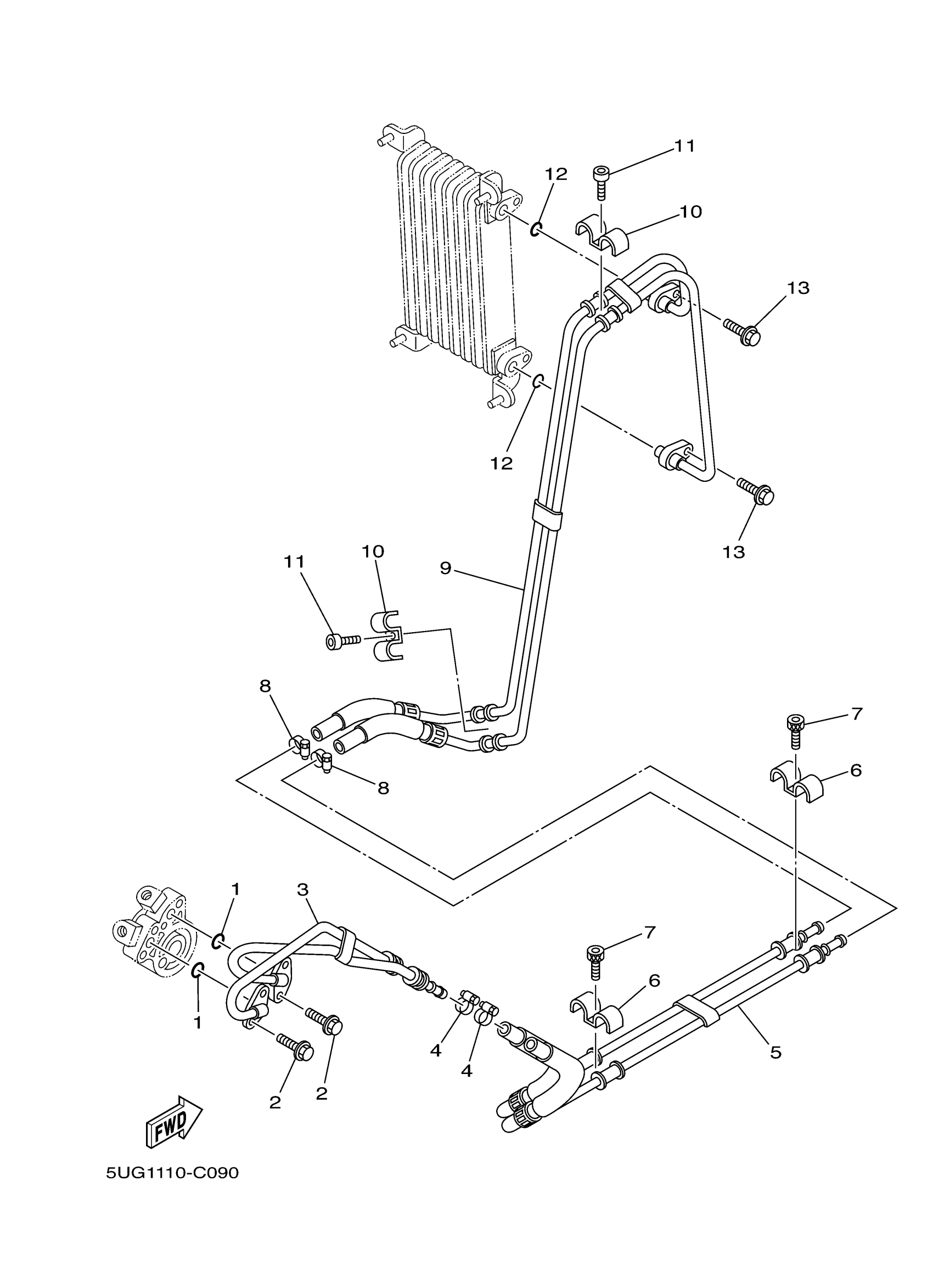

Yamaha YXR660FAT (RHINO) 5UG4 2005 OIL PIPE Diagram

#

Description

Price

1

O-RING (371)

93210-10197-00

$5.47

2

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

3

PIPE, OIL 1

5UG-E3416-00-00

Unavailable

4

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

5

OIL PIPE COMP. 2

5UG-E3406-01-00

Unavailable

6

CLAMP

90462-15800-00

Unavailable

7

BOLT

90111-06810-00

Unavailable

8

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

9

OIL PIPE COMP. 1

5UG-E3405-00-00

Unavailable

10

CLAMP

90462-15800-00

Unavailable

11

BOLT

90111-06810-00

Unavailable

12

O-RING

93210-11M59-00

$4.26

13

BOLT, FLANGE

95817-06020-00

$2.52
