- YXR660FAT (RHINO) 5UG4 2005
MIDDLE DRIVE GEAR

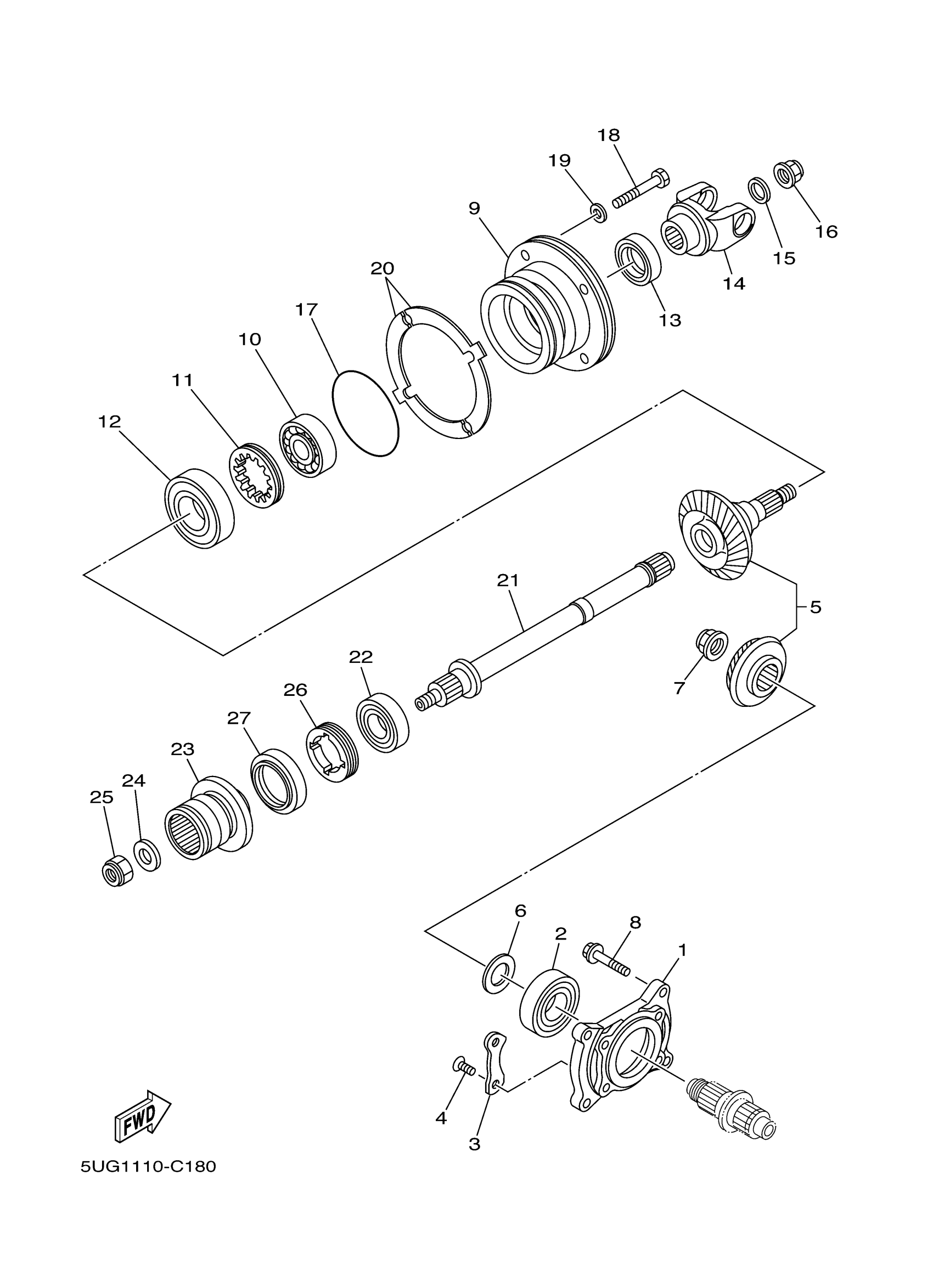

Yamaha YXR660FAT (RHINO) 5UG4 2005 MIDDLE DRIVE GEAR Diagram
#
1
HOUSING, BEARING
5KM-17521-00-00
Unavailable
2
BEARING(3RR)
93306-30560-00
Unavailable
3
PLATE, BEARING COVER
11H-15383-02-00
$14.49
4
SCREW
90149-08013-00
$8.49
5
MIDDLE GEAR COMP.
5KM-Y1754-20-00
Unavailable
6
SHIM, PINION (0.1T)
5KM-17531-00-00
$6.99
6
SHIM, PINION (0.15T)
5KM-17531-10-00
$2.55
6
SHIM, PINION (0.2T)
5KM-17531-20-00
$3.90
6
SHIM, PINION (0.3T)
5KM-17531-30-00
Unavailable
6
SHIM, PINION (0.4T)
5KM-17531-40-00
Unavailable
6
SHIM, PINION (0.5T)
5KM-17531-50-00
$7.99
7
NUT
90179-22015-00
$29.99
8
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
9
HOUSING, BEARING
5KM-17551-10-00
Unavailable
10
BEARING(1LX)
93306-37204-00
$47.99
11
NUT
90179-60001-00
Unavailable
12
BEARING (8U9)
93306-20712-00
Unavailable
13
OIL SEAL(76K)
93102-30339-00
Unavailable
14
YOKE, JOINT
5UG-17556-00-00
Unavailable
15
WASHER, PLATE
90201-16021-00
Unavailable
16
NUT(3JP)
90179-16661-00
Unavailable
17
O-RING (14X)
93210-78544-00
Unavailable
18
BOLT, HEXAGON
97017-08030-00
Unavailable
19
WASHER(6TA)
92907-08600-00
Unavailable
20
SHIM, PINION
4KB-17531-00-00
Unavailable
20
SHIM, PINION
4KB-17531-10-00
Unavailable
20
SHIM, PINION
4KB-17531-20-00
Unavailable
20
SHIM, PINION
4KB-17531-30-00
Unavailable
20
SHIM, PINION
4KB-17531-40-00
Unavailable
20
SHIM, PINION
4KB-17531-50-00
Unavailable
20
SHIM, PINION
4KB-17531-60-00
Unavailable
21
SHAFT, 1
5KM-1761A-10-00
Unavailable
22
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
23
FLANGE, COUPLING 1
5UG-45593-00-00
Unavailable
24
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
25
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
26
NUT(4KB)
90179-55660-00
Unavailable
27
OIL SEAL(2NL)
93102-44454-00
Unavailable
