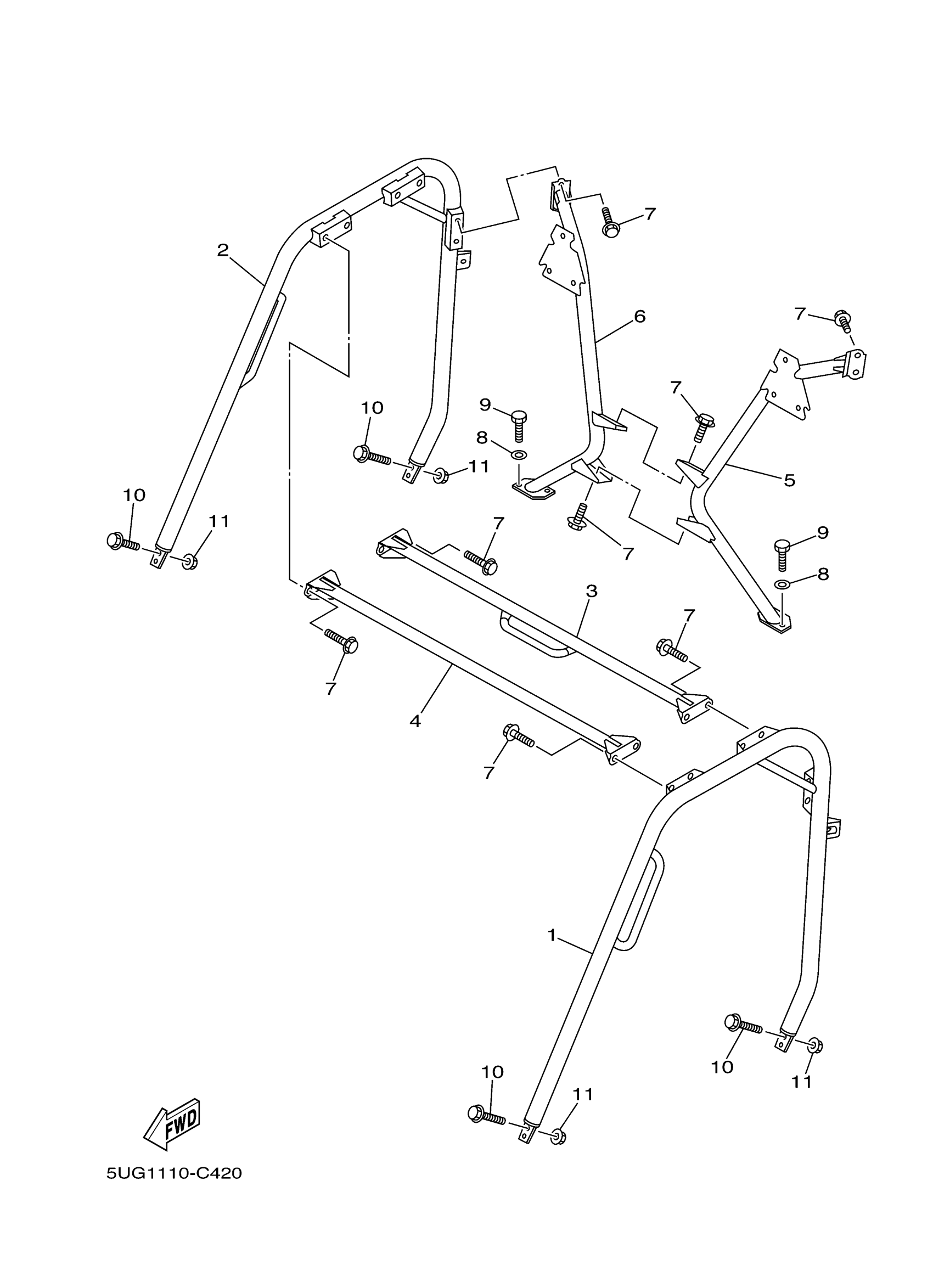

Yamaha YXR660FAT (RHINO) 5UG4 2005 GUARD 2 Diagram

#

Description
Price

1

SUPPORT ROOF 3 (BLACK)

5UG-K831A-11-00

Unavailable

2

SUPPORT, ROOF 4 (BLACK)

5UG-K831E-11-00

Unavailable

3

MEMBER, CROSS ROOF (REAR)

5UG-K8336-02-00

Unavailable

4

MEMBER, ROOF FRAME

5UG-K8392-01-00

Unavailable

5

MEMBER, ROOF FRAME (LEFT)

5UG-K8393-10-00

Unavailable

6

MEMBER, ROOF FRAME (RIGHT)

5UG-K8394-10-00

Unavailable

7

BOLT, FLANGE

95817-10020-00

$8.49

8

WASHER, PLATE (3L6)

90201-10774-00

$9.49

9

BOLT(6TD)

97017-10025-00

$8.49

10

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

11

NUT, SELF-LOCKING(3KJ)

90185-10154-00

$8.49
