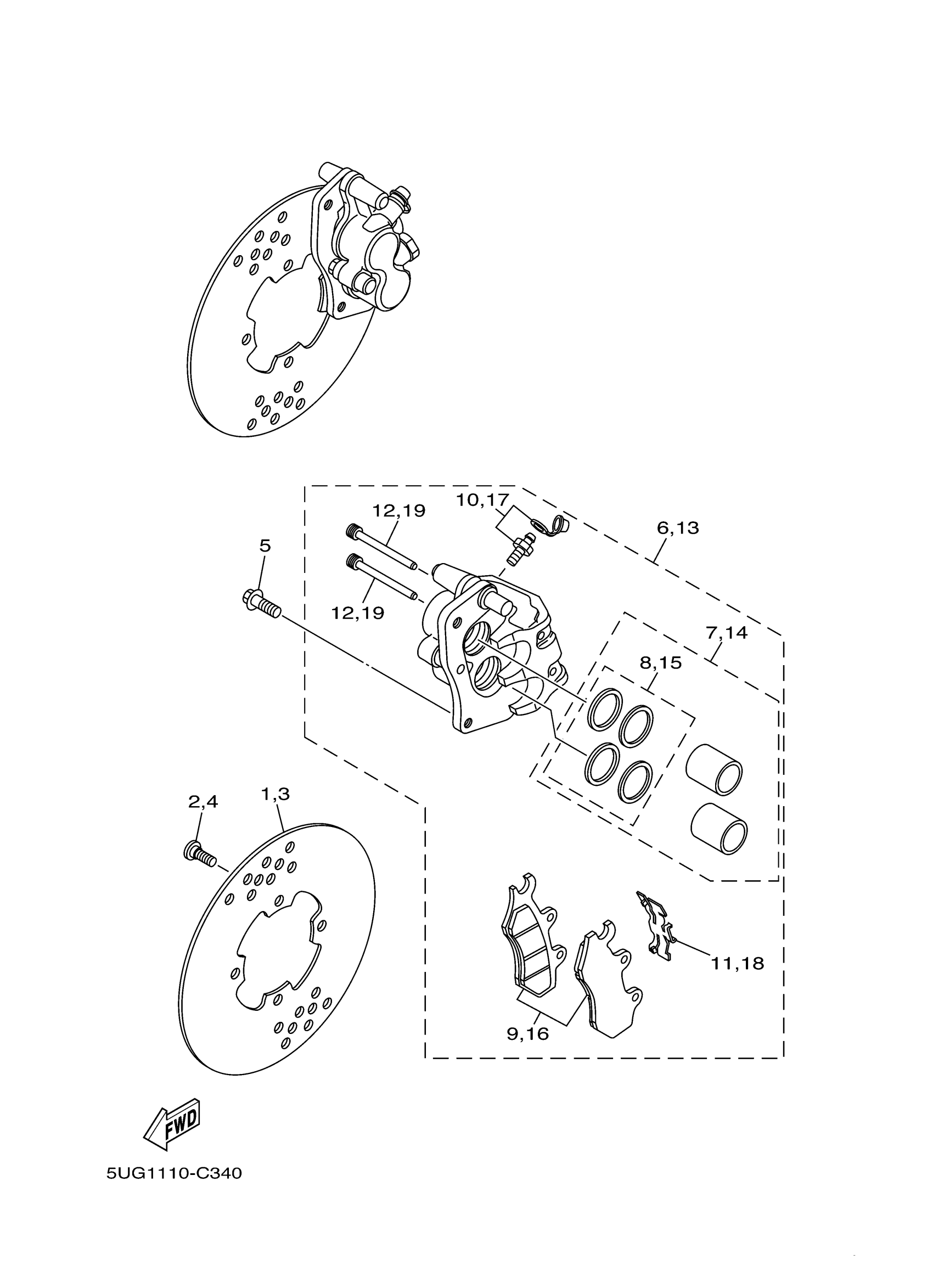

Yamaha YXR660FAT (RHINO) 5UG4 2005 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$64.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$64.99

4

BOLT

90109-08087-00

$8.49

5

BOLT, FLANGE

90105-10082-00

$4.94

6

CALIPER ASSY (RIGHT)

5B4-2580U-01-00

$443.99

7

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

8

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

9

BRAKE PAD KIT

5B4-W0045-10-00

$47.99

10

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

11

SPRING, PAD

3LD-25934-01-00

$30.99

12

PIN, PAD

3FV-25924-00-00

$23.99

13

CALIPER ASSY (LEFT)

5B4-2580T-01-00

$443.99

14

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

15

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

16

BRAKE PAD KIT

5B4-W0045-00-00

Unavailable

17

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

18

SPRING, PAD

3LD-25934-01-00

$30.99

19

PIN, PAD

3FV-25924-00-00

$23.99
