- YXR660FAT (RHINO) 5UG4 2005
CRANKSHAFT PISTON

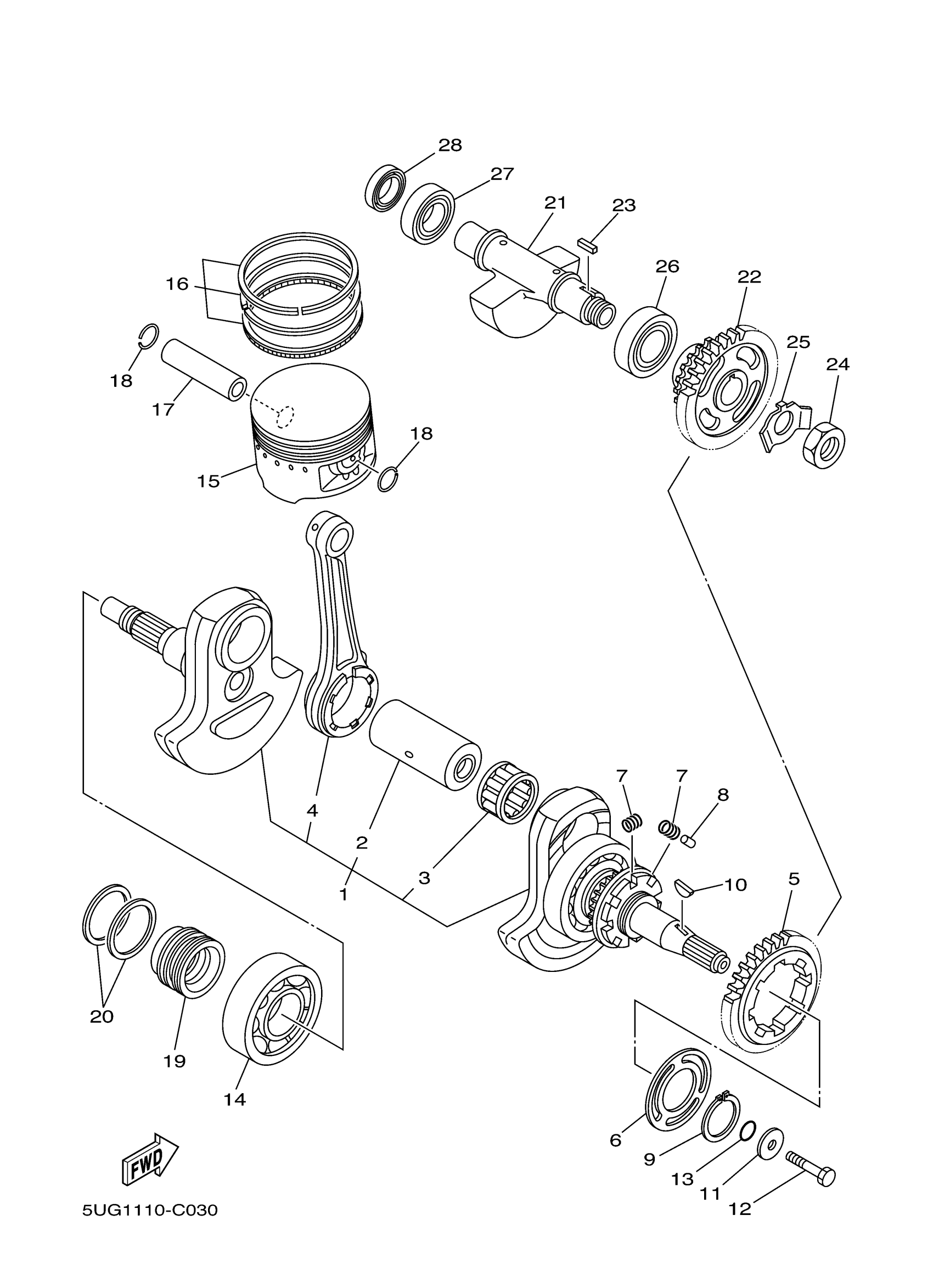

Yamaha YXR660FAT (RHINO) 5UG4 2005 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT ASSY
5KM-11400-00-00
$1,060.99
2
PIN, CRANK 1
5KM-11681-00-00
$96.99
3
BEARING, CYLINDRICAL(3YF)
93310-637D3-00
$83.99
4
ROD, CONNECTING
5LP-11651-00-00
$136.99
5
GEAR, DRIVE
5KM-11536-10-00
Unavailable
6
WASHER, BEARING COVER
5KM-11565-00-00
$14.49
7
SPRING, COMPRESSION
90501-220A1-00
$7.49
8
PIN, DOWEL
93606-09002-00
$4.14
9
CIRCLIP(6U2)
93410-35M10-00
$7.49
10
KEY, WOODRUFF
90280-05001-00
$12.49
11
WASHER, PLATE (856)
90201-10321-00
$8.49
12
BOLT (21V)
90101-10568-00
$5.60
13
O-RING (538)
93210-16290-00
Unavailable
14
BEARING (3GV)
93306-30702-00
$74.99
15
PISTON (STD)
2C6-11631-00-X0
$128.99
15
PISTON (0.50MM O/S)
2C6-11636-00-00
Unavailable
15
PISTON (1.00MM O/S)
2C6-11638-00-00
Unavailable
16
PISTON RING SET (STD)
2C6-11603-10-00
Unavailable
16
PISTON RING SET (0.50MM O/S)
2C6-11605-10-00
Unavailable
16
PISTON RING SET (1.00MM O/S)
2C6-11607-10-00
Unavailable
17
PIN, PISTON
3YF-11633-01-00
Unavailable
18
CIRCLIP 256116340000
93450-24028-00
Unavailable
19
SPACER 1
5KM-16181-00-00
Unavailable
20
SEAL, CRANK
5KM-11447-00-00
Unavailable
21
WEIGHT 1
5KM-11454-10-00
Unavailable
22
BALANCER WEIGHT GEAR COMP.
5KM-11530-00-00
Unavailable
23
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
24
NUT
90170-18003-00
Unavailable
25
WASHER, LOCK
90215-18001-00
Unavailable
26
BEARING(3RR)
93306-30560-00
Unavailable
27
BEARING (6304YA1-9TC4)
93306-30442-00
Unavailable
28
OIL SEAL (20X30X7-371)
93102-20108-00
Unavailable
