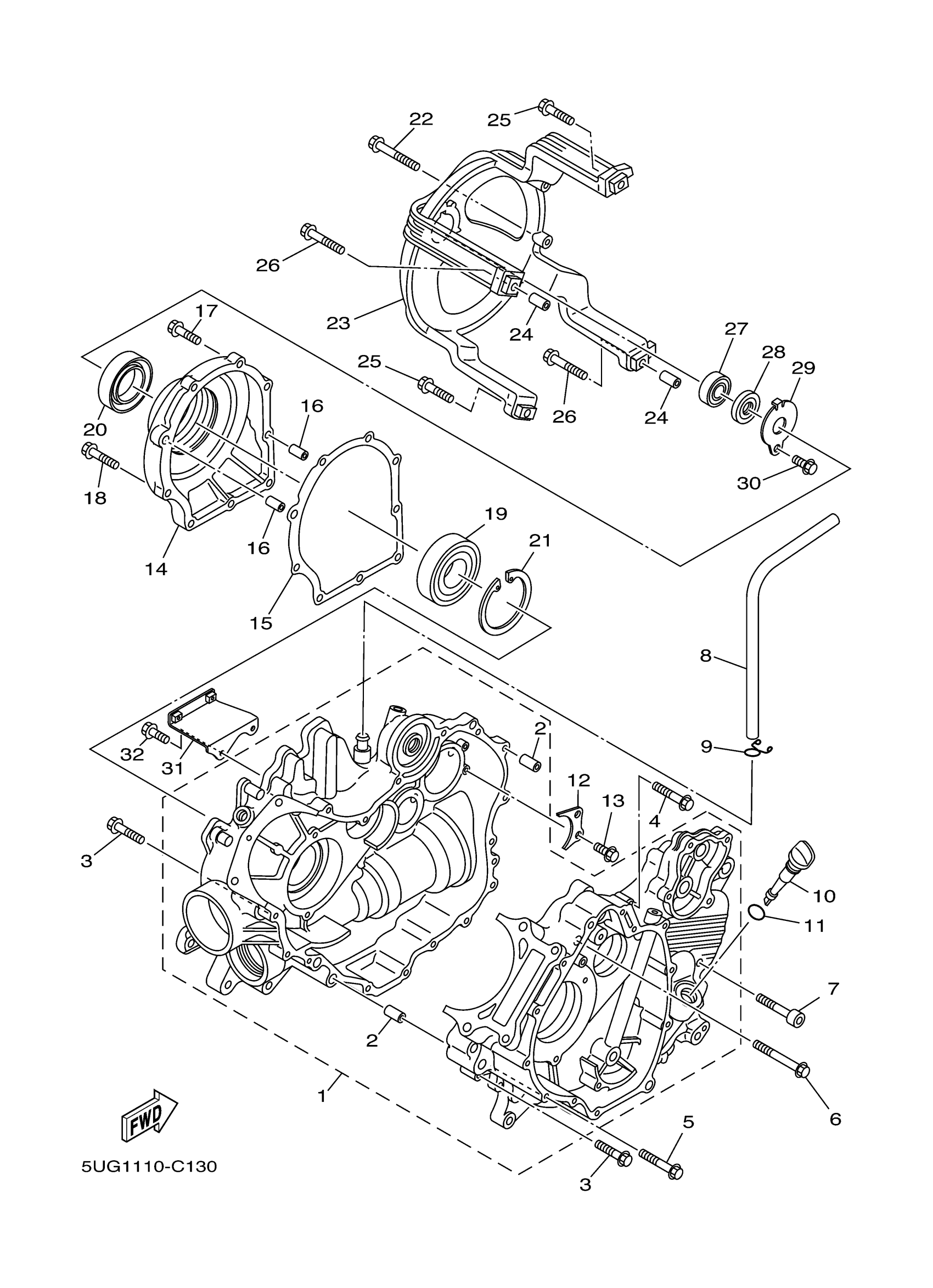

Yamaha YXR660FAT (RHINO) 5UG4 2005 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5KM-15100-12-00

$1,571.99

2

PIN, DOWEL(2VG)

99530-10116-00

$4.25

3

BOLT, SMALL FLANGE

95027-06030-00

$3.98

4

BOLT, SMALL FLANGE

95027-06030-00

$3.98

5

BOLT, SMALL FLANGE

95027-06040-00

$3.28

6

BOLT, SMALL FLANGE

95027-06055-00

Unavailable

7

BOLT,SOCKET

91317-08040-00

$7.49

8

PIPE, BREATHER 1

5UG-11166-00-00

Unavailable

9

CLIP (371)

90467-14015-00

$8.49

10

PLUG, OIL LEVEL

5UG-15362-00-00

Unavailable

11

O-RING (603)

93210-19026-00

$8.49

12

PLATE, BEARING COVER

4WV-15388-00-00

Unavailable

13

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

14

HOUSING, BEARING 1

5KM-15163-00-00

$115.99

15

GASKET, BEARING HOUSING 2

5KM-15463-00-00

$16.49

16

PIN, DOWEL(2VG)

99530-10116-00

$4.25

17

BOLT, SMALL FLANGE

95027-06030-00

$3.98

18

BOLT, SMALL FLANGE

95027-06040-00

$3.28

19

BEARING

93316-01003-00

Unavailable

20

OIL SEAL

93102-35004-00

Unavailable

21

CIRCLIP (70R)

93420-80066-00

Unavailable

22

BOLT, FLANGE(7FK)

95827-06050-00

Unavailable

23

HOUSING, BEARING

5KM-15442-00-00

Unavailable

24

PIN, DOWEL(2VG)

99530-10116-00

$4.25

25

BOLT, FLANGE

95817-06030-00

Unavailable

26

BOLT, FLANGE

95817-06040-00

Unavailable

27

BEARING(82M)

93306-20117-00

Unavailable

28

OIL SEAL

93101-12168-00

Unavailable

29

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

30

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

31

BRACKET

5UG-15199-00-00

Unavailable

32

BOLT, FLANGE

95817-06016-00

Unavailable
