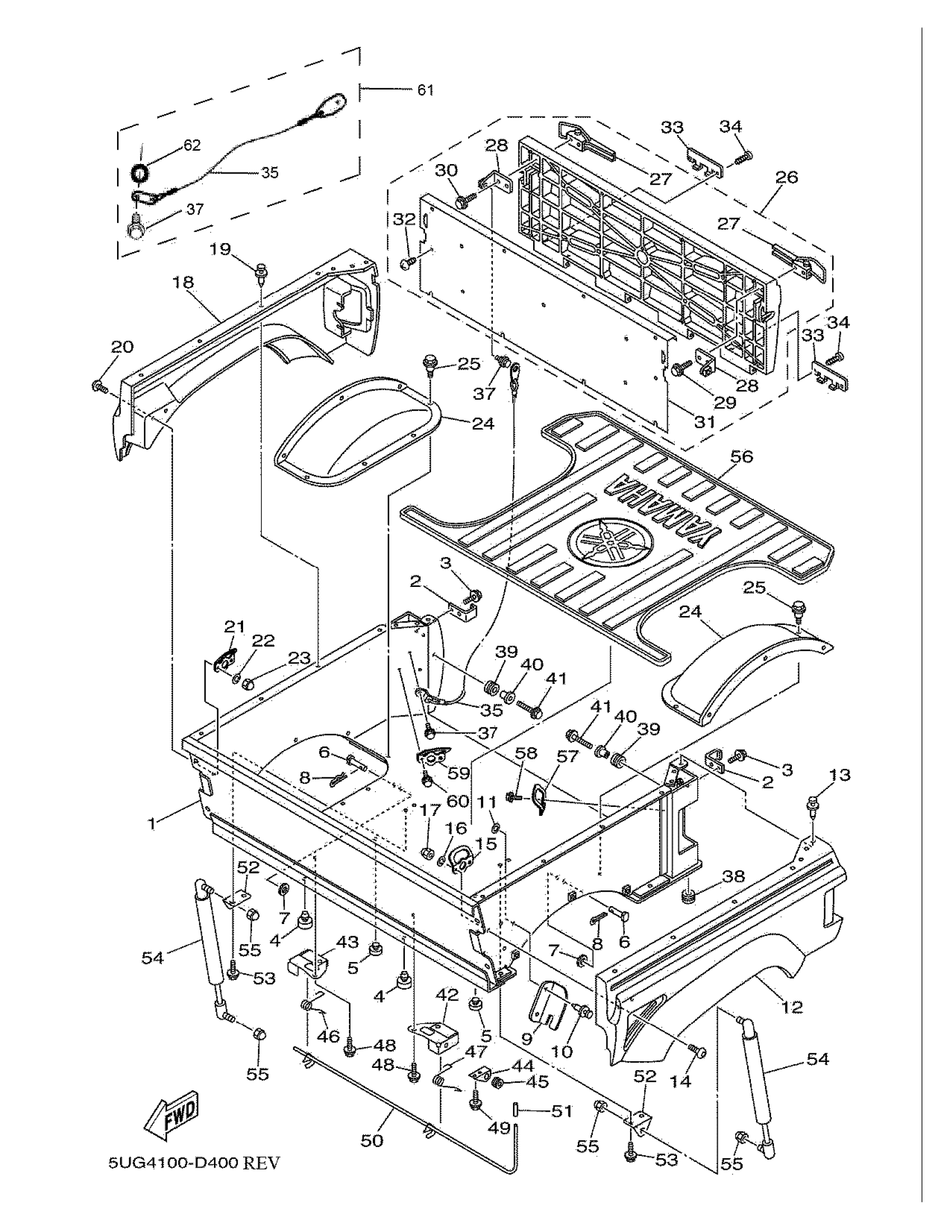

Yamaha YXR660FAT (RHINO) 5UG4 2005 CARRIER Diagram
#
1
CARRIER BOX ASSY KIT
2P5-F4850-02-KT
Unavailable
2
STOPPER, 1
5UG-K7521-01-00
Unavailable
3
BOLT, FLANGE
95817-06016-00
$2.75
4
STOPPER, MAIN STAND
116-27114-00-00
$10.99
5
STOPPER, MAIN STAND
128-27114-00-00
$7.99
6
PIN, CLEVIS
90240-12002-00
$11.49
7
WASHER, PLATE(55K)
90201-127J6-00
$8.49
8
PIN, COTTER
91401-30025-00
$8.49
9
GUARD, LEVER
5UG-F6123-00-00
Unavailable
10
RIVET
90269-06800-00
$2.18
11
WASHER, PLATE
90201-068G6-00
Unavailable
12
PANEL, REAR FENDER 1
5UG-K8191-00-00
Unavailable
13
RIVET
90269-06800-00
$2.18
14
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
$8.49
15
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
$15.49
16
WASHER, SPRING
92907-06100-00
Unavailable
17
NUT(4MY)
95307-06800-00
Unavailable
18
PANEL, REAR FENDR(GREEN RIGHT)
5UG-K8192-10-00
Unavailable
19
RIVET
90269-06800-00
$2.18
20
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
$8.49
21
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
$15.49
22
WASHER, SPRING
92907-06100-00
Unavailable
23
NUT(4MY)
95307-06800-00
Unavailable
24
GUARD, MUD
5UG-F152R-01-00
Unavailable
25
BOLT
90109-06072-00
Unavailable
26
REAR STORAGE LID C
5UG-K810N-21-00
Unavailable
27
LATCH
5UG-F389E-00-00
Unavailable
28
BRACKET,TRUNK STOP
5UG-F849R-00-00
Unavailable
29
BOLT, FLANGE
95817-06025-00
Unavailable
30
BOLT, FLANGE
95817-06025-00
Unavailable
31
. CASE
5UG-K8365-00-00
Unavailable
32
SCREW, TAPPING(53L)
90167-05030-00
Unavailable
33
COVER, HINGE
5UG-F4669-00-00
Unavailable
34
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
35
HOLDER, CABLE
5UG-K7195-10-00
Unavailable
37
BOLT
90109-06183-00
Unavailable
38
GROMMET(2GH)
90480-12475-00
Unavailable
39
GROMMET (4V1)
90480-18290-00
Unavailable
40
COLLAR (36R)
90387-066J1-00
Unavailable
41
BOLT, FLANGE
95817-06025-00
Unavailable
42
PLATE 1
5UG-K7185-00-00
Unavailable
43
PLATE 2
5UG-K7186-00-00
Unavailable
44
HOLDER, LATCH
5UG-K7175-10-00
Unavailable
45
GROMMET (5H0)
90480-10297-00
Unavailable
46
SPRING, TORSION
90508-18840-00
Unavailable
47
SPRING, TORSION
90508-18841-00
Unavailable
48
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
49
BOLT, FLANGE
95817-06016-00
$2.75
50
LATCH ASSY
5UG-K7180-00-00
Unavailable
51
CAP, PROTECTOR END 4
JJ3-K818M-00-00
Unavailable
52
BRACKET, DAMPER
5UG-F1798-10-00
Unavailable
53
BOLT, FLANGE
95817-06016-00
$2.75
54
DAMPER 1
5UG-F8415-00-00
Unavailable
55
NUT, SELF-LOCKING
90185-08169-00
Unavailable
56
MAT
5UG-F483J-00-00
Unavailable
57
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
$15.49
58
BOLT, FLANGE
95817-06016-00
$2.75
59
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
$15.49
60
BOLT, FLANGE
95817-06016-00
$2.75
61
HOLDER, CABLE KIT
5UG-K7195-10-KT
Unavailable
62
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
