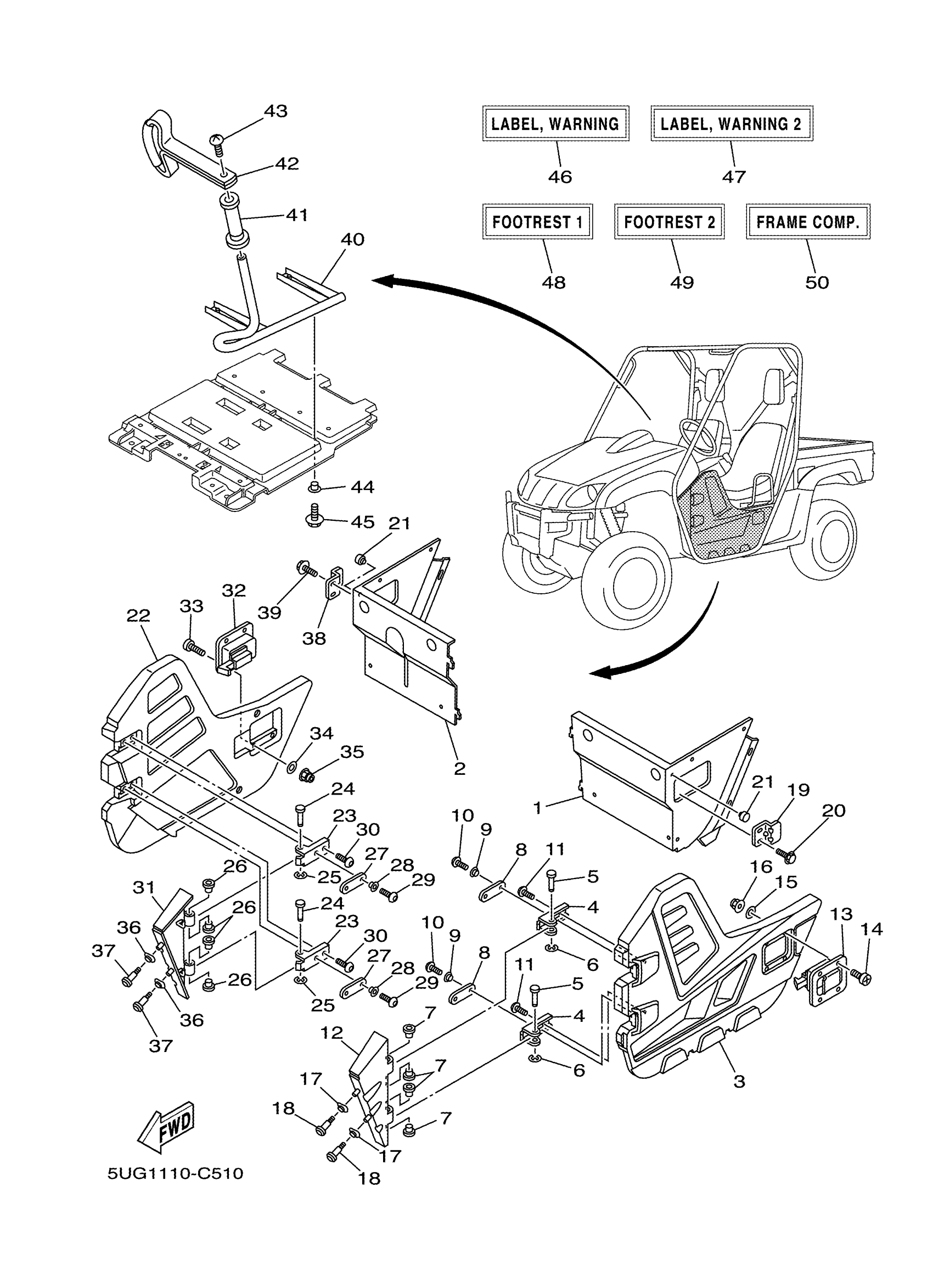

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 WITH DOORS Diagram
#
1
SUPPORT, SIDE PANEL
5UG-F254J-11-00
Unavailable
2
SUPPORT, SIDE PANEL 2
5UG-F254K-11-00
Unavailable
3
COVER, SIDE 1
5B4-F2864-00-00
Unavailable
4
HINGE
5B4-F1797-00-00
$4.99
5
PIN 1
5B4-F146A-00-00
$8.49
6
CLIP
5B4-F3447-00-00
$1.82
7
BUSH, RUBBER 1
2P5-K7515-00-00
$1.16
8
BAND, RUBBER
5B4-F2929-01-00
$4.14
9
COLLAR
90387-06089-00
$8.49
10
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
11
BOLT 2
5B4-F1722-00-00
$6.99
12
HINGE 1
5B4-F197J-00-00
Unavailable
13
HANDLE, LATCH
5B4-F389F-00-00
Unavailable
14
SCREW, BINDING
98907-05020-00
$8.49
15
WASHER, PLATE
90201-05039-00
$8.49
16
NUT, S/L FLANGE
95607-05200-00
Unavailable
17
WASHER 2
5UG-K7526-00-00
Unavailable
18
BOLT
5B4-K7519-00-00
Unavailable
19
LATCH
5B4-F389E-00-00
Unavailable
20
BOLT
5B4-F1738-00-00
Unavailable
21
PAD, BATTERY
5TG-82121-10-00
Unavailable
22
COVER, SIDE 2
5B4-F2868-00-00
Unavailable
23
HINGE
5B4-F1797-00-00
$4.99
24
PIN 1
5B4-F146A-00-00
$8.49
25
CLIP
5B4-F3447-00-00
$1.82
26
BUSH, RUBBER 1
2P5-K7515-00-00
$1.16
27
BAND, RUBBER
5B4-F2929-01-00
$4.14
28
COLLAR
90387-06089-00
$8.49
29
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
30
BOLT 2
5B4-F1722-00-00
$6.99
31
HINGE 2
5B4-F197K-00-00
Unavailable
32
HANDLE, LATCH
5B4-F389F-00-00
Unavailable
33
SCREW, BINDING
98907-05020-00
$8.49
34
WASHER, PLATE
90201-05039-00
$8.49
35
NUT, S/L FLANGE
95607-05200-00
Unavailable
36
WASHER 2
5UG-K7526-00-00
Unavailable
37
BOLT
5B4-K7519-00-00
Unavailable
38
LATCH
5B4-F389E-00-00
Unavailable
39
BOLT
5B4-F1738-00-00
Unavailable
40
ASSIST, GRIP
5B4-F474A-00-00
Unavailable
41
GRIP
5B4-F6241-00-00
Unavailable
42
HANDLE, SEAT
5B4-F4773-00-00
Unavailable
43
SCREW, BINDING
98907-06020-00
Unavailable
44
COLLAR
90387-06210-00
Unavailable
45
BOLT, FLANGE
90105-06831-00
Unavailable
46
LABEL, WARNING
5B4-F1568-01-00
Unavailable
47
LABEL, WARNING 2
5B4-F1558-00-00
Unavailable
48
FOOTREST 1
5UG-F7411-12-00
Unavailable
49
FOOTREST 2
5UG-F7421-12-00
Unavailable
50
FRAME COMP.
5UG-F1110-19-00
Unavailable
