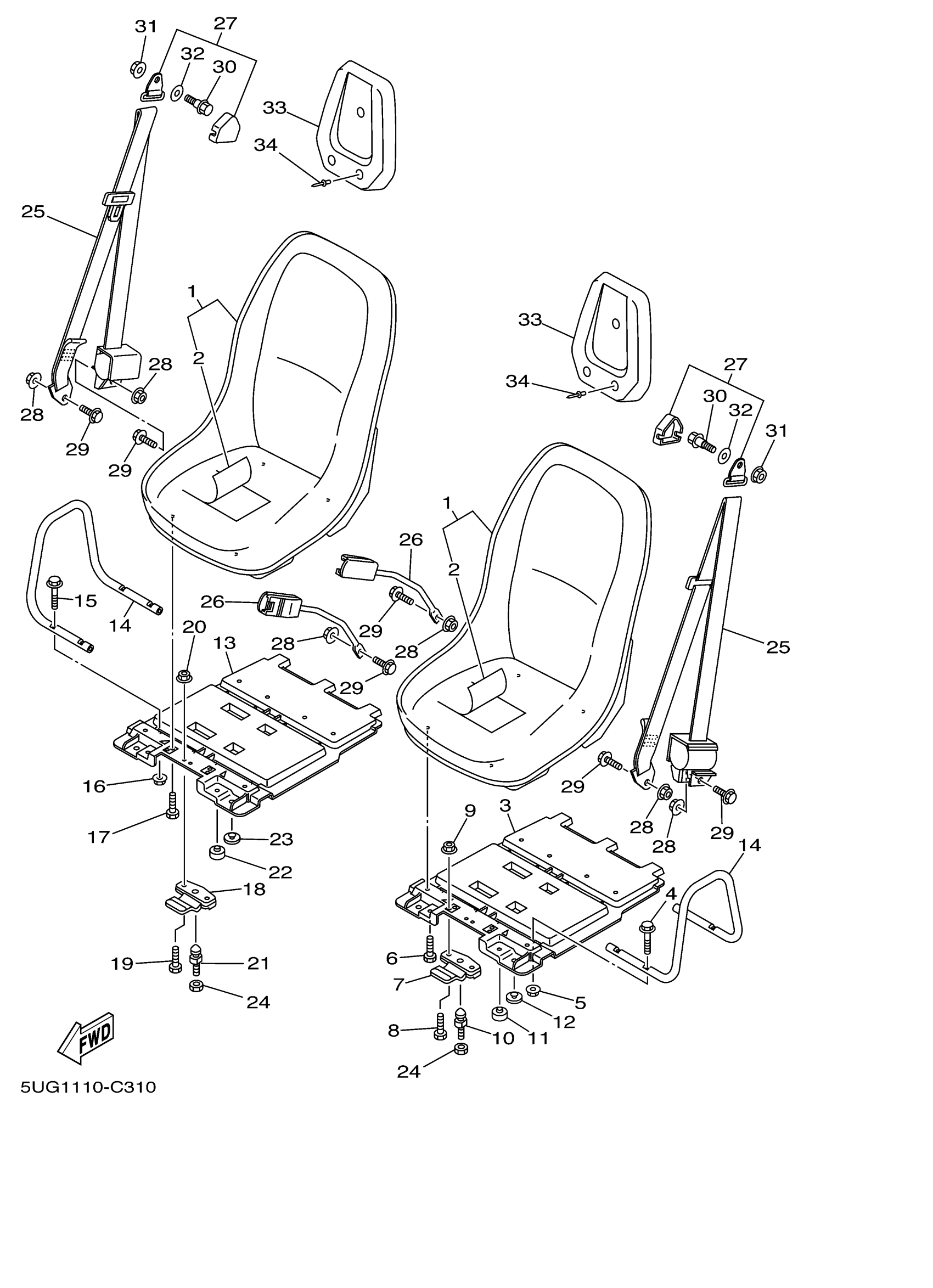

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 SEAT Diagram
#
1
SINGLE SEAT ASSY
5UG-F4710-01-00
Unavailable
2
. SEAT COVER COMP
5UG-F470F-00-00
Unavailable
3
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
4
BOLT, FLANGE
95819-08030-00
Unavailable
5
NUT, SELF-LOCKING
95602-08200-00
$3.20
6
BOLT, FLANGE
9582P-08020-00
Unavailable
7
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
8
BOLT, FLANGE
95817-06040-00
$5.60
9
NUT, U FLANGE
95604-06200-00
$8.49
10
PIN
GH1-U3774-00-00
Unavailable
11
DAMPER, SEAT
4XE-F4747-00-00
$30.99
12
PAD, BATTERY
371-82121-00-00
$8.99
13
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
14
ASSIST,GRIP 2
2P5-F474W-00-00
Unavailable
15
BOLT, FLANGE
95812-08030-00
$3.81
16
NUT, SELF-LOCKING
95602-08200-00
$3.20
17
BOLT, FLANGE
9582P-08020-00
Unavailable
18
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
19
BOLT, FLANGE
95817-06040-00
$5.60
20
NUT, U FLANGE
95604-06200-00
$8.49
21
PIN
GH1-U3774-00-00
Unavailable
22
DAMPER, SEAT
4XE-F4747-00-00
$30.99
23
PAD, BATTERY
371-82121-00-00
$8.99
24
NUT, SELF-LOCKING
90185-10012-00
Unavailable
25
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
26
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
27
COVER
5UG-F4796-00-00
Unavailable
28
NUT, SELF-LOCKING(3KJ)
90185-10154-00
Unavailable
29
BOLT, FLANGE
90105-10845-00
Unavailable
30
BOLT, SPECIAL
5UG-F3394-00-00
Unavailable
31
SPEED NUT
5UG-F4735-01-00
Unavailable
32
WASHER, PLATE
90201-11801-00
Unavailable
33
HEAD REST
5UG-F472L-00-00
Unavailable
34
RIVET, BLIND
90267-48820-00
Unavailable
