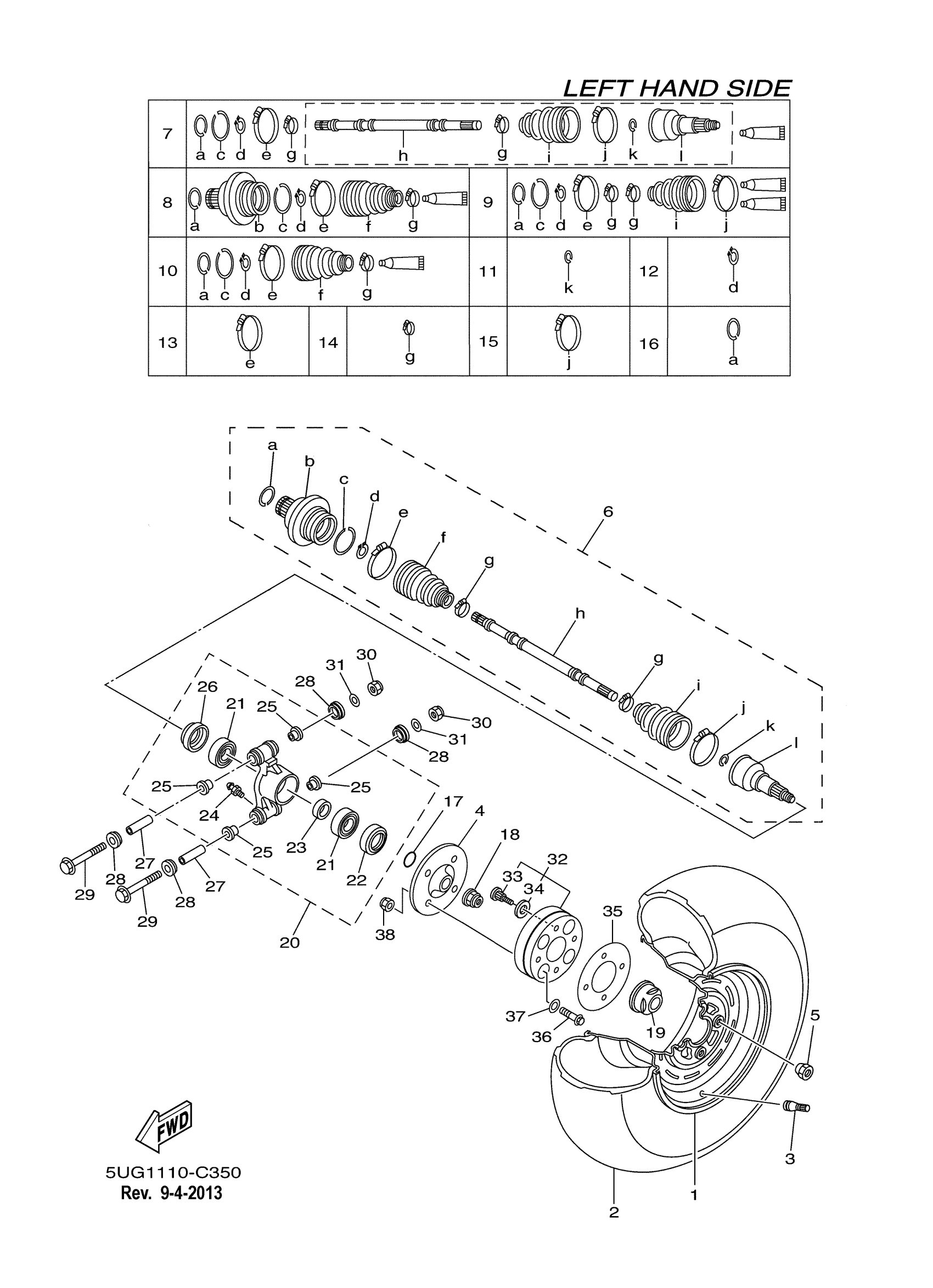

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 REAR WHEEL LEFT Diagram

#

Description
Price

1

REAR WHEEL COMP.

5UG-F5390-00-00

Unavailable

2

TIRE (25X10-12 NHS)

94110-12802-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

HUB ASSY

5UG-F5310-00-00

Unavailable

5

NUT(2HR)

90179-10540-00

$5.60

6

REAR DRIVE SHAFT ASSY LH

5UG-F531H-01-00

Unavailable

7

BALL JOINT SET (LEFT REAR)

5UG-F530T-01-00

Unavailable

8

DOUBLE OFF SET JOINT

5KM-2530V-12-00

Unavailable

9

BOOT SET (BALL JOINT)

5KM-2530X-12-00

$66.99

10

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2530Y-11-00

$60.99

11

CIRCLIP

4KB-2512H-00-00

$6.99

12

SNAP RING

2HR-2512J-00-00

$6.99

13

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

14

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

15

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

16

CLIP, SPRING

5KM-2536E-10-00

Unavailable

17

O-RING(47X)

93210-27666-00

Unavailable

18

NUT

90179-20016-00

Unavailable

19

CAP, WHEEL

5UG-F512A-00-00

Unavailable

20

REAR KNUCKLE ASSY

5UG-F530F-11-00

Unavailable

21

BEARING

93306-206Y2-00

Unavailable

22

. OIL SEAL

93106-38801-00

Unavailable

23

SPACER(2HR)

90560-30325-00

Unavailable

24

NIPPLE, GREASE

93700-06M03-00

Unavailable

25

BUSH, SOLID(2NL)

90381-17067-00

Unavailable

26

OIL SEAL

93106-38800-00

Unavailable

27

SPACER

5KM-23448-00-00

Unavailable

28

COVER, THRUST 1

3JN-23517-00-00

Unavailable

29

BOLT, FLANGE

90105-10843-00

Unavailable

30

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

31

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

32

SPACER ASSY

42S-F53W0-00-00

Unavailable

33

BOLT, SERRATION

90114-10013-00

Unavailable

34

WASHER, PLATE

90201-12034-00

Unavailable

35

PLATE 1

5UG-2539F-00-00

Unavailable

36

BOLT, FLANGE

90105-12062-00

Unavailable

37

WASHER, PLATE

90201-14020-00

Unavailable

38

NUT, SELF-LOCKING

90185-12007-00

Unavailable
