- YXR660FAS (RHINO 660) 5UG1 2004
RADIATOR HOSE

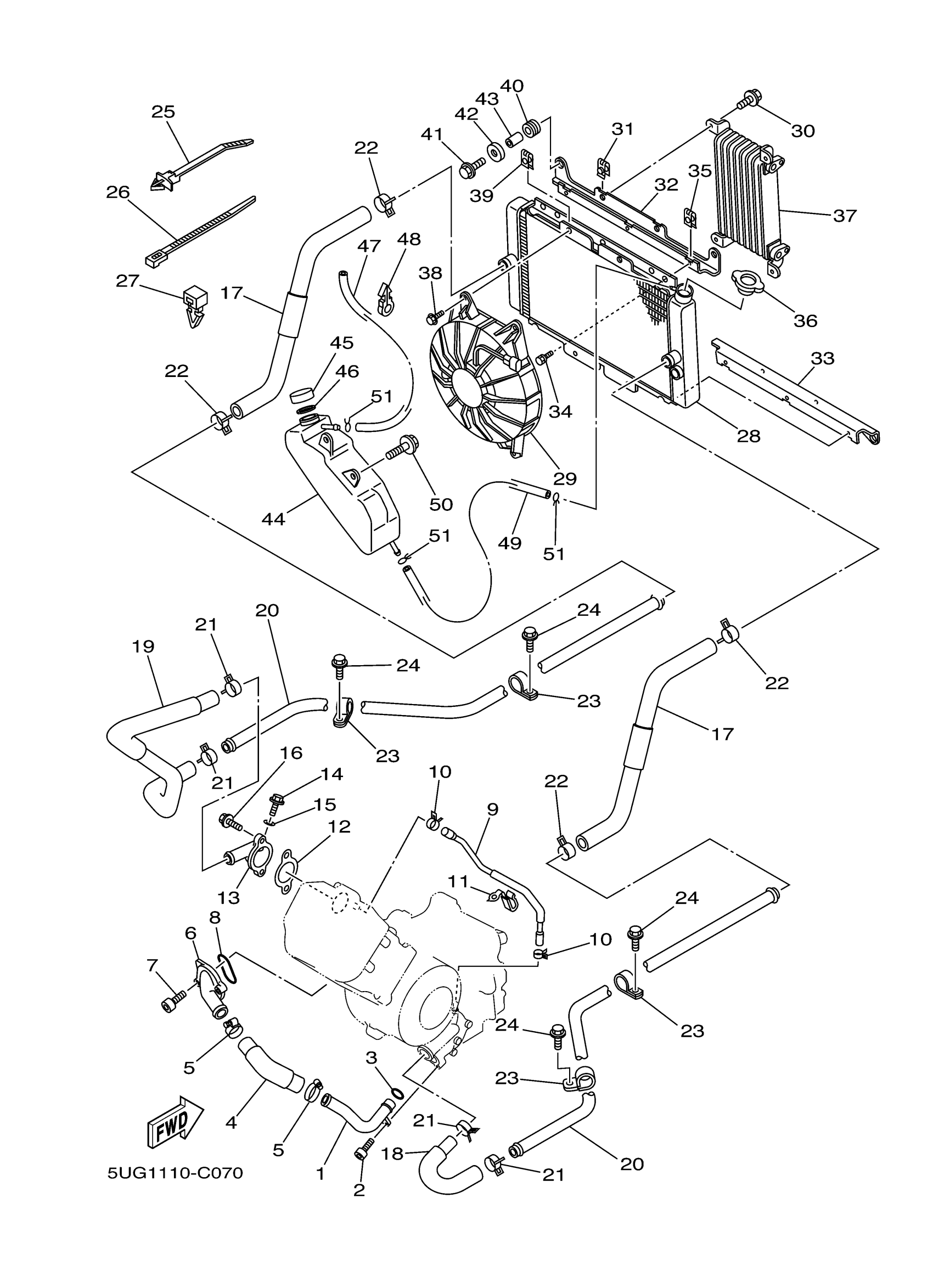

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 RADIATOR HOSE Diagram
#
1
PIPE 1
5KM-12481-00-00
$59.99
2
BOLT,SOCKET
91317-06010-00
$9.49
3
O-RING
93210-21190-00
$7.49
4
HOSE 2
5KM-12577-00-00
$37.99
5
HOSE CLAMP ASSY
90450-32015-00
$17.99
6
JOINT 1
5KM-12469-00-00
$56.99
7
BOLT,SOCKET
91317-06020-00
Unavailable
8
O-RING
93210-33006-00
$4.72
9
HOSE 4
5KM-12579-00-00
Unavailable
10
CLIP
90467-10038-00
$1.54
11
CLAMP
90462-08008-00
Unavailable
12
GASKET
5KM-12434-10-00
$8.99
13
COVER, THERMOSTAT
5UG-12413-00-00
Unavailable
14
PLUG, WATER CHECK (383)
90338-06041-00
Unavailable
15
GASKET 256113960000
90430-06014-00
Unavailable
16
. BOLT, FLANGE
95027-06020-00
Unavailable
17
HOSE 1
5UG-E2576-00-00
Unavailable
18
HOSE 2
5UG-E2577-00-00
Unavailable
19
HOSE,4
5UG-E2579-01-00
Unavailable
20
PIPE, WATER
5UG-E2564-00-00
Unavailable
21
HOSE CLAMP ASSY
90450-32015-00
$17.99
22
CLIP
90467-26189-00
Unavailable
23
CLAMP
90461-12800-00
Unavailable
24
BOLT, FLANGE
95817-06016-00
Unavailable
25
CLAMP
90464-25800-00
Unavailable
26
CLAMP
90464-65800-00
Unavailable
27
HOLDER
5UG-F2465-00-00
Unavailable
28
RADIATOR ASSY
5UG-E2461-00-00
Unavailable
29
BLOWER ASSY
5UG-E2405-00-00
Unavailable
30
BOLT, BLOWER HOLDI
5ND-E2675-00-00
Unavailable
31
PLATE
5ND-E2535-00-00
Unavailable
32
BRACKET 1
5UG-E244E-01-00
Unavailable
33
BRACKET 2
5UG-E244F-00-00
Unavailable
34
BOLT
5UG-E2623-00-00
Unavailable
35
PLATE
5ND-E2535-00-00
Unavailable
36
CAP, RADIATOR
5ND-E2462-00-00
Unavailable
37
OIL COOLER ASSY
5UG-E3470-00-00
Unavailable
38
BOLT, BLOWER HOLDI
5ND-E2675-00-00
Unavailable
39
PLATE
5ND-E2535-00-00
Unavailable
40
GROMMET(2GH)
90480-12475-00
Unavailable
41
BOLT, FLANGE
95817-06020-00
Unavailable
42
WASHER
90209-06012-00
Unavailable
43
COLLAR
90387-06113-00
Unavailable
44
TANK, RECOVERY
5GS-21871-00-00
Unavailable
45
CAP
26H-21875-00-00
Unavailable
46
GASKET
26H-21874-00-00
Unavailable
47
HOSE
90445-08811-00
Unavailable
48
CLAMP
90464-12830-00
Unavailable
49
HOSE
90445-08809-00
Unavailable
50
BOLT, WITH WASHER
90119-06226-00
Unavailable
51
CLIP 101235600
90467-08003-00
Unavailable
