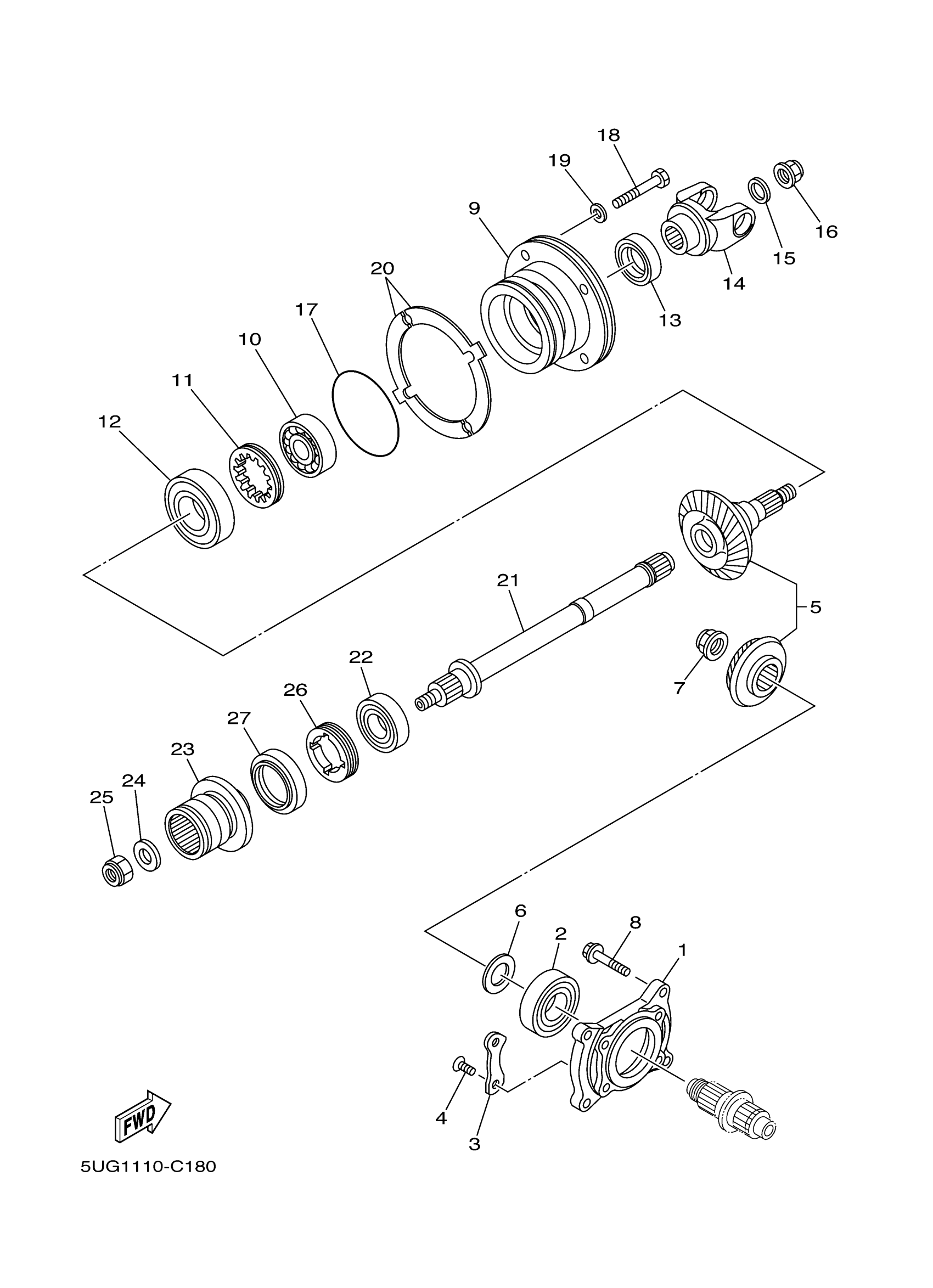

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

5KM-17521-00-00

Unavailable

2

BEARING(3RR)

93306-30560-00

Unavailable

3

PLATE, BEARING COVER

11H-15383-02-00

$14.49

4

SCREW

90149-08013-00

$8.49

5

MIDDLE GEAR COMP.

5KM-Y1754-20-00

Unavailable

6

SHIM, PINION (0.1T)

5KM-17531-00-00

$6.99

6

SHIM, PINION (0.15T)

5KM-17531-10-00

$2.55

6

SHIM, PINION (0.2T)

5KM-17531-20-00

$3.90

6

SHIM, PINION (0.3T)

5KM-17531-30-00

Unavailable

6

SHIM, PINION (0.4T)

5KM-17531-40-00

Unavailable

6

SHIM, PINION (0.5T)

5KM-17531-50-00

$7.99

7

NUT

90179-22015-00

$29.99

8

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

9

HOUSING, BEARING

5KM-17551-10-00

Unavailable

10

BEARING(1LX)

93306-37204-00

$47.99

11

NUT

90179-60001-00

Unavailable

12

BEARING (8U9)

93306-20712-00

Unavailable

13

OIL SEAL(76K)

93102-30339-00

Unavailable

14

YOKE, JOINT

5UG-17556-00-00

Unavailable

15

WASHER, PLATE

90201-16021-00

Unavailable

16

NUT(3JP)

90179-16661-00

Unavailable

17

O-RING (14X)

93210-78544-00

Unavailable

18

BOLT, HEXAGON

97017-08030-00

Unavailable

19

WASHER(6TA)

92907-08600-00

Unavailable

20

SHIM, PINION

4KB-17531-00-00

Unavailable

20

SHIM, PINION

4KB-17531-10-00

Unavailable

20

SHIM, PINION

4KB-17531-20-00

Unavailable

20

SHIM, PINION

4KB-17531-30-00

Unavailable

20

SHIM, PINION

4KB-17531-40-00

Unavailable

20

SHIM, PINION

4KB-17531-50-00

Unavailable

20

SHIM, PINION

4KB-17531-60-00

Unavailable

21

SHAFT, 1

5KM-1761A-10-00

Unavailable

22

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

23

FLANGE, COUPLING 1

5UG-45593-00-00

Unavailable

24

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

25

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

26

NUT(4KB)

90179-55660-00

Unavailable

27

OIL SEAL(2NL)

93102-44454-00

Unavailable
