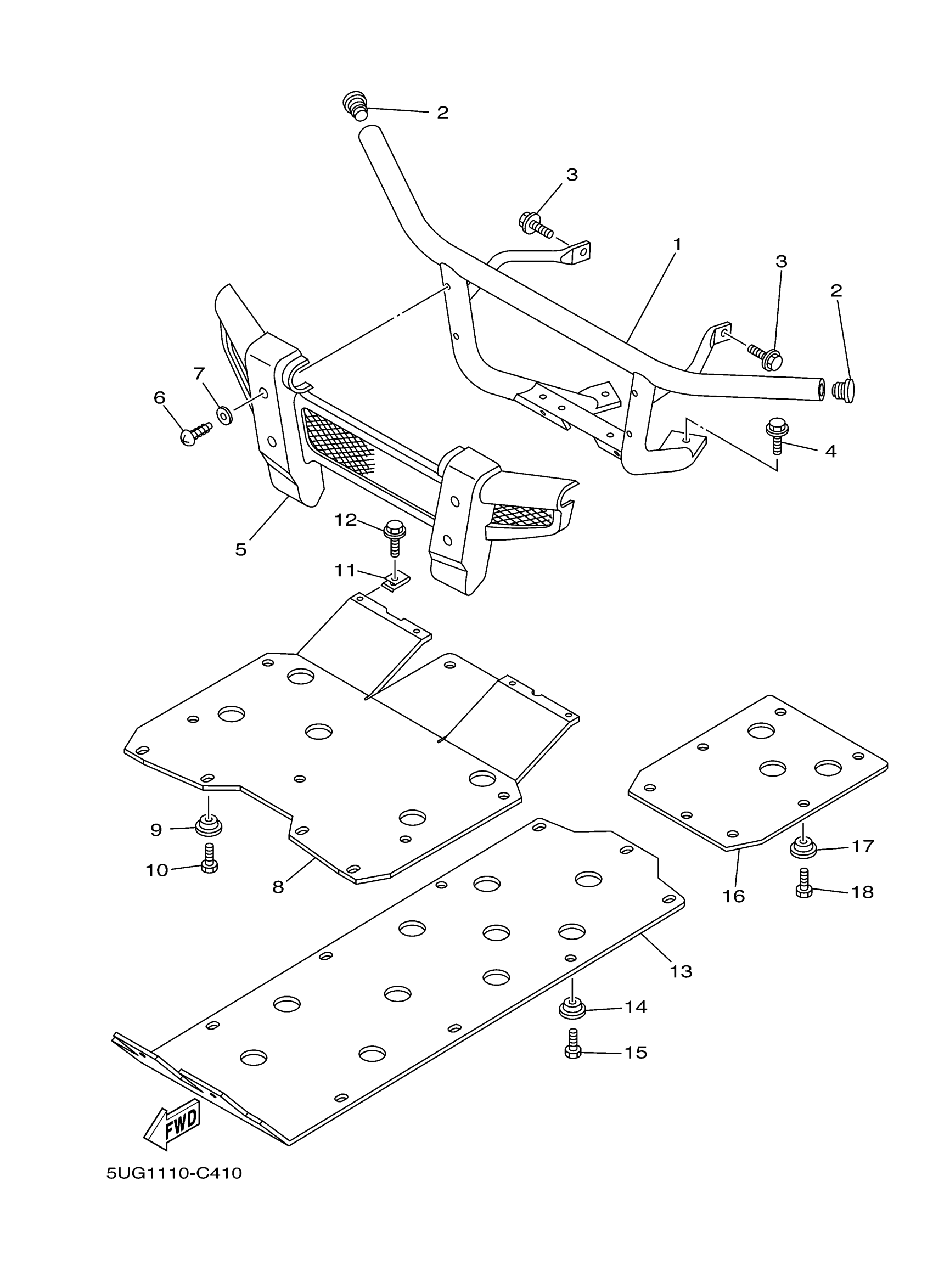

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT, WRINKLE BLK

1RB-F845N-00-00

Unavailable

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$4.96

3

BOLT, FLANGE

95817-10020-00

$4.89

4

BOLT, FLANGE

9581P-12025-00

Unavailable

5

COVER 5

5UG-F842A-00-00

$40.00

6

BOLT, FLANGE

95817-06016-00

$1.40

7

WASHER, PLATE

90201-06055-00

$2.75

8

GUARD, ENGINE 2

5UG-F147E-01-00

Unavailable

9

SPACER

5UG-F8329-01-00

$5.42

10

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

11

NUT, SPRING

90183-06057-00

$4.12

12

BOLT, FLANGE

95817-06016-00

$1.40

13

COVER, LOWER

5UG-F8385-01-00

Unavailable

14

SPACER

5UG-F8329-01-00

$5.42

15

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

16

COVER,UNDER 2

5UG-F8395-01-00

$83.99

17

SPACER

5UG-F8329-01-00

$5.42

18

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93
