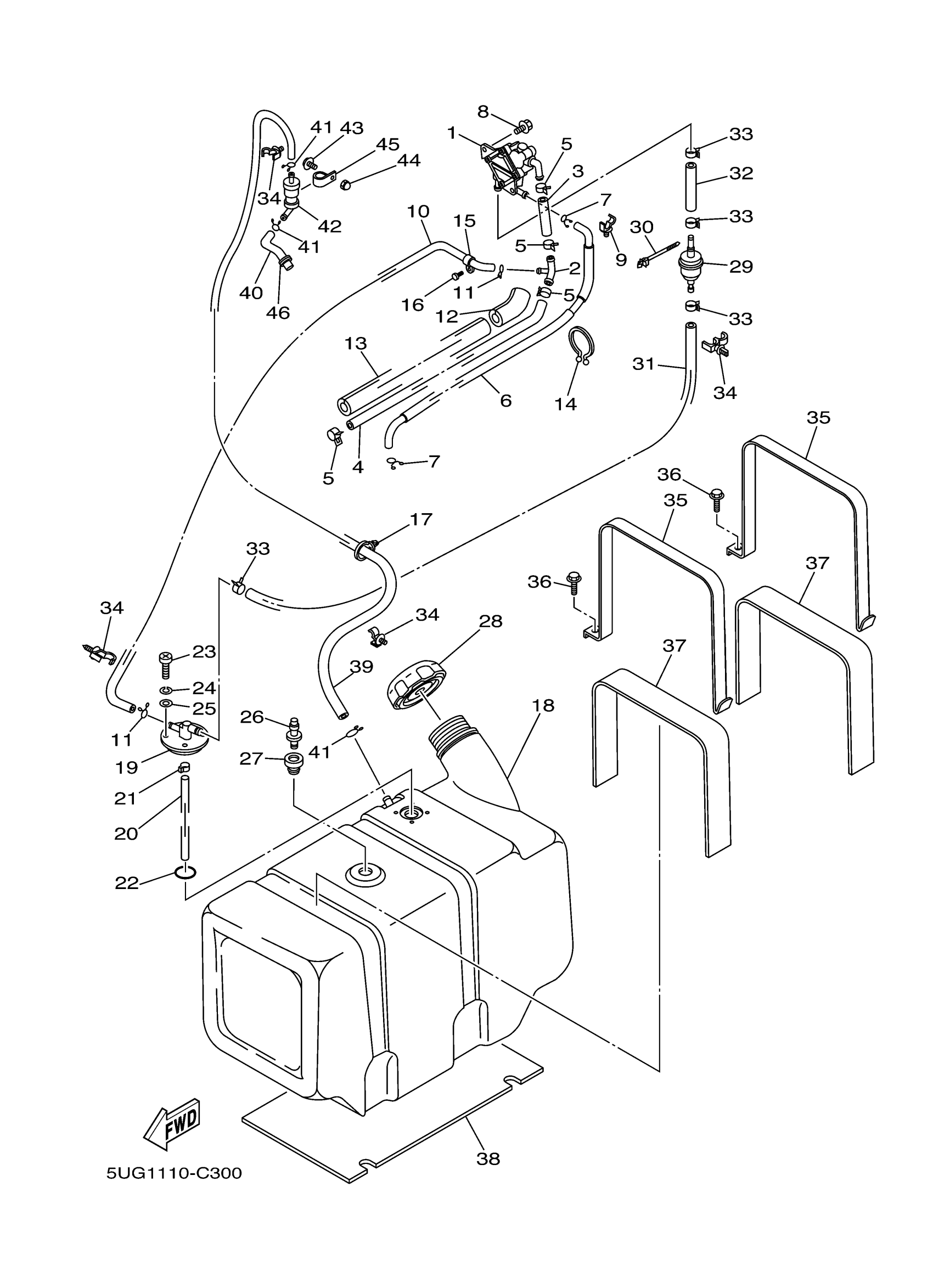

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 FUEL TANK Diagram
#
1
FUEL PUMP ASSY
5UG-13910-01-00
$122.99
2
WAY 3
90413-09001-00
Unavailable
3
HOSE
5UG-14294-00-00
$7.99
4
PIPE, FUEL
5UG-14295-00-00
$15.49
5
CLIP (7K7)
90467-11044-00
$8.49
6
HOSE, AIR
5UG-E3895-00-00
Unavailable
7
CLIP
90467-100A1-00
$7.49
8
BOLT, WASHER BASED(JA9)
90105-06696-00
$9.49
9
CLAMP
90464-12830-00
$1.49
10
PIPE
5UG-14298-00-00
$20.99
11
CLIP
90467-100A1-00
$7.49
12
INSULATOR
5UG-14271-00-00
$13.49
13
INSULATOR
5UG-14271-50-00
$6.99
14
CLAMP
90464-25267-00
$7.49
15
CLAMP
90464-11803-00
Unavailable
16
PLUG
90338-05834-00
Unavailable
17
CLAMP
90464-19815-00
Unavailable
18
TANK, FUEL
5UG-F4111-01-00
Unavailable
19
PIPE, JOINT
5UG-24461-00-00
Unavailable
20
PIPE
5UG-E4298-10-00
Unavailable
21
CLIP,SCISSOR
90467-07815-00
Unavailable
22
O-RING
93210-228C4-00
Unavailable
23
SCREW, PAN HEAD
98507-05014-00
Unavailable
24
WASHER(3SX)
92907-05100-00
Unavailable
25
WASHER(1RW)
92907-05600-00
Unavailable
26
RELEASE VALVE ASSEMBLY
J24-24460-01-00
Unavailable
27
GROMMET
J10-21773-00-00
Unavailable
28
CAP ASSY
BVG-24610-00-00
Unavailable
29
FILTER ASSY
JN6-F4560-00-00
Unavailable
30
CLAMP
90464-38800-00
Unavailable
31
PIPE, FUEL 1
5UG-F4311-00-00
Unavailable
32
PIPE 3
5UG-F4313-00-00
Unavailable
33
CLIP (7K7)
90467-11044-00
$8.49
34
CLAMP
90464-12830-00
$1.49
35
STAY, FUEL TANK 1
5UG-F4157-00-00
Unavailable
36
BOLT, FLANGE
90105-088B0-00
Unavailable
37
DAMPER, PLATE 1
5UG-F414H-00-00
Unavailable
38
DAMPER, PLATE 2
5UG-F414J-00-00
Unavailable
39
PIPE 2
5UG-F4312-00-00
Unavailable
40
PIPE 4
5UG-F4314-00-00
Unavailable
41
CLIP
90467-100A1-00
$7.49
42
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
43
SCREW, BINDING
98907-05010-00
Unavailable
44
NUT, CROWN(47X)
90176-05054-00
Unavailable
45
CLAMP
90464-15014-00
Unavailable
46
GROMMET (1E6)
90480-15058-00
Unavailable
