- YXR660FAS (RHINO 660) 5UG1 2004
FRONT WHEEL RIGHT

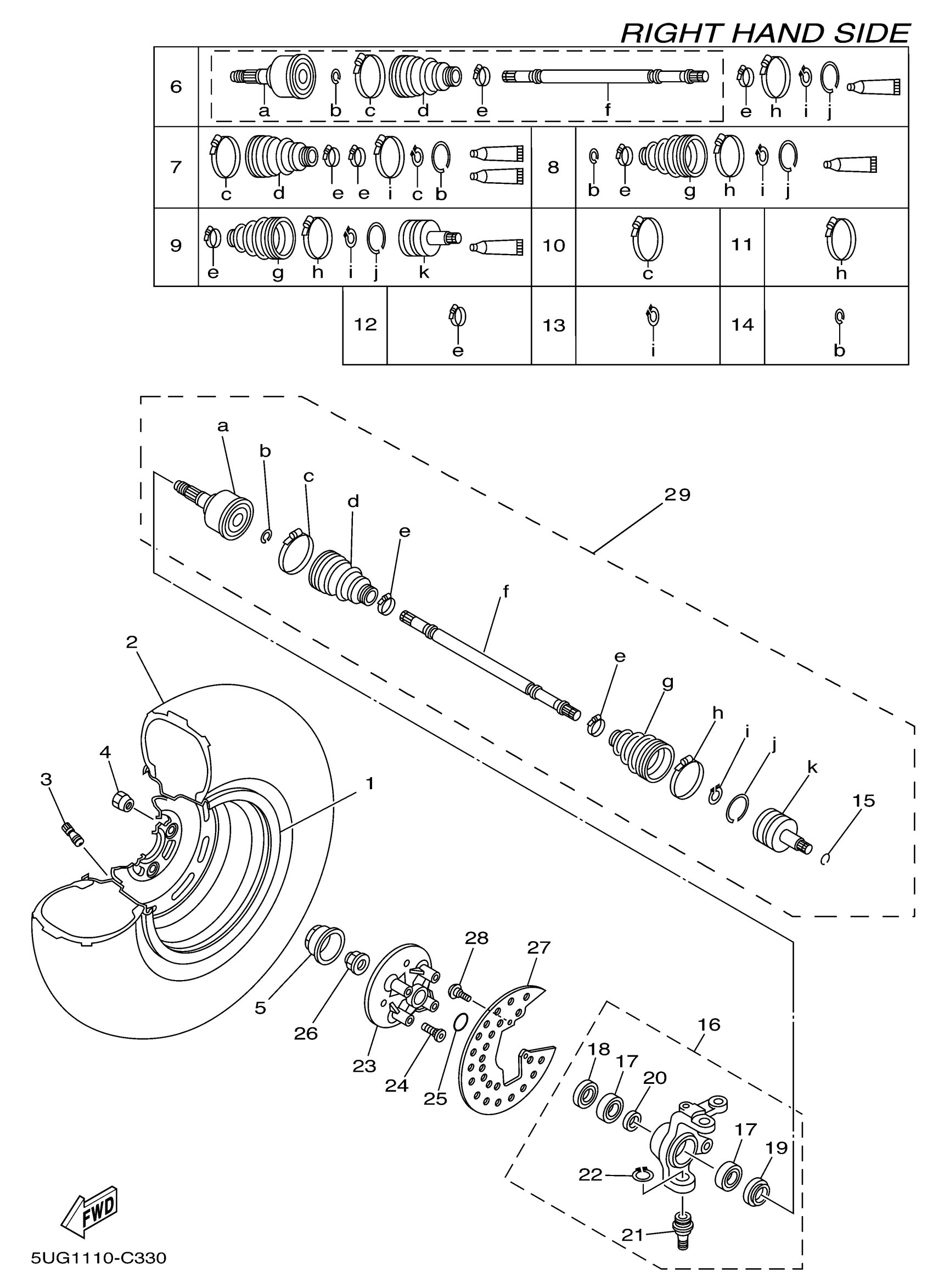

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 FRONT WHEEL RIGHT Diagram
#
1
WHEEL COMP.
5UG-F5180-00-00
Unavailable
2
TIRE (25X8-12 NHS)
94108-12804-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
NUT(2HR)
90179-10540-00
$5.60
5
CAP, WHEEL
5UG-F512A-00-00
Unavailable
6
BALL JOINT SET
5UG-F510F-00-00
Unavailable
7
BOOT SET (BALL JOINT)
5UG-F510G-00-00
Unavailable
8
BOOT SET (DOUBLE OFFSET JOINT)
5KM-2510H-10-00
$68.99
9
DOUBLE OFF SET JOINT
5KM-2510J-30-00
Unavailable
10
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
$17.49
11
. BOOT BAND(DOUBLE OFFSETJOINT)
5UG-F511H-00-00
Unavailable
12
BOOT BAND (SMALL)
3HN-2512G-01-00
$11.99
13
SNAP RING
2HR-2512J-00-00
$6.99
14
CIRCLIP
4KB-2512H-00-00
$6.99
15
CIRCLIP(2HR)
93450-22119-00
$8.49
16
STEERING,KNUCKLE (R)
5UG-F3502-12-00
Unavailable
17
BEARING
93306-006Y4-00
Unavailable
18
OIL SEAL
93106-38046-00
Unavailable
19
OIL SEAL
93106-38047-00
Unavailable
20
SPACER(2HR)
90560-30325-00
Unavailable
21
BALL JOINT 1
37S-23549-01-00
Unavailable
22
CIRCLIP
93410-32075-00
Unavailable
23
HUB, FRONT
5UG-F5111-10-00
Unavailable
24
BOLT, SERRATION
90114-10802-00
Unavailable
25
O-RING(47X)
93210-27666-00
Unavailable
26
NUT
90179-20016-00
Unavailable
27
RING, WHEEL 1
5UG-F514A-00-00
Unavailable
28
SCREW(3LD)
90149-06280-00
Unavailable
29
DRIVE SHAFT ASSY (RIGHT FRONT)
5UG-F518G-10-00
Unavailable
