Description

Price

1

WHEEL COMP.

5UG-F5180-00-00

Unavailable

2

TIRE (25X8-12 NHS)

94108-12804-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT(2HR)

90179-10540-00

$5.60

5

CAP, WHEEL

5UG-F512A-00-00

Unavailable

6

BALL JOINT SET

5UG-F510F-00-00

Unavailable

7

BOOT SET (BALL JOINT)

5UG-F510G-00-00

Unavailable

8

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2510H-10-00

$68.99

9

DOUBLE OFF SET JOINT

5KM-2510J-20-00

Unavailable

10

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

11

. BOOT BAND(DOUBLE OFFSETJOINT)

5UG-F511H-00-00

Unavailable

12

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

13

SNAP RING

2HR-2512J-00-00

$6.99

14

CIRCLIP

4KB-2512H-00-00

$6.99

15

CLIP, DRIVE SHAFT

5KM-45531-10-00

$7.99

16

STEERING KNUCKLE (L)

5UG-F3501-12-00

Unavailable

17

BEARING

93306-006Y4-00

Unavailable

18

OIL SEAL

93106-38046-00

Unavailable

19

OIL SEAL

93106-38047-00

Unavailable

20

SPACER(2HR)

90560-30325-00

Unavailable

21

BALL JOINT 1

37S-23549-01-00

Unavailable

22

CIRCLIP

93410-32075-00

Unavailable

23

HUB, FRONT

5UG-F5111-10-00

Unavailable

24

BOLT, SERRATION

90114-10802-00

Unavailable

25

O-RING(47X)

93210-27666-00

Unavailable

26

NUT

90179-20016-00

Unavailable

27

RING, WHEEL 1

5UG-F514A-00-00

Unavailable

28

SCREW(3LD)

90149-06280-00

Unavailable

29

DRIVE SHAFT ASSY (LEFT FRONT)

5UG-F518F-10-00

Unavailable

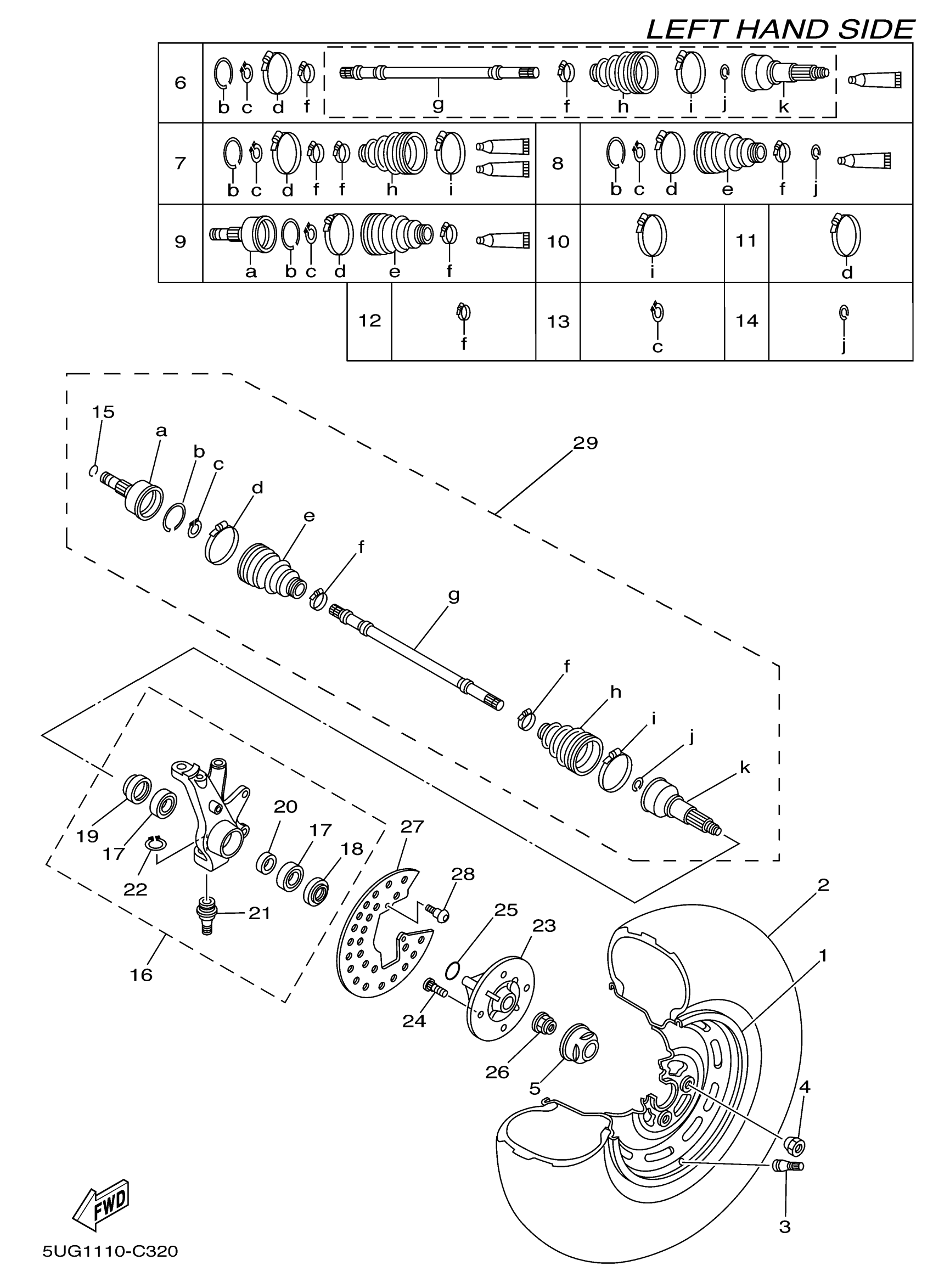

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 FRONT WHEEL LEFT Diagram

WHEEL COMP.

TIRE (25X8-12 NHS)

VALVE, RIM

NUT(2HR)

CAP, WHEEL

BALL JOINT SET

BOOT SET (BALL JOINT)

BOOT SET (DOUBLE OFFSET JOINT)

DOUBLE OFF SET JOINT

BOOT BAND (BALL JOINT)

. BOOT BAND(DOUBLE OFFSETJOINT)

BOOT BAND (SMALL)

SNAP RING

CIRCLIP

CLIP, DRIVE SHAFT

STEERING KNUCKLE (L)

BEARING

OIL SEAL

OIL SEAL

SPACER(2HR)

BALL JOINT 1

CIRCLIP

HUB, FRONT

BOLT, SERRATION

O-RING(47X)

NUT

RING, WHEEL 1

SCREW(3LD)

DRIVE SHAFT ASSY (LEFT FRONT)
