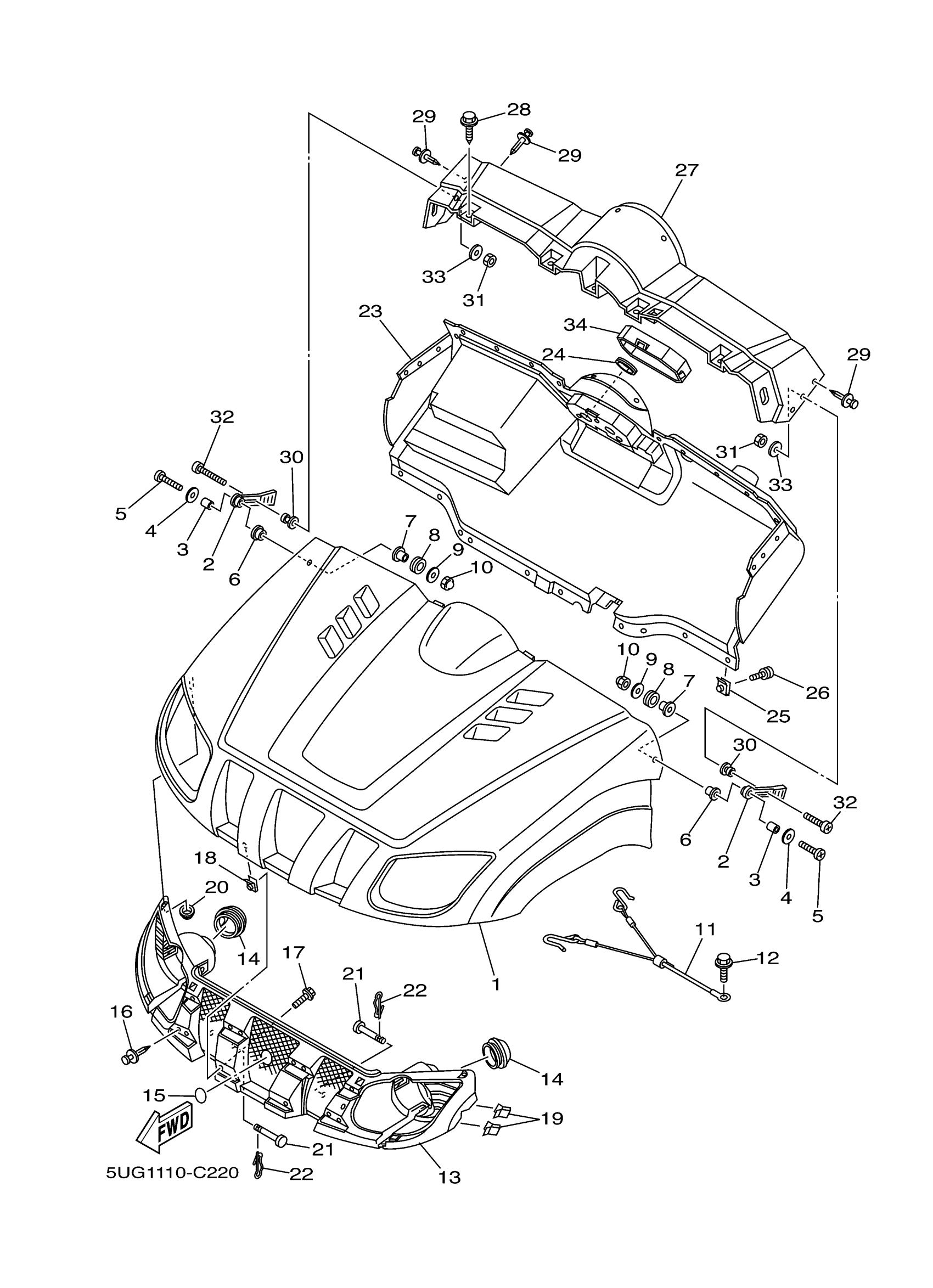

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5UG-F1511-10-00

$284.92

2

BODY, LATCH 1

8V0-77171-00-00

$17.15

3

COLLAR (420)

90387-06241-00

$5.76

4

WASHER, PLATE

90201-06078-00

$5.11

5

SCREW, BINDING

98907-06035-00

$6.98

6

C0LLAR

90387-062M9-00

$6.17

7

COLLAR (6G1)

90387-06M52-00

$6.05

8

GROMMET(2GH)

90480-12475-00

$6.22

9

WASHER, PLATE

90201-06078-00

$5.11

10

NUT(4MY)

95307-06800-00

$2.67

11

STOPPER, OPEN

5UG-F845L-00-00

Unavailable

12

BOLT, FLANGE

95817-08012-00

$3.71

13

GRILL, FRONT

5UG-F8309-01-00

$264.64

14

CAP

5GH-28349-00-00

$7.27

15

TUNING FORK MARK

5FU-F175B-01-00

$12.25

16

RIVET

90269-06804-00

Unavailable

17

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

18

NUT, SPRING

90183-050A0-00

Unavailable

19

CLIP

5UG-F3447-00-00

$1.74

20

NUT, SPRING

90183-08800-00

Unavailable

21

PIN,CLEVIS

90240-13802-00

Unavailable

22

CLIP(3YF)

90468-16191-00

Unavailable

23

PANEL,FRONT

5UG-F3391-04-00

Unavailable

24

GROMMET 117217730000

90480-40047-00

Unavailable

25

NUT, SPRING(4TV)

90183-05073-00

Unavailable

26

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

27

PANEL,FRONT (GREEN DASH COVER)

5UG-F3397-02-00

Unavailable

28

BOLT, WITH WASHER

90119-06226-00

Unavailable

29

RIVET

90269-06800-00

Unavailable

30

. HOLDER, LATCH

8M6-77175-00-00

$11.87

31

NUT, NYLON

95707-06300-00

Unavailable

32

SCREW, BINDING

98907-06035-00

$6.98

33

WASHER PLATE 248217570000

90201-06074-00

Unavailable

34

PANEL, CONSOLE 1

5UG-F837L-00-00

Unavailable
