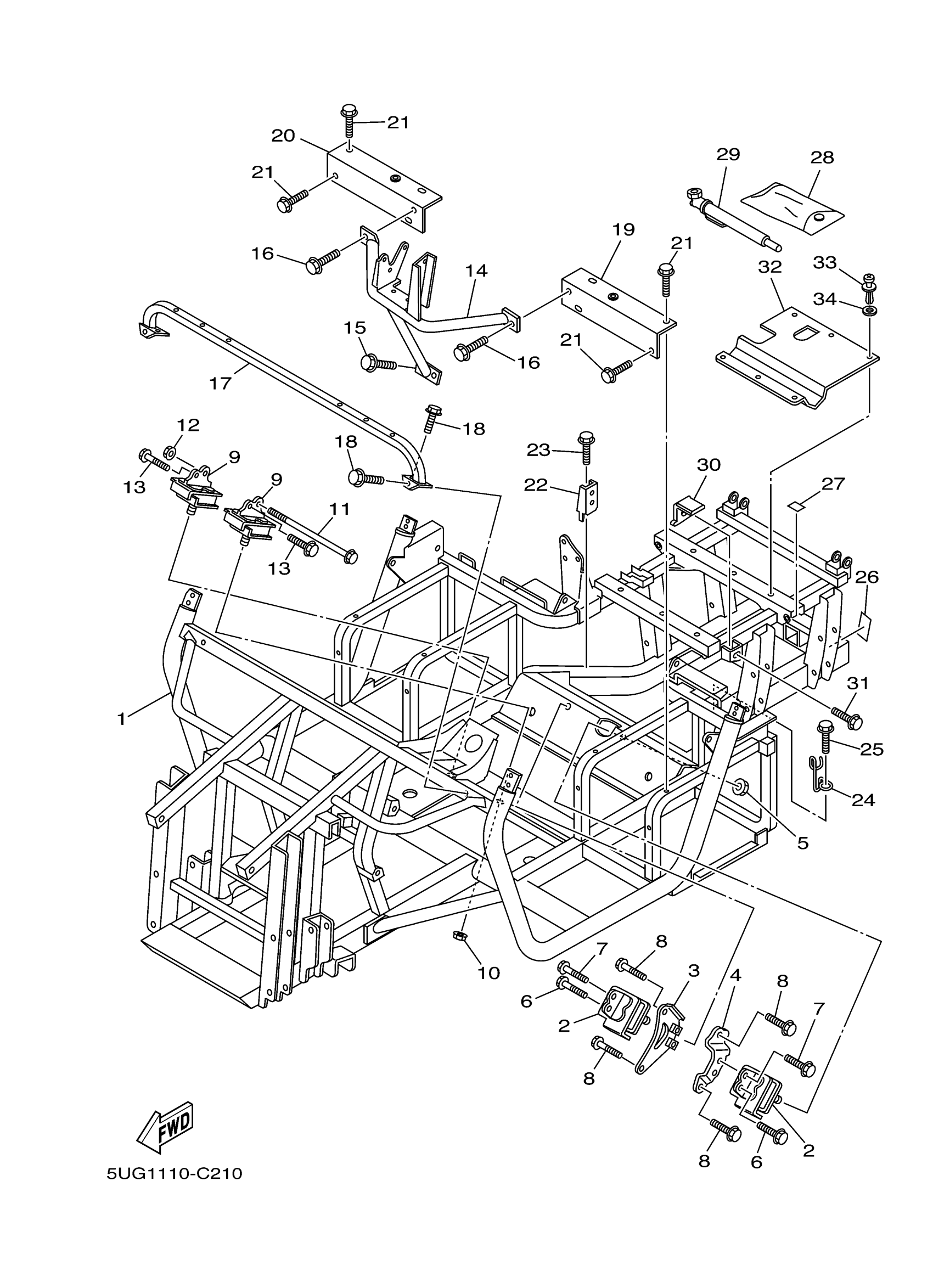

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 FRAME Diagram
#
1
FRAME COMP.
5UG-F1110-19-00
Unavailable
1
FRAME COMP.
5UG-F1110-19-00
Unavailable
2
DAMPER, RUBBER 1
5UG-21485-00-00
Unavailable
3
STAY, ENGINE 2
5KM-21315-00-00
$20.99
4
STAY, ENGINE 3
5KM-21316-00-00
Unavailable
5
NUT, SELF-LOCKING(3KJ)
90185-10154-00
$8.49
6
BOLT, WASHER BASED(JA9)
90105-06696-00
$9.49
7
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
8
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
9
DAMPER 2
5UG-21486-00-00
Unavailable
10
NUT, SELF-LOCKING(3KJ)
90185-10154-00
$8.49
11
BOLT, WASHER BASED(42X)
90105-10300-00
$12.49
12
NUT, SELF-LOCKING(3KJ)
90185-10154-00
$8.49
13
BOLT, WASHER BASED(JA9)
90105-06696-00
$9.49
14
REINFORCEMENT, FRAME 1
5UG-F1986-00-00
Unavailable
15
BOLT, FLANGE
95817-06016-00
Unavailable
16
BOLT, FLANGE
95817-10020-00
Unavailable
17
SUPPORTER
2P5-F1145-01-00
Unavailable
18
BOLT, FLANGE
95817-08012-00
Unavailable
19
SUPPORT, SEAT
5UG-F114H-01-00
Unavailable
20
SUPPORT, SEAT
5UG-F114J-01-00
Unavailable
21
BOLT, FLANGE
95817-08012-00
Unavailable
22
BRKT.
5UG-F116B-00-00
Unavailable
23
BOLT, FLANGE
95817-06016-00
Unavailable
24
HOLDER, CLUTCH CABLE
5UG-F1163-00-00
Unavailable
25
BOLT, FLANGE
95817-06016-00
Unavailable
26
LABEL 7
5UG-F151K-02-00
Unavailable
27
LABEL 6
5UG-F151J-00-00
Unavailable
28
TOOL KIT
5ND-F8100-00-00
Unavailable
29
GAUGE, AIR
5UG-F811A-00-00
Unavailable
30
BODY, LATCH 2
5UG-K7172-01-00
Unavailable
31
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
32
INSULATOR, HEAT
5UG-F2898-00-00
Unavailable
33
RIVET
90269-06800-00
Unavailable
34
WASHER, PLATE
90201-068G0-00
Unavailable
