- YXR660FAS (RHINO 660) 5UG1 2004
ELECTRICAL 1

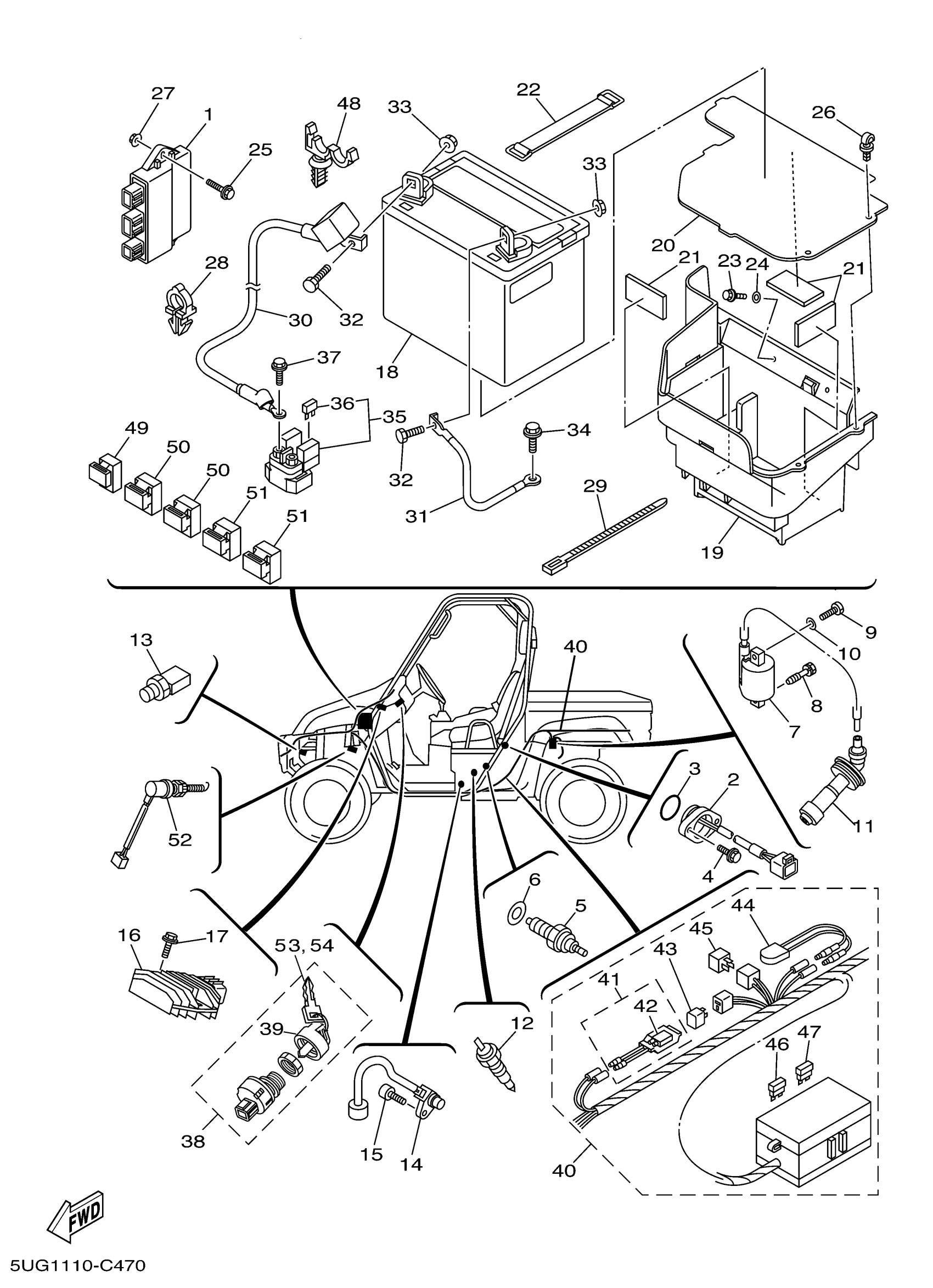

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSY
5UG-85540-10-00
$675.99
2
NEUTRAL SWITCH ASSY
5KM-82540-03-00
$96.99
3
O-RING (371)
93210-29196-00
$8.49
4
BOLT, WITH WASHER
90119-06242-00
$7.49
5
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
6
GASKET (1KH,1.0T)
90430-10148-00
$5.60
7
IGNITION COIL ASSY
5FU-82310-03-00
$42.99
8
BOLT (21V)
90109-06723-00
$8.49
9
BOLT, HEXAGON
97017-06020-00
$4.06
10
WASHER(6TA)
92907-06600-00
$2.72
11
PLUG CAP ASSY
3YF-82370-00-00
$77.99
12
THERMO SWITCH ASSY
4BA-82560-00-00
$87.99
13
THERMO SWITCH ASSY
5GM-82560-01-00
$47.99
14
SENSOR, SPEED
5UG-83755-03-00
$128.99
15
BOLT,SOCKET
91317-06016-00
$1.25
16
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
Unavailable
17
BOLT, FLANGE
95817-06020-00
Unavailable
18
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
19
BOX, BATTERY 1
5UG-H212B-02-00
Unavailable
20
COVER,BATTERY
5UG-H2129-10-00
Unavailable
21
DAMPER, SIDE COVER
4XE-F4145-00-00
Unavailable
22
BAND, BATTERY
22F-82131-00-00
Unavailable
23
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
24
WASHER, PLATE
90201-088S2-00
Unavailable
25
BOLT, FLANGE
95817-06025-00
Unavailable
26
RIVET
5UG-F171S-00-00
Unavailable
27
NUT, W/ WASHER
95707-06600-00
Unavailable
28
CLAMP
90464-12830-00
Unavailable
29
CLAMP(JN6)
90464-31827-00
Unavailable
30
WIRE,PLUS LEAD
5UG-H2115-10-00
Unavailable
31
WIRE,MINUS LEAD
5UG-H2116-10-00
Unavailable
32
BOLT, FLANGE (SELF TAPPING)
90105-06832-00
Unavailable
33
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
34
BOLT, FLANGE
95817-06014-00
Unavailable
35
STARTER RELAY ASSY (RC19-015)
4SV-81940-12-00
Unavailable
36
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
37
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
38
MAIN SWITCH ASSY
1XD-H2510-11-00
Unavailable
39
CAP, KEY
5UG-H2579-00-00
Unavailable
40
WIRE HARNESS ASSY
5UG-82590-01-00
Unavailable
41
CIRCUIT BREAKER ASSY
5ND-82180-00-00
Unavailable
42
THERMO SWITCH ASSY
5ND-82560-00-00
Unavailable
43
DIODE ASSY
3WP-81980-00-00
Unavailable
44
THERMO SWITCH ASSY
5FU-82560-10-00
Unavailable
45
DIODE ASSY
3XV-81980-00-00
Unavailable
46
FUSE (15A)
67F-82151-50-00
Unavailable
47
. FUSE (10A)
67F-82151-40-00
Unavailable
48
CLAMP
90464-12830-00
Unavailable
49
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
50
RELAY ASSY
5DM-81950-01-00
Unavailable
51
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
52
STOP SWITCH ASSY
4KB-82530-11-00
Unavailable
53
KEY BLANK (A) 5000-5149
5UG-H2511-09-00
Unavailable
54
KEY BLANK (B) 5150 - 5299
5UG-H2511-19-00
Unavailable
