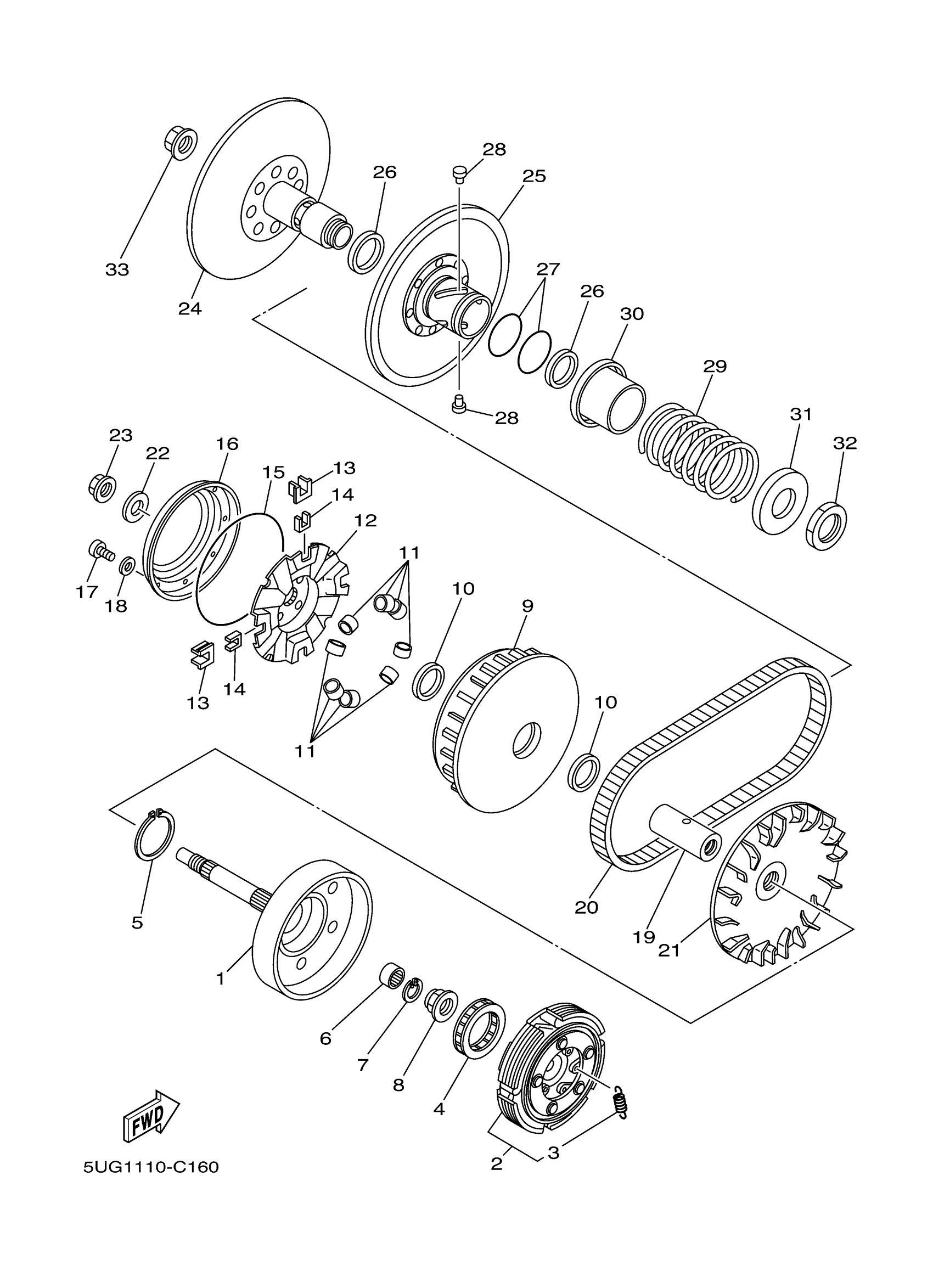

Yamaha YXR660FAS (RHINO 660) 5UG1 2004 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

5KM-16611-10-00

$424.99

2

CLUTCH CARRIER ASSY

5KM-16620-00-00

$523.99

3

SPRING, CLUTCH WEIGHT 1

5KM-16626-00-00

$7.99

4

BEARING, ONE WAY

4SH-16664-00-00

$154.99

5

CIRCLIP

93410-46079-00

$8.49

6

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

7

CIRCLIP (3G2)

93450-24062-00

$3.81

8

NUT

90179-22005-00

$28.99

9

PRIMARY SLIDING SHEAVE COMP.

5UG-17620-00-00

Unavailable

10

OIL SEAL

93101-35001-00

$21.99

11

WEIGHT

5KM-17632-00-00

$15.49

12

CAM

5KM-17623-00-00

$75.99

13

SLIDER

4WV-17653-00-00

$7.99

14

SPACER 1

4WV-17654-01-00

$6.99

15

O-RING

93211-594A4-00

$25.99

16

STOPPER

4WV-17639-10-00

Unavailable

17

SCREW, PAN HEAD

98517-04012-00

Unavailable

18

WASHER, PLATE(4HC)

90201-047R9-00

Unavailable

19

COLLAR

5KM-17645-00-00

Unavailable

20

V-BELT

5KM-17641-01-00

Unavailable

21

SHEAVE, PRIMARY FIXED

5KM-17611-00-00

Unavailable

22

WASHER, PLATE

90201-190T7-00

Unavailable

23

NUT

90179-16005-00

Unavailable

24

SECONDARY FIXED SHEAVE COMP.

4WV-17660-10-00

Unavailable

25

SECONDARY SLIDING SHEAVE

4WV-17670-00-00

Unavailable

26

OIL SEAL

93104-41119-00

Unavailable

27

O-RING (10L)

93210-44545-00

Unavailable

28

PIN, GUIDE

4CW-17664-00-00

Unavailable

29

SPRING, COMPRESSION

90501-65001-00

Unavailable

30

SEAT, SECONDARY SPRING

4WV-17684-00-00

Unavailable

31

SEAT, SPRING

4WV-17644-00-00

Unavailable

32

NUT (5G3)

90170-36279-00

Unavailable

33

NUT

90179-16005-00

Unavailable
