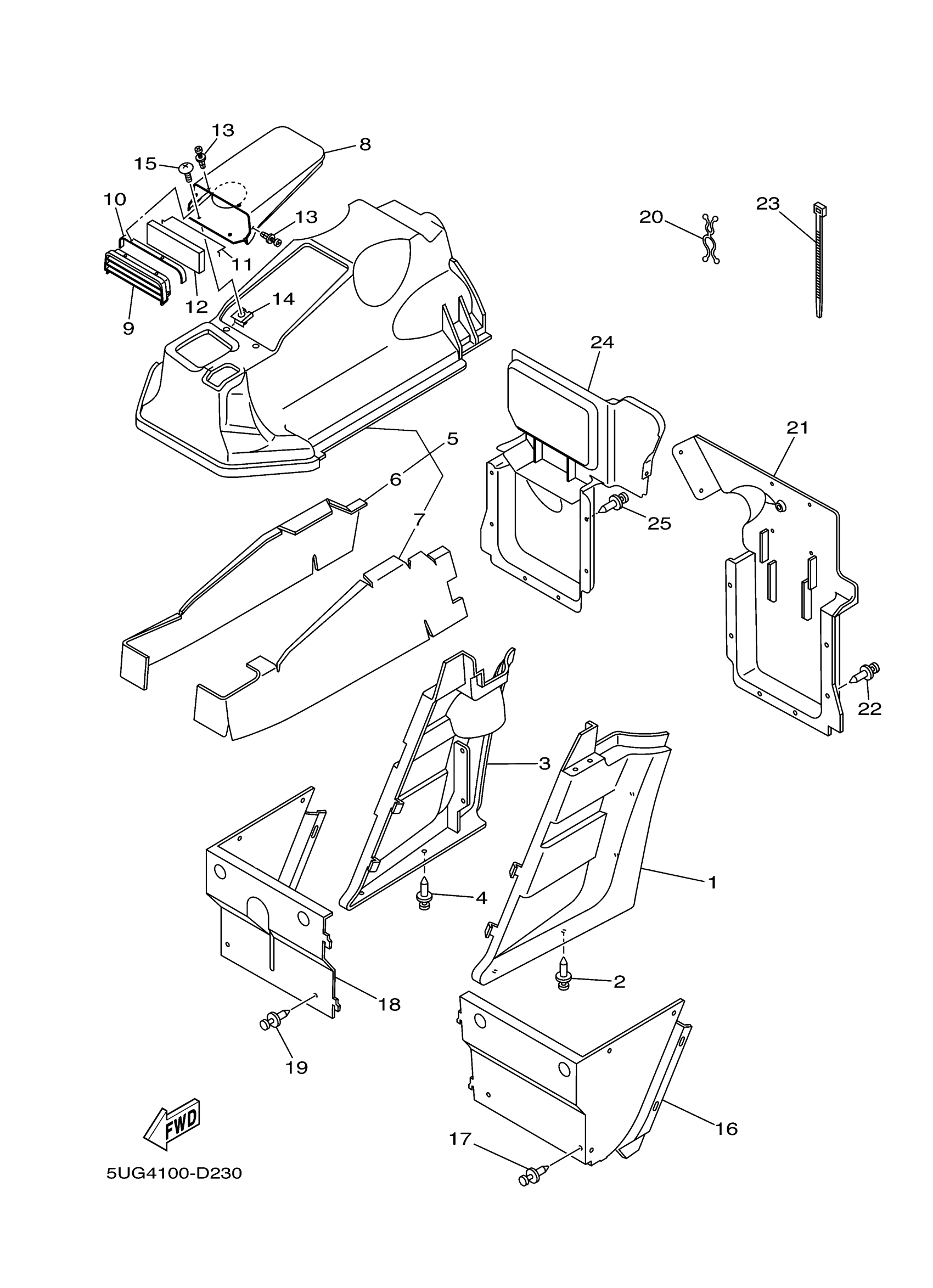

Yamaha YXR660FAHT (RHINO HUNTER) 5UG8 2005 SIDE COVERS Diagram
#
Description
Price
1
SIDE PANEL COMP.1
5UG-K810F-01-00
Unavailable
3
SIDE PANEL COMP.2
5UG-K810G-01-00
Unavailable
5
COVER ASSY
5UG-F8108-10-00
Unavailable
6
. SEAL 1
5UG-F2873-10-00
Unavailable
7
. SEAL 3
5UG-F2875-10-00
Unavailable
11
HOLDER, WIRE
5UG-14415-00-00
Unavailable
16
SUPPORT, SIDE PANEL
5UG-F254J-00-00
Unavailable
18
SUPPORT, SIDE PANEL 2
5UG-F254K-00-00
Unavailable
20
CLAMP(3XV)
90464-29179-00
Unavailable
21
PROTECTOR, SIDE 1
5UG-K7561-02-00
Unavailable
23
CLAMP
90464-48800-00
Unavailable
24
PROTECTOR, FUEL TA
5UG-F4141-01-00
Unavailable
