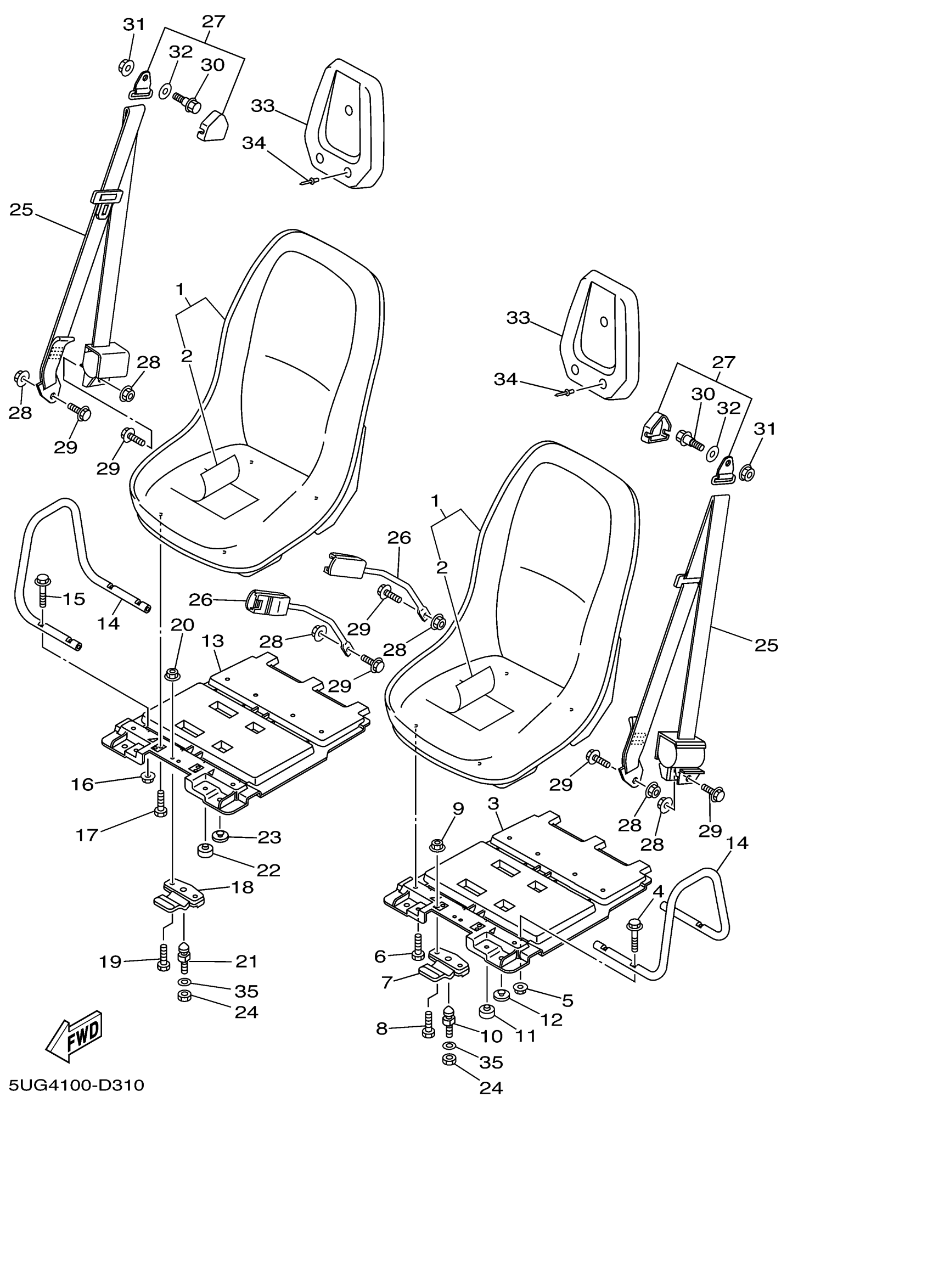

Yamaha YXR660FAHT (RHINO HUNTER) 5UG8 2005 SEAT Diagram
#
1
SINGLE SEAT ASSY
5UG-F4710-01-00
Unavailable
2
. SEAT COVER COMP
5UG-F470F-00-00
Unavailable
3
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
4
BOLT, FLANGE
95812-08030-00
$3.81
5
NUT, SELF-LOCKING
90185-08169-00
$8.49
6
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
7
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
8
BOLT, FLANGE
95817-06040-00
$5.60
9
NUT,SELF-LOCKING
95607-06200-00
$12.49
10
PIN
GH1-U3774-00-00
Unavailable
11
DAMPER, SEAT
4XE-F4747-00-00
$30.99
12
PAD, BATTERY
371-82121-00-00
$8.99
13
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
14
ASSIST,GRIP 2
2P5-F474W-00-00
Unavailable
15
BOLT, FLANGE
95812-08030-00
$3.81
16
NUT, SELF-LOCKING
90185-08169-00
$8.49
17
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
18
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
19
BOLT, FLANGE
95817-06040-00
$5.60
20
NUT,SELF-LOCKING
95607-06200-00
$12.49
21
PIN
GH1-U3774-00-00
Unavailable
22
DAMPER, SEAT
4XE-F4747-00-00
$30.99
23
PAD, BATTERY
371-82121-00-00
$8.99
24
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
25
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
26
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
27
COVER
5UG-F4796-00-00
Unavailable
28
NUT, SELF-LOCKING(3KJ)
90185-10154-00
Unavailable
29
BOLT, FLANGE(4BD)
95817-10022-00
Unavailable
30
BOLT, SPECIAL
5UG-F3394-00-00
Unavailable
31
SPEED NUT
5UG-F4735-01-00
Unavailable
32
WASHER, PLATE
90201-11801-00
Unavailable
33
HEAD REST
5UG-F472L-00-00
Unavailable
34
RIVET, BLIND
90267-48820-00
Unavailable
35
WASHER, PLATE
90201-109U6-00
Unavailable
