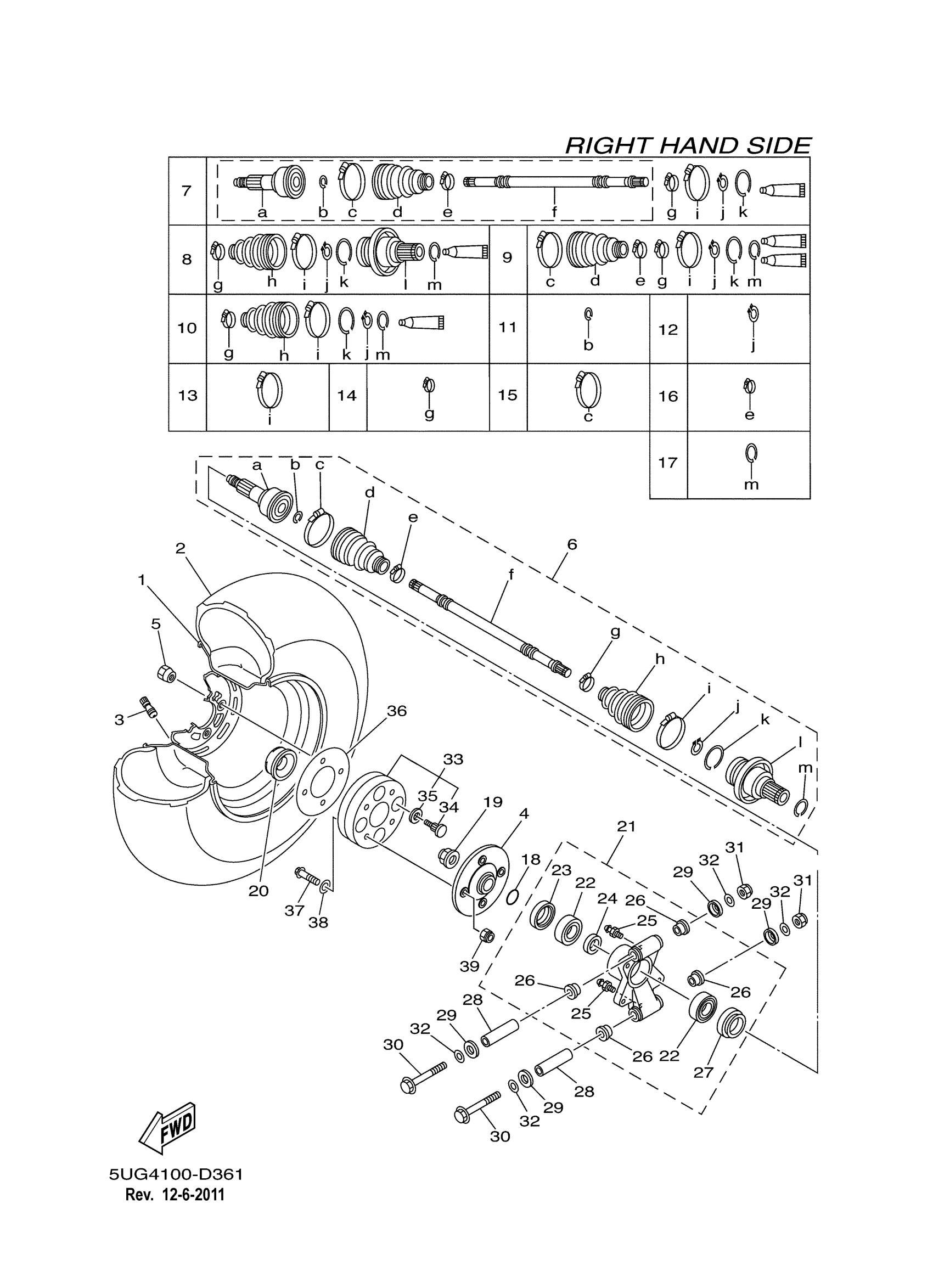

Yamaha YXR660FAHT (RHINO HUNTER) 5UG8 2005 REAR WHEEL 2 Diagram
#
1
REAR WHEEL COMP.
5UG-F5390-00-00
Unavailable
2
TIRE (25X10-12 NHS)
94110-12802-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB ASSY
5UG-F5310-30-00
Unavailable
5
NUT(2HR)
90179-10540-00
$5.60
6
REAR DRIVE SHAFT ASSY RH
5UG-F53B0-11-00
Unavailable
7
BALL JOINT SET (RIGHT REAR)
5UG-F530U-11-00
Unavailable
8
DOUBLE OFF SET JOINT RIGHT
5UG-F530W-02-00
Unavailable
9
BOOT SET (BALL JOINT)
5UG-F530X-01-00
Unavailable
10
BOOT SET (DOUBLE OFF)
5UG-F530Y-01-00
Unavailable
11
CIRCLIP
5UG-F512H-00-00
$8.99
12
. SNAP RING
5UG-F512J-00-00
Unavailable
13
. BOOT BAND(DOUBLE OFFSETJOINT)
5UG-F511H-00-00
Unavailable
14
BOOT BAND (SMALL)
5UG-F512G-00-00
Unavailable
15
BOOT BAND (BALL JOINT)
5UG-F511G-00-00
Unavailable
16
. BOOT BAND (SMALL)
5UG-F510U-00-00
Unavailable
17
CLIP, SPRING
5KM-2536E-10-00
Unavailable
18
O-RING(47X)
93210-27666-00
Unavailable
19
NUT
90179-20016-00
Unavailable
20
CAP, WHEEL
5UG-F512A-00-00
Unavailable
21
REAR KNUCKLE ASSY
5UG-F530F-11-00
Unavailable
22
BEARING
93306-206Y2-00
Unavailable
23
OIL SEAL
93106-42800-00
Unavailable
24
SPACER(2HR)
90560-30325-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
27
OIL SEAL
93106-38800-00
Unavailable
28
SPACER
5KM-23448-00-00
Unavailable
29
COVER, THRUST 1
5UG-23517-10-00
Unavailable
30
BOLT, WASHER BASED(1KT)
90105-10409-00
Unavailable
31
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
32
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
33
SPACER ASSY
42S-F53W0-00-00
Unavailable
34
BOLT, SERRATION
90114-10013-00
Unavailable
35
WASHER, PLATE
90201-12034-00
Unavailable
36
PLATE 1
5UG-2539F-00-00
Unavailable
37
BOLT, FLANGE
90105-12062-00
Unavailable
38
WASHER, PLATE
90201-14020-00
Unavailable
39
NUT, SELF-LOCKING
90185-12007-00
Unavailable
