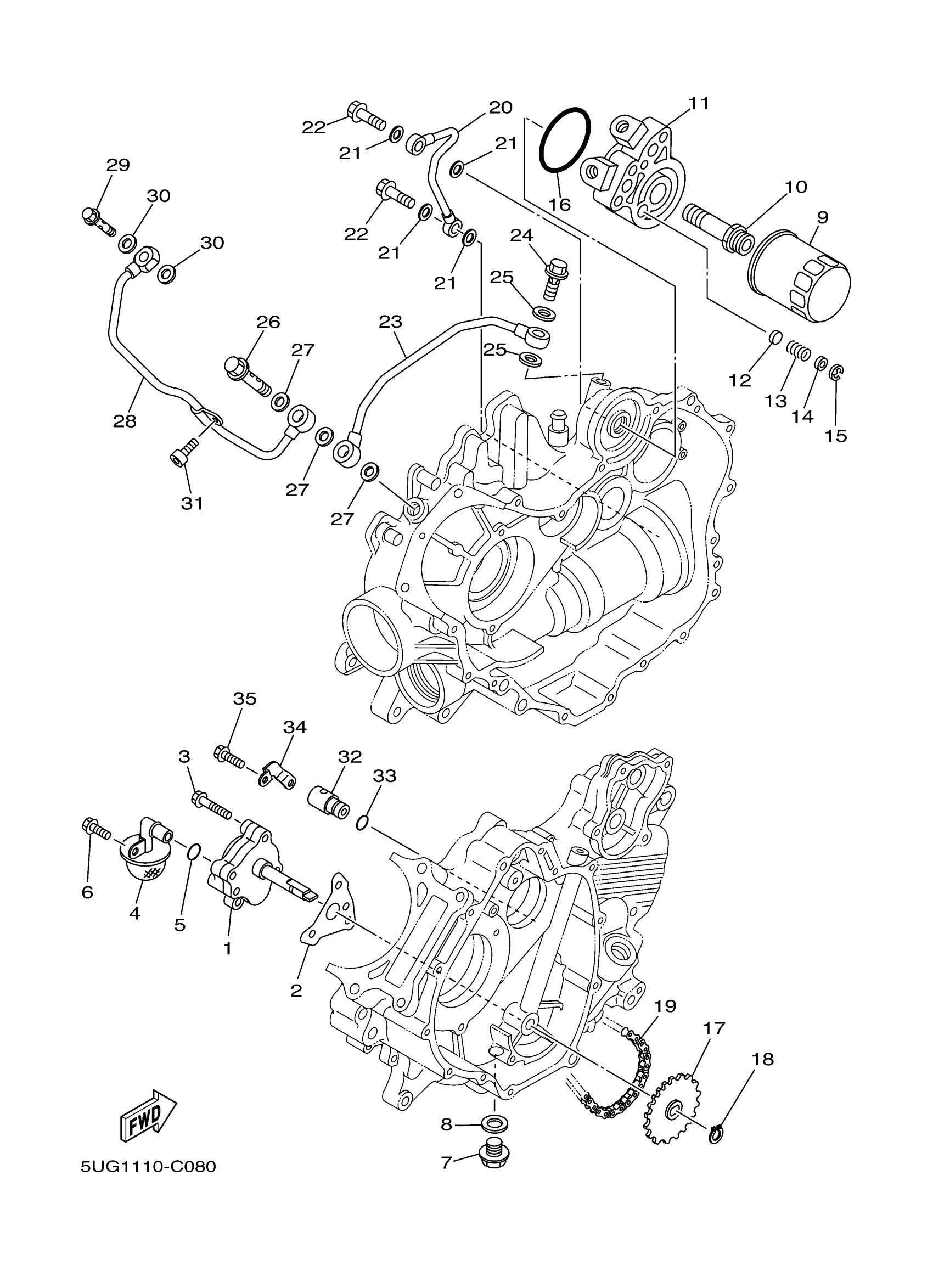

Yamaha YXR660FAHT (RHINO HUNTER) 5UG8 2005 OIL PUMP Diagram
#
1
OIL PUMP ASSY
5KM-13300-00-00
$127.99
2
GASKET, PUMP COVER
5KM-13329-00-00
$7.99
3
BOLT, SMALL FLANGE
95027-06040-00
$3.28
4
STRAINER HOUSING ASSY
5KM-13410-00-00
$85.99
5
O-RING (26H)
93210-14579-00
$7.49
6
BOLT, FLANGE(4DU)
95027-06014-00
$8.49
7
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
$3.98
8
GASKET
214-11198-01-00
$3.17
9
ELEMENT ASSY, OIL CLEANER
5GH-13440-72-00
$16.49
10
BOLT, UNION(4KM)
90401-20162-00
$35.99
11
PLATE, ADAPTOR
5UG-13461-00-00
$166.99
12
PLUG
1YW-13497-00-00
$6.99
13
SPRING, COMPRESSION(1YW)
90501-082E3-00
$3.28
14
WASHER(6TA)
92907-06600-00
$2.72
15
CIRCLIP(1YW)
93420-13073-00
$8.49
16
O-RING (4H7)
93210-57428-00
Unavailable
17
SPROCKET, DRIVEN
5KM-13355-00-00
Unavailable
18
CIRCLIP(24H)
99009-11400-00
Unavailable
19
CHAIN
94581-94070-00
Unavailable
20
PIPE, DELIVERY 1
3AJ-13161-01-00
Unavailable
21
GASKET(3AJ)
90430-08204-00
Unavailable
22
BOLT, UNION
90401-08004-00
Unavailable
23
PIPE, DELIVERY 2
5KM-13171-00-00
Unavailable
24
BOLT, UNION(1YW)
90401-14118-00
Unavailable
25
GASKET 256131670000
90430-14043-00
Unavailable
26
BOLT, UNION
5KM-12858-00-00
Unavailable
27
GASKET 256131670000
90430-14043-00
Unavailable
28
PIPE, DELIVERY 3
5KM-13181-00-00
Unavailable
29
BOLT, UNION(3GM)
90401-10159-00
Unavailable
30
GASKET
90430-10188-00
Unavailable
31
BOLT,SOCKET
91317-06012-00
Unavailable
32
RELIEF VALVE ASSY
5KM-13490-00-00
Unavailable
33
O-RING (611)
93210-10096-00
Unavailable
34
PLATE
5KM-1319K-00-00
Unavailable
35
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
