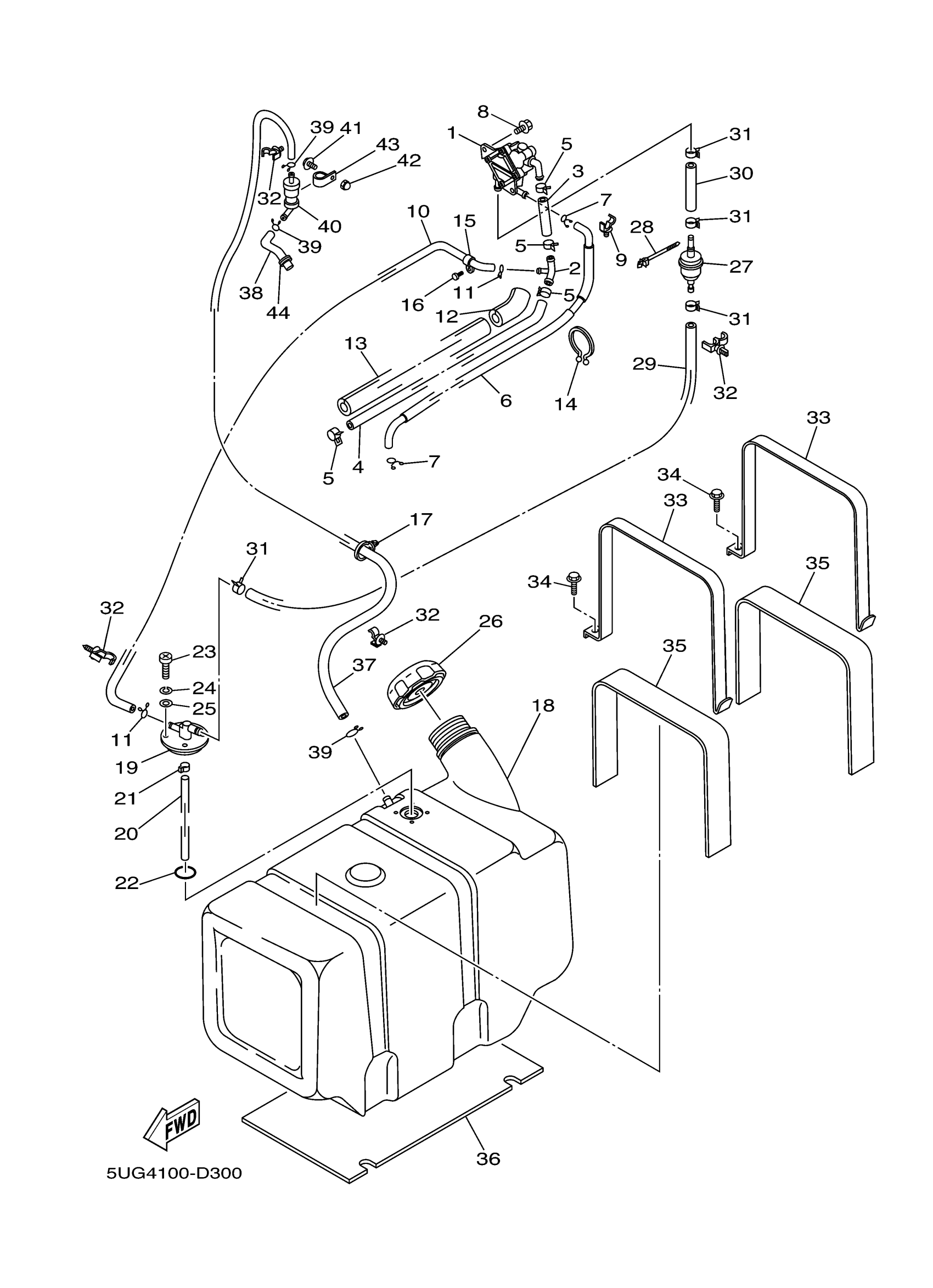

Yamaha YXR660FAHT (RHINO HUNTER) 5UG8 2005 FUEL TANK Diagram
#
2
WAY 3
90413-09001-00
Unavailable
6
HOSE, AIR
5UG-E3895-00-00
Unavailable
15
CLAMP
90464-11803-00
Unavailable
16
PLUG
90338-05834-00
Unavailable
17
CLAMP
90464-25826-00
Unavailable
18
TANK, FUEL
5UG-F4111-01-00
Unavailable
19
PIPE, JOINT
5UG-24461-00-00
Unavailable
20
PIPE
5UG-E4298-10-00
Unavailable
21
CLIP,SCISSOR
90467-07815-00
Unavailable
22
O-RING
93210-228C4-00
Unavailable
23
SCREW, PAN HEAD
98507-05014-00
Unavailable
24
WASHER(3SX)
92907-05100-00
Unavailable
25
WASHER(1RW)
92907-05600-00
Unavailable
26
CAP ASSY
BVG-24610-00-00
Unavailable
27
FILTER ASSY
JN6-F4560-00-00
Unavailable
28
CLAMP
90464-38800-00
Unavailable
29
PIPE, FUEL 1
5UG-F4311-00-00
Unavailable
30
PIPE 3
5UG-F4313-00-00
Unavailable
33
STAY, FUEL TANK 1
5UG-F4157-00-00
Unavailable
34
BOLT, FLANGE
90105-088B0-00
Unavailable
35
DAMPER, PLATE 1
5UG-F414H-00-00
Unavailable
36
DAMPER, PLATE 2
5UG-F414J-00-00
Unavailable
37
PIPE 2
5UG-F4312-00-00
Unavailable
38
PIPE 4
5UG-F4314-00-00
Unavailable
40
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
41
SCREW, BINDING
98907-05010-00
Unavailable
42
NUT, CROWN(47X)
90176-05054-00
Unavailable
43
CLAMP
90464-15014-00
Unavailable
44
GROMMET (1E6)
90480-15058-00
Unavailable
