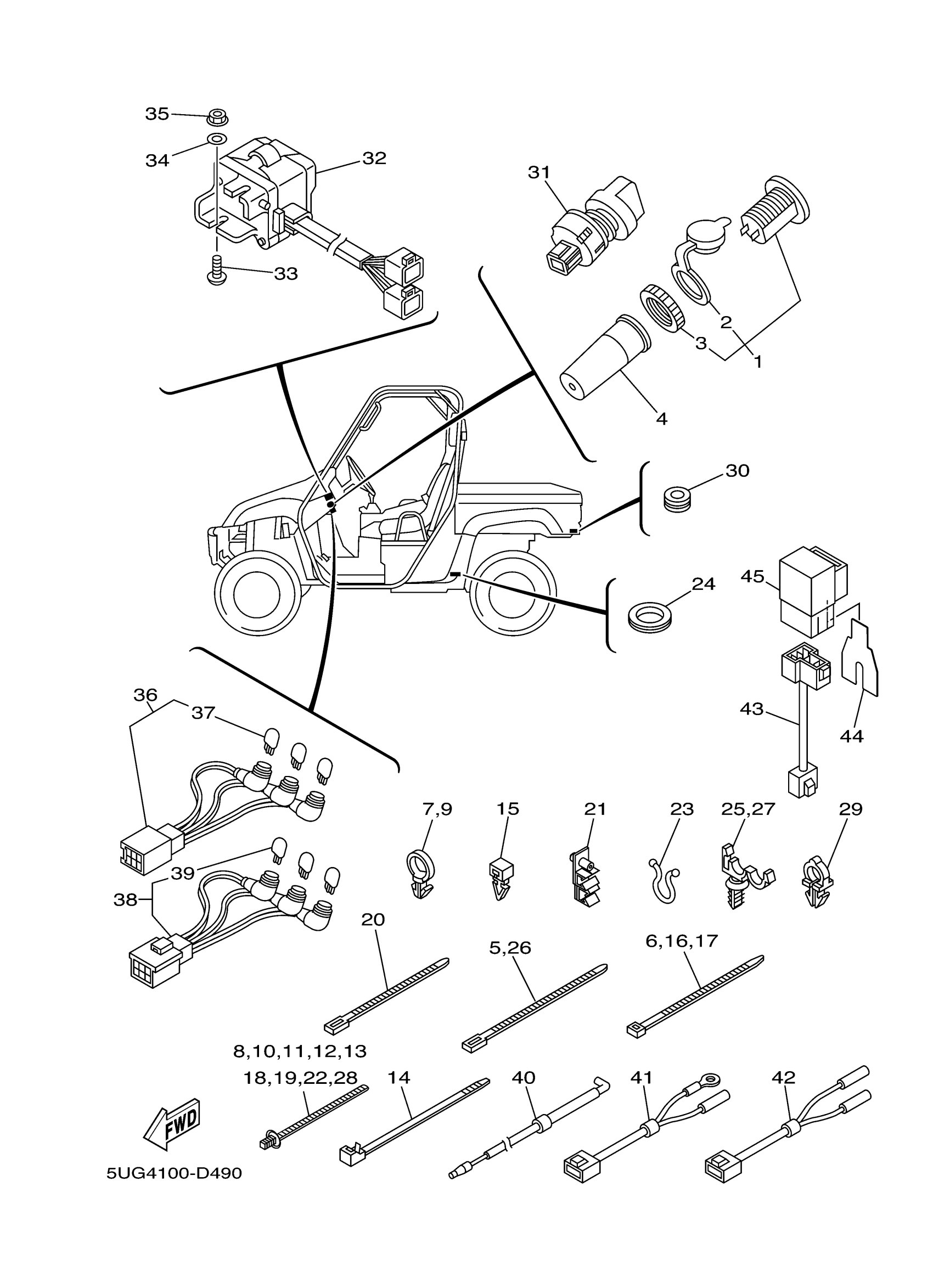

Yamaha YXR660FAHT (RHINO HUNTER) 5UG8 2005 ELECTRICAL 2 Diagram
#
1
TERMINAL ASSY
5FU-H1920-10-00
$47.99
2
COVER
5FU-H1942-10-00
$10.99
3
NUT
5FU-H191B-10-00
$1.82
4
COVER,CONNECTER
5FU-H2599-01-00
$6.99
5
CLAMP(JN6)
90464-40825-00
$3.05
6
CLAMP
90464-48800-00
Unavailable
7
CLAMP
90464-19815-00
Unavailable
8
CLAMP
90464-20005-00
Unavailable
9
CLAMP
90464-19815-00
Unavailable
10
CLAMP
90464-20005-00
Unavailable
11
CLAMP
90464-20005-00
Unavailable
12
CLAMP
90464-20005-00
Unavailable
13
CLAMP
90464-20005-00
Unavailable
14
CLAMP
90464-51800-00
$14.99
15
HOLDER
5UG-F2465-00-00
Unavailable
16
CLAMP
90464-48800-00
Unavailable
17
CLAMP
90464-48800-00
Unavailable
18
CLAMP
90464-20005-00
Unavailable
19
CLAMP
90464-20005-00
Unavailable
20
CLAMP(JN6)
90464-31827-00
Unavailable
21
CLAMP
5UG-F481H-00-00
Unavailable
22
CLAMP
90464-20005-00
Unavailable
23
CLAMP
90464-14800-00
Unavailable
24
GROMMET
90480-25856-00
Unavailable
25
CLAMP
90464-12830-00
Unavailable
26
CLAMP(JN6)
90464-40825-00
$3.05
27
CLAMP
90464-12830-00
Unavailable
28
CLAMP
90464-20005-00
Unavailable
29
CLAMP
90464-12830-00
Unavailable
30
GROMMET(2GH)
90480-12475-00
Unavailable
31
SWITCH, LAMP
5UG-H2526-00-00
Unavailable
32
Switch, Handle 1
5UG-83976-12-00
Unavailable
33
SCREW(3YF)
90149-05299-00
Unavailable
34
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
35
NUT, NYLON
95707-05300-00
Unavailable
36
PILOT LIGHT ASSY
5UG-83530-10-00
Unavailable
37
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
38
PILOT LIGHT ASSY
5UG-83530-01-00
Unavailable
39
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
40
WIRE, LEAD
5KM-82541-00-00
Unavailable
41
WIRE, SUB LEAD
5KM-82509-10-00
Unavailable
42
WIRE, SUB-LEAD
5UG-82318-00-00
Unavailable
43
WIRE, SUB LEAD
5UG-82583-00-00
Unavailable
44
STAY, RELAY
5UG-H1953-00-00
Unavailable
45
RELAY ASSY
5DM-81950-01-00
Unavailable
