Description

Price

1

CAMSHAFT ASSY 1

5KM-12170-00-00

$318.99

2

PIN, DECOMPRESSION LEVER

3YF-12284-00-00

Unavailable

3

SPRING, COMPRESSION

90501-05001-00

$2.34

4

PIN, DOWEL(4GV)

93603-21180-00

$8.49

5

LEVER, DECOMPRESSION SPRING

3YF-12290-00-00

$85.99

6

SPROCKET, CAM CHAIN

5KM-12176-00-00

$113.99

7

CAM, DECOMPRESSION

3YF-12288-00-00

Unavailable

8

SHAFT, TENSIONER

3YF-12247-00-00

Unavailable

9

SPRING

5KM-12216-01-00

$2.13

10

PLATE, GUIDE STOPPER 1

3YF-12233-01-00

$11.99

11

BOLT, FLANGE

90105-07004-00

$5.60

12

CHAIN

94591-53126-00

$30.99

13

GUIDE, STOPPER 1

5KM-12231-10-00

$50.99

14

GUIDE, STOPPER 2

5KM-12241-00-00

$105.99

15

BOLT, HEXAGON

97017-06016-00

$8.49

16

WASHER(6TA)

92907-06600-00

Unavailable

17

TENSIONER ASSY, CAM CHAIN

5KM-12210-00-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable

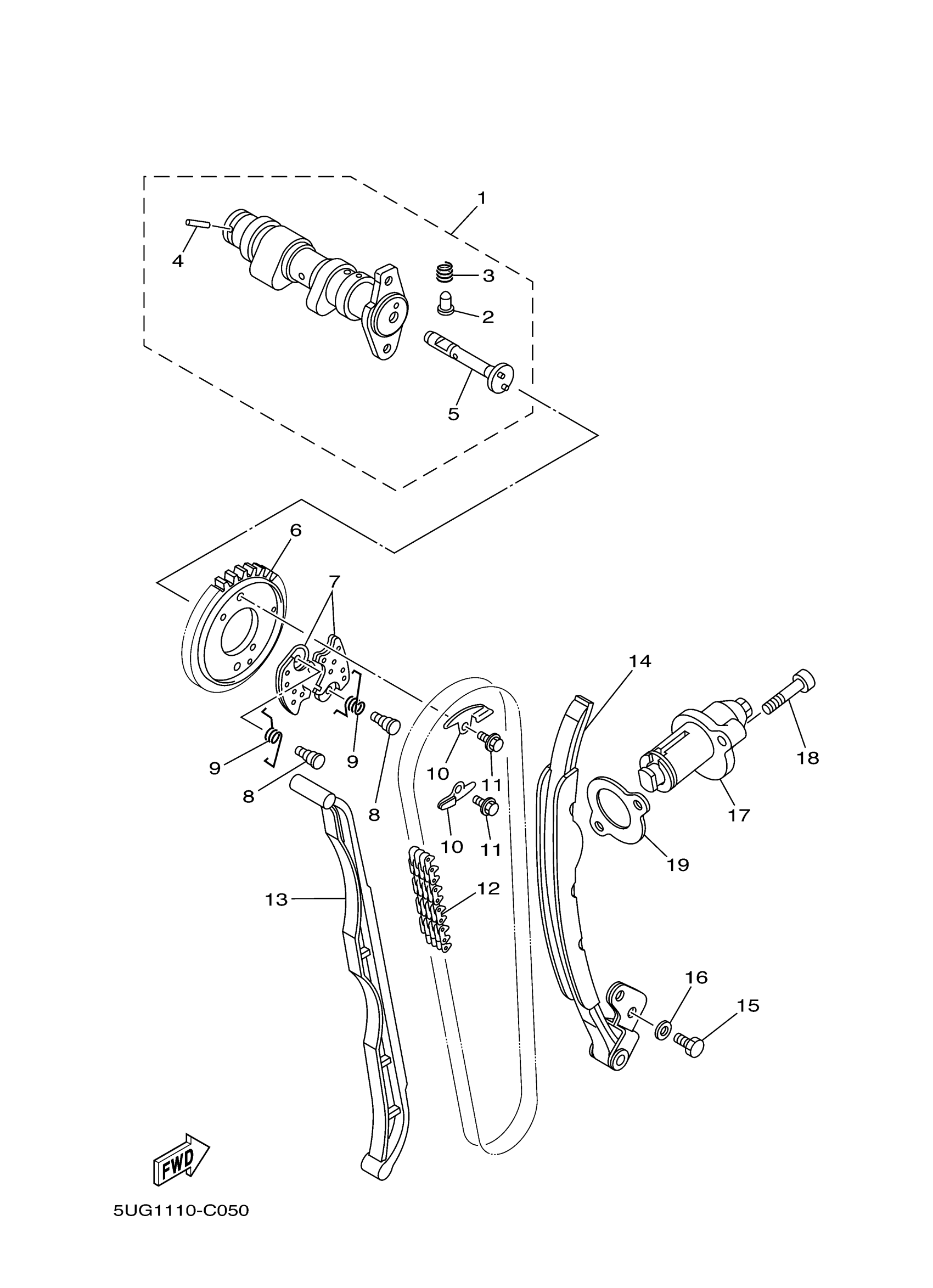

Yamaha YXR660FAHT (RHINO HUNTER) 5UG8 2005 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

PIN, DECOMPRESSION LEVER

SPRING, COMPRESSION

PIN, DOWEL(4GV)

LEVER, DECOMPRESSION SPRING

SPROCKET, CAM CHAIN

CAM, DECOMPRESSION

SHAFT, TENSIONER

SPRING

PLATE, GUIDE STOPPER 1

BOLT, FLANGE

CHAIN

GUIDE, STOPPER 1

GUIDE, STOPPER 2

BOLT, HEXAGON

WASHER(6TA)

TENSIONER ASSY, CAM CHAIN

BOLT,SOCKET

GASKET, TENSIONER CASE
