Description

Price

1

VALVE, INTAKE

5KM-12111-00-00

$35.99

2

VALVE, EXHAUST

3YF-12121-00-00

$57.99

3

SPRING, VALVE INNER

3YF-12113-00-00

$7.99

4

SPRING, VALVE OUTER

3YF-12114-00-00

$14.49

5

SEAT, VALVE SPRING

3YF-12116-00-00

$8.99

6

SEAL, VALVE STEM

5H0-12119-00-00

$16.49

7

RETAINER, VALVE SPRING

3YF-12117-01-00

$15.49

8

COTTER, VALVE

4G0-12118-00-00

$7.99

9

ARM, VALVE ROCKER

3YF-12151-00-00

Unavailable

10

ARM, VALVE ROCKER 2

3YF-12161-00-00

$68.99

11

ARM, VALVE ROCKER 3

3YF-12162-00-00

$51.99

12

ARM, VALVE ROCKER 4

3YF-12163-00-00

$48.99

13

SHAFT, ROCKER

3YF-12146-00-00

Unavailable

14

SHAFT, ROCKER 2

2NX-12156-00-00

Unavailable

15

SHAFT, ROCKER 3

3YF-12166-00-00

Unavailable

16

O-RING (5Y1)

93210-08521-00

Unavailable

17

BOLT

90109-063E8-00

Unavailable

18

SCREW, VALVE ADJUSTING

2NX-12159-00-00

Unavailable

19

NUT HEXAGON 371121580000

90170-06128-00

Unavailable

20

WASHER, WAVE (17W)

90206-12074-00

Unavailable

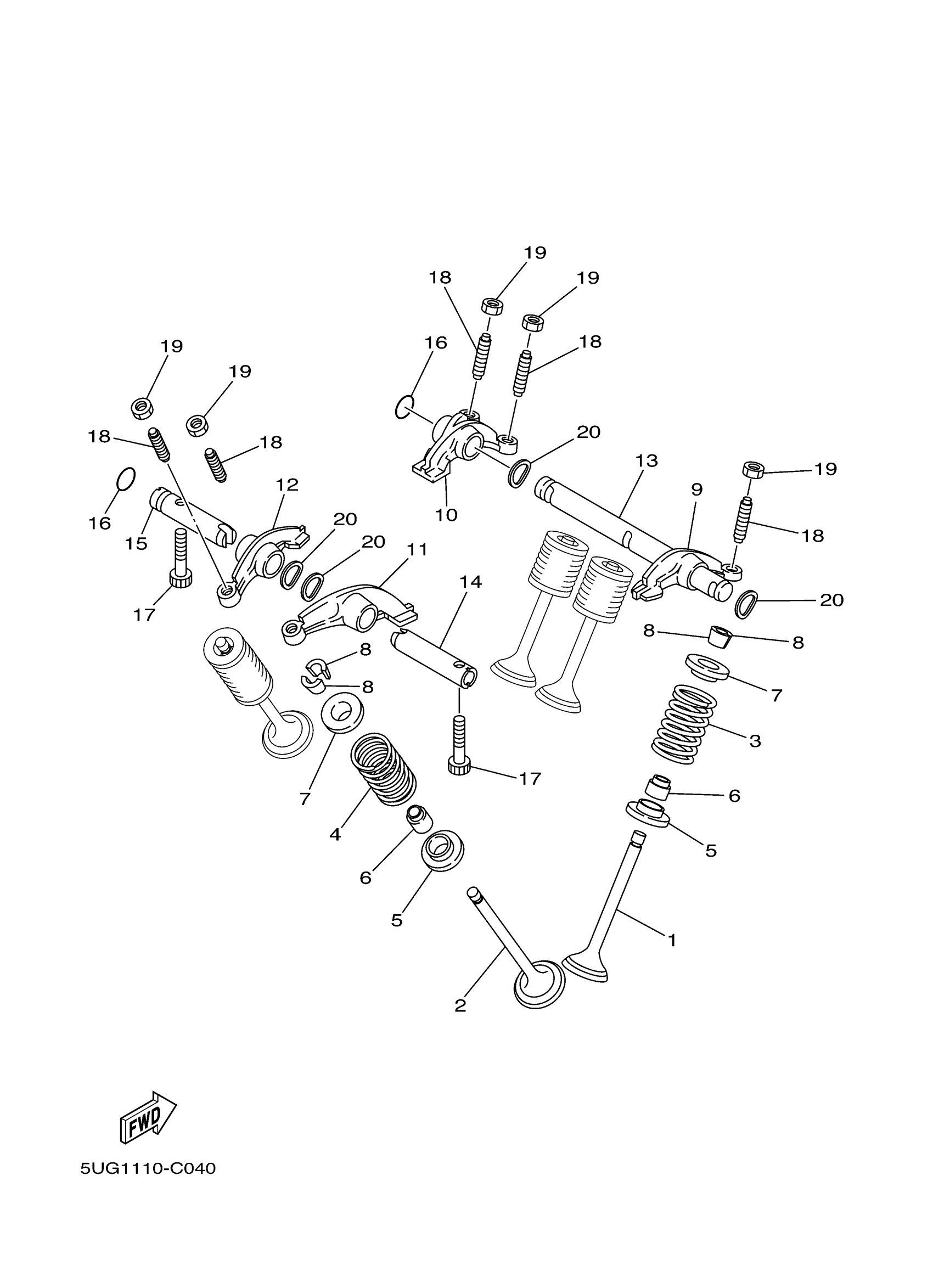

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 VALVE Diagram

VALVE, INTAKE

VALVE, EXHAUST

SPRING, VALVE INNER

SPRING, VALVE OUTER

SEAT, VALVE SPRING

SEAL, VALVE STEM

RETAINER, VALVE SPRING

COTTER, VALVE

ARM, VALVE ROCKER

ARM, VALVE ROCKER 2

ARM, VALVE ROCKER 3

ARM, VALVE ROCKER 4

SHAFT, ROCKER

SHAFT, ROCKER 2

SHAFT, ROCKER 3

O-RING (5Y1)

BOLT

SCREW, VALVE ADJUSTING

NUT HEXAGON 371121580000

WASHER, WAVE (17W)
