Description

Price

1

SIDE PANEL COMP.1

5UG-K810F-01-00

Unavailable

2

RIVET

90269-06800-00

$2.18

3

SIDE PANEL COMP.2

5UG-K810G-01-00

Unavailable

4

RIVET

90269-06800-00

$2.18

5

COVER ASSY WITH HEAT SHIELD

5UG-F8108-00-00

Unavailable

6

SEAL 1

5UG-F2873-00-00

Unavailable

7

SEAL 2

5UG-F2874-00-00

Unavailable

8

SEAL 3

5UG-F2875-00-00

Unavailable

9

SUPPORT, SIDE PANEL

5UG-F254J-00-00

Unavailable

10

RIVET

90269-06800-00

$2.18

11

SUPPORT, SIDE PANEL 2

5UG-F254K-00-00

Unavailable

12

RIVET

90269-06800-00

$2.18

13

CLAMP(3XV)

90464-29179-00

$1.64

14

PROTECTOR, SIDE 1

5UG-K7561-02-00

Unavailable

15

RIVET

90269-06800-00

$2.18

16

CLAMP

90464-48800-00

Unavailable

17

CAP

5UG-F1875-00-00

Unavailable

18

PROTECTOR 1

5UG-F2825-00-00

Unavailable

19

PROTECTOR 2

5UG-F2826-00-00

Unavailable

20

RIVET

90269-06800-00

$2.18

21

PROTECTOR, FUEL TA

5UG-F4141-01-00

Unavailable

22

RIVET

90269-06800-00

$2.18

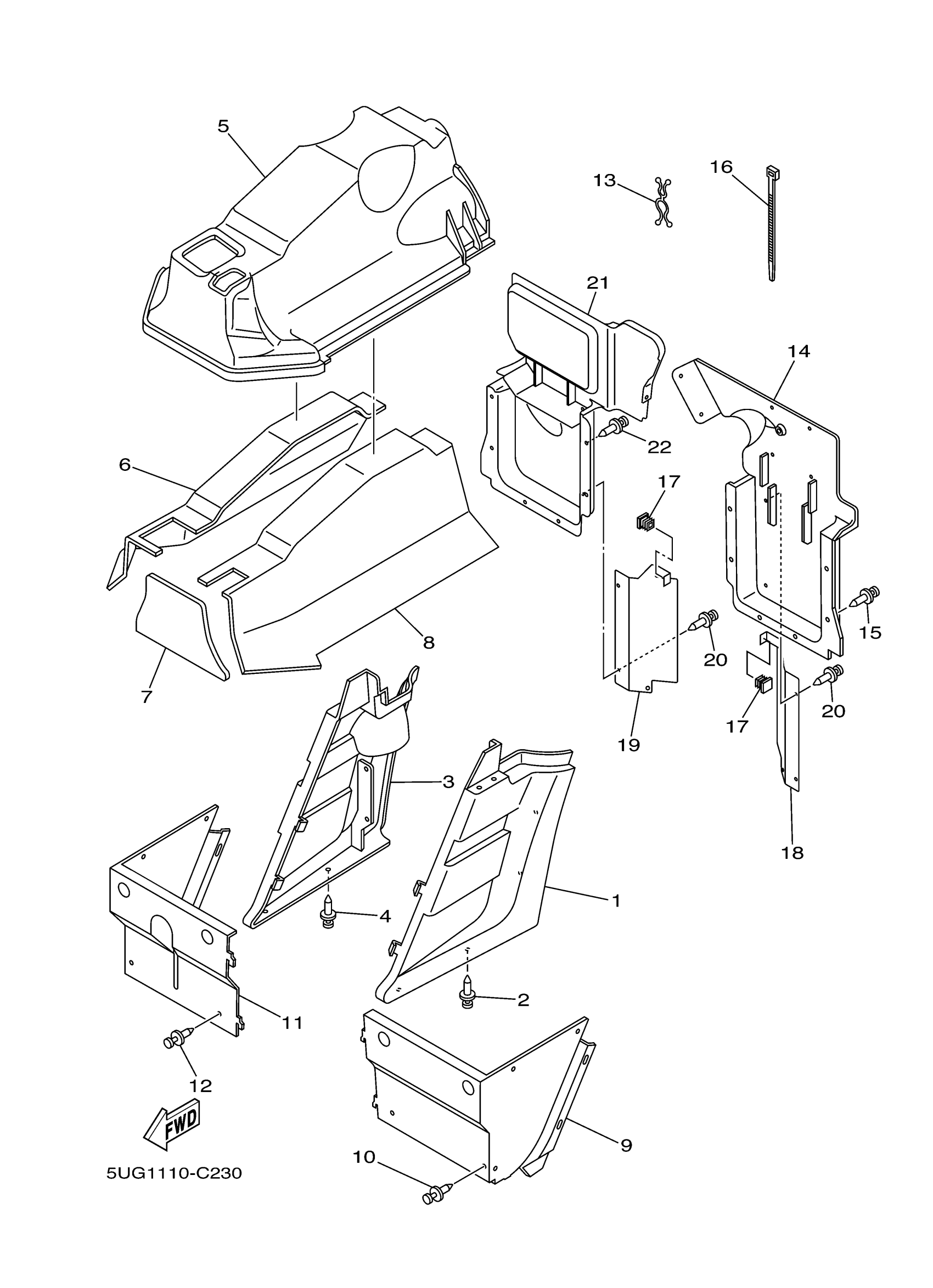

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 SIDE COVERS Diagram

SIDE PANEL COMP.1

RIVET

SIDE PANEL COMP.2

RIVET

COVER ASSY WITH HEAT SHIELD

SEAL 1

SEAL 2

SEAL 3

SUPPORT, SIDE PANEL

RIVET

SUPPORT, SIDE PANEL 2

RIVET

CLAMP(3XV)

PROTECTOR, SIDE 1

RIVET

CLAMP

CAP

PROTECTOR 1

PROTECTOR 2

RIVET

PROTECTOR, FUEL TA

RIVET
