REAR WHEEL LEFT

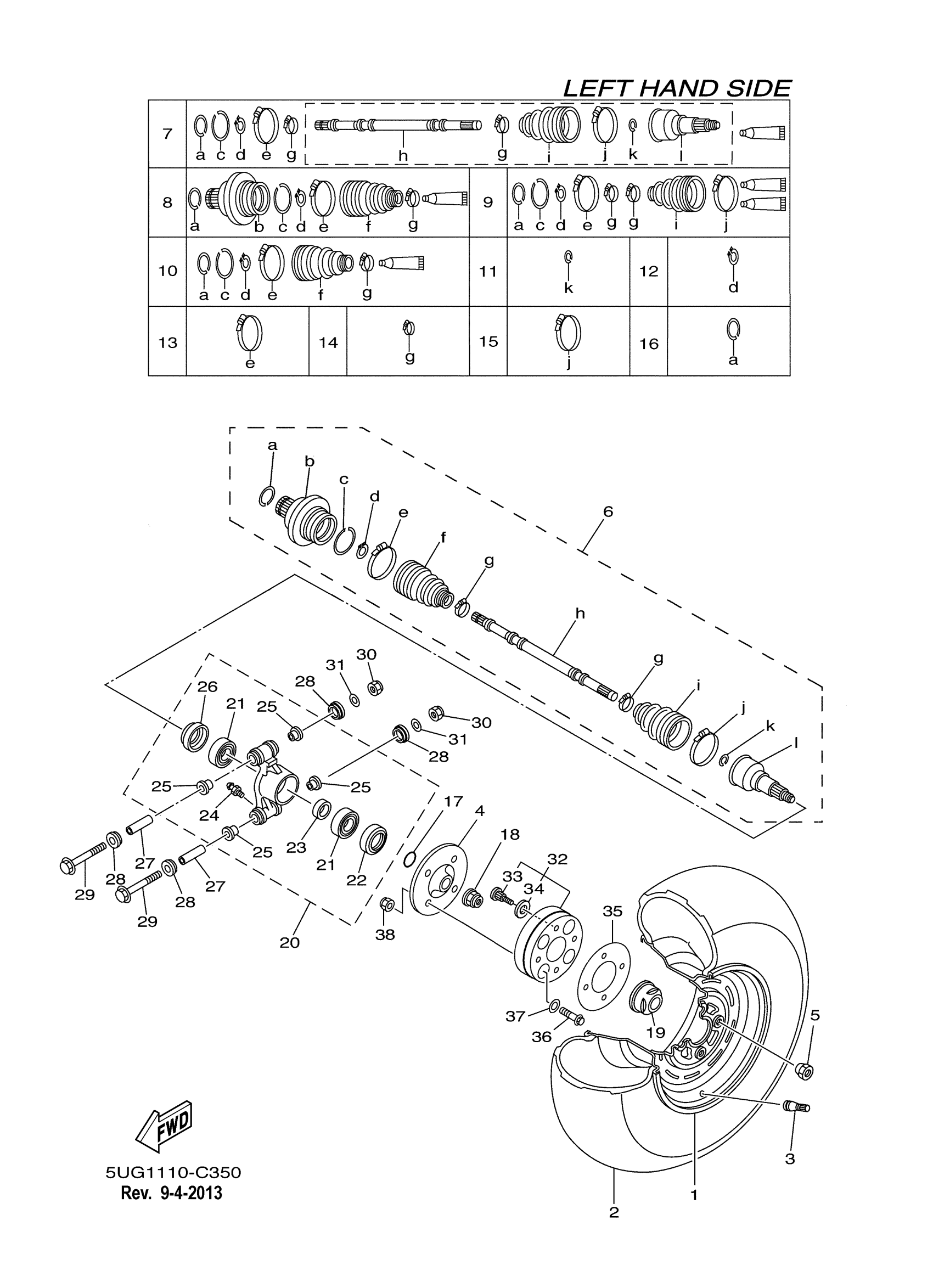

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 REAR WHEEL LEFT Diagram
#
1
REAR WHEEL COMP.
5UG-F5390-00-00
Unavailable
2
TIRE (25X10-12 NHS)
94110-12802-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB ASSY
5UG-F5310-00-00
Unavailable
5
NUT(2HR)
90179-10540-00
$5.60
6
REAR DRIVE SHAFT ASSY LH
5UG-F531H-01-00
Unavailable
7
BALL JOINT SET (LEFT REAR)
5UG-F530T-01-00
Unavailable
8
DOUBLE OFF SET JOINT
5KM-2530V-12-00
Unavailable
9
BOOT SET (BALL JOINT)
5KM-2530X-12-00
$66.99
10
BOOT SET (DOUBLE OFFSET JOINT)
5KM-2530Y-11-00
$60.99
11
CIRCLIP
4KB-2512H-00-00
$6.99
12
SNAP RING
2HR-2512J-00-00
$6.99
13
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
14
BOOT BAND (SMALL)
3HN-2512G-01-00
$11.99
15
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
$17.49
16
CLIP, SPRING
5KM-2536E-10-00
Unavailable
17
O-RING(47X)
93210-27666-00
Unavailable
18
NUT
90179-20016-00
Unavailable
19
CAP, WHEEL
5UG-F512A-00-00
Unavailable
20
REAR KNUCKLE ASSY
5UG-F530F-11-00
Unavailable
21
BEARING
93306-206Y2-00
Unavailable
22
. OIL SEAL
93106-38801-00
Unavailable
23
SPACER(2HR)
90560-30325-00
Unavailable
24
NIPPLE, GREASE
93700-06M03-00
Unavailable
25
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
26
OIL SEAL
93106-38800-00
Unavailable
27
SPACER
5KM-23448-00-00
Unavailable
28
COVER, THRUST 1
3JN-23517-00-00
Unavailable
29
BOLT, FLANGE
90105-10843-00
Unavailable
30
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
31
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
32
SPACER ASSY
42S-F53W0-00-00
Unavailable
33
BOLT, SERRATION
90114-10013-00
Unavailable
34
WASHER, PLATE
90201-12034-00
Unavailable
35
PLATE 1
5UG-2539F-00-00
Unavailable
36
BOLT, FLANGE
90105-12062-00
Unavailable
37
WASHER, PLATE
90201-14020-00
Unavailable
38
NUT, SELF-LOCKING
90185-12007-00
Unavailable
