- YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004
REAR MASTER CYLINDER

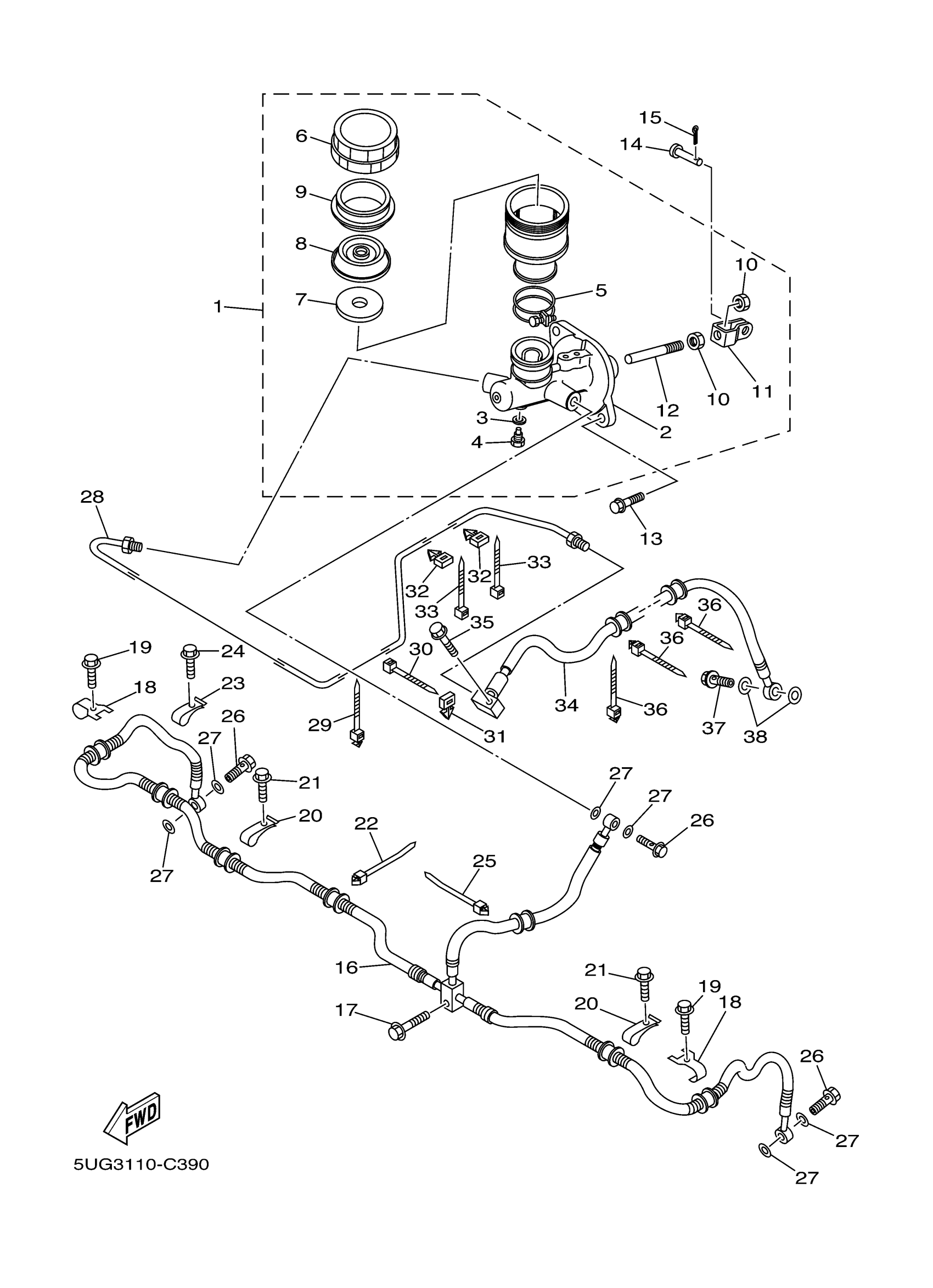

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 REAR MASTER CYLINDER Diagram
#
1
MASTER CYLINDER ASSY
5UG-2583T-00-00
$305.99
2
CYLINDER KIT, MASTER
5UG-W0042-00-00
$97.99
3
WASHER, OIL BOLT
5UG-25878-00-00
Unavailable
4
BOLT, OIL 1
5UG-25877-00-00
$0.99
5
BAND
5UG-25719-00-00
$6.99
6
CAP, RESERVOIR
5UG-25852-00-00
$17.49
7
FLOAT, RESERVOIR
5UG-25853-00-00
$10.99
8
DIAPHRAGM, RESERVOIR
5UG-25854-00-00
$9.99
9
BUSH,DIAPHRAGM
5UG-25855-00-00
$5.49
10
NUT, HEXAGON SMALL
95317-08700-00
$9.49
11
JOINT
2YK-27222-00-00
$21.99
12
PUSH ROD COMP.
5UG-25880-00-00
Unavailable
13
BOLT, WASHER BASED(JN9)
90105-081A7-00
$8.49
14
PIN, CLEVIS(2YK)
90240-08124-00
$7.49
15
PIN, COTTER
91490-20025-00
$1.99
16
HOSE,BRAKE 1
5UG-F5872-03-00
Unavailable
17
BOLT, FLANGE
95817-06025-00
Unavailable
18
HOLDER, BRAKE HOSE
5ND-F5875-01-00
Unavailable
19
BOLT, FLANGE
95817-06012-00
Unavailable
20
BAND
5UG-F3192-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
Unavailable
22
CLAMP(JN6)
90464-31827-00
Unavailable
23
BAND
5UG-F3192-00-00
Unavailable
24
BOLT, FLANGE
95817-06016-00
Unavailable
25
CLAMP
90464-25800-00
Unavailable
26
BOLT, UNION(3GM)
90401-10159-00
Unavailable
27
WASHER, PLATE(481)
90201-10118-00
Unavailable
28
PIPE, BRAKE
5UG-F5871-00-00
Unavailable
29
CLAMP
90464-25800-00
Unavailable
30
CLAMP(JN6)
90464-31827-00
Unavailable
31
HOLDER
5UG-F2465-00-00
Unavailable
32
HOLDER
5UG-F2465-00-00
Unavailable
33
CLAMP(JN6)
90464-31827-00
Unavailable
34
HOSE,BRAKE 2
5UG-F5873-10-00
Unavailable
35
BOLT, FLANGE
95817-06025-00
Unavailable
36
CLAMP
90464-25800-00
Unavailable
37
BOLT, UNION(3GM)
90401-10159-00
Unavailable
38
WASHER, PLATE(481)
90201-10118-00
Unavailable
