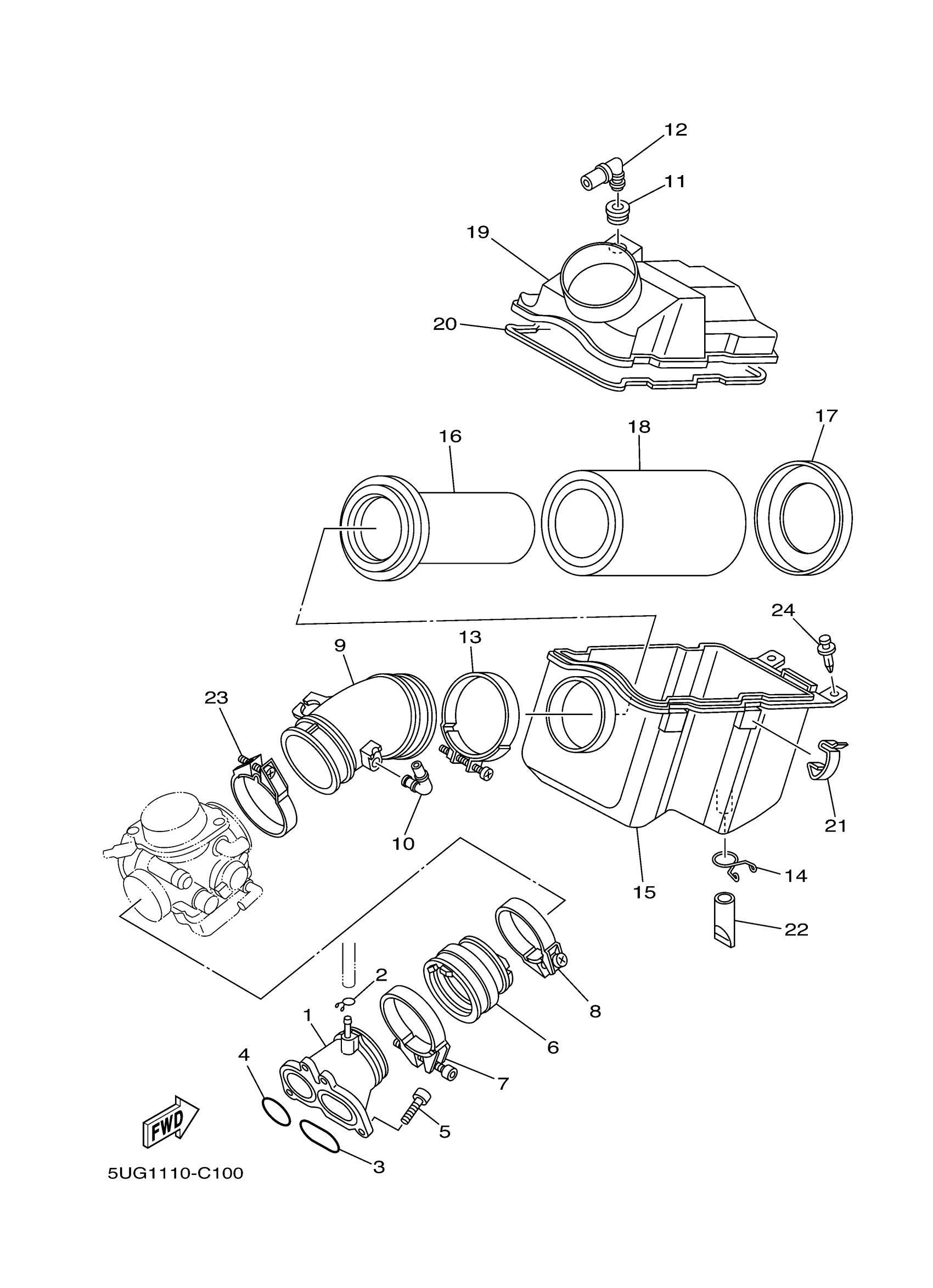

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5UG-13586-00-00

Unavailable

2

CLIP (8L2)

90467-08017-00

$10.49

3

O-RING (10L)

93210-44545-00

$13.49

4

O-RING(4HM)

93210-321A8-00

$5.60

5

BOLT,SOCKET

91317-06020-00

Unavailable

6

JOINT, CARBURETOR 2

5KM-13596-00-00

$63.99

7

CLAMP, HOSE 1

1D6-11387-00-00

$11.99

8

HOSE CLAMP ASSY

90450-62006-00

$12.49

9

JOINT, AIR CLEANER 1

5UG-E4453-00-00

Unavailable

10

PIPE

31A-14419-00-00

$7.99

11

GROMMET

31A-14435-01-00

$4.47

12

PIPE

5KM-14419-00-00

Unavailable

13

HOSE CLAMP ASSY

90450-75002-00

$11.49

14

CLIP, DRAIN CLEANER

5UH-E4438-01-00

$3.76

15

CASE, AIR CLEANER 1

5UG-E4411-00-00

Unavailable

16

GUIDE (INSIDE AIR FILTER)

5UG-E4458-00-00

Unavailable

17

PLATE,ELEMENT FIT (END CAP)

5UH-E4468-00-00

Unavailable

18

ELEMENT, AIR CLEAN

5UG-E4451-00-00

Unavailable

19

CAP, CLEANER CASE

5UG-E4412-01-00

Unavailable

20

SEAL

5UG-E4462-00-00

Unavailable

21

CLIP, CAP FITTING

5UH-E4424-00-00

Unavailable

22

PIPE, DRAIN

5UG-E4769-00-00

Unavailable

23

HOSE CLAMP ASSY

90450-67002-00

Unavailable

24

RIVET

90269-08813-00

Unavailable
