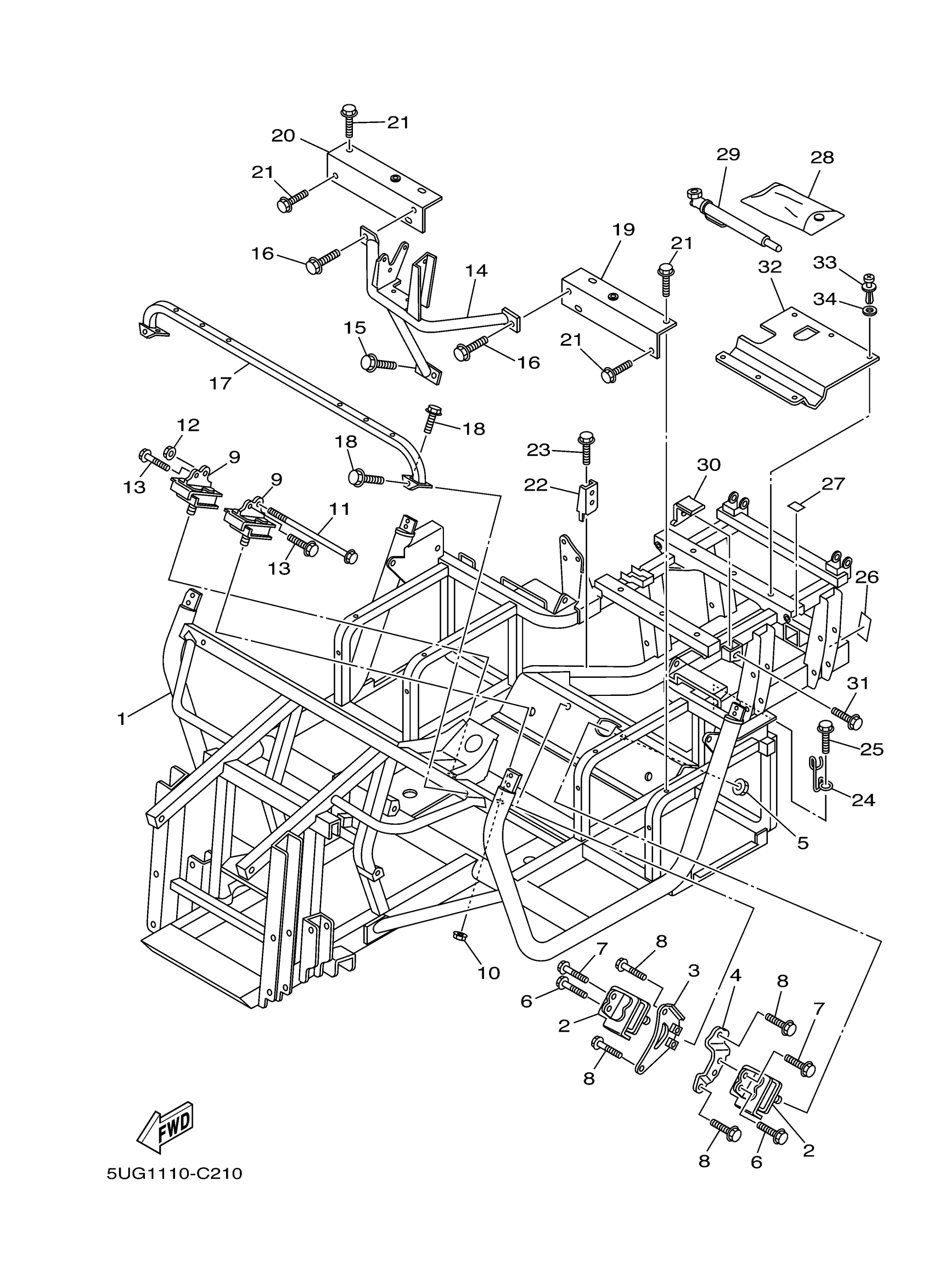

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5UG-F1110-19-00

Unavailable

1

FRAME COMP.

5UG-F1110-19-00

Unavailable

2

DAMPER, RUBBER 1

5UG-21485-00-00

Unavailable

3

STAY, ENGINE 2

5KM-21315-00-00

$20.99

4

STAY, ENGINE 3

5KM-21316-00-00

Unavailable

5

NUT, SELF-LOCKING(3KJ)

90185-10154-00

$8.49

6

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

7

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

8

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

9

DAMPER 2

5UG-21486-00-00

Unavailable

10

NUT, SELF-LOCKING(3KJ)

90185-10154-00

$8.49

11

BOLT, WASHER BASED(42X)

90105-10300-00

$12.49

12

NUT, SELF-LOCKING(3KJ)

90185-10154-00

$8.49

13

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

14

REINFORCEMENT, FRAME 1

5UG-F1986-00-00

Unavailable

15

BOLT, FLANGE

95817-06016-00

Unavailable

16

BOLT, FLANGE

95817-10020-00

Unavailable

17

SUPPORTER

2P5-F1145-01-00

Unavailable

18

BOLT, FLANGE

95817-08012-00

Unavailable

19

SUPPORT, SEAT

5UG-F114H-01-00

Unavailable

20

SUPPORT, SEAT

5UG-F114J-01-00

Unavailable

21

BOLT, FLANGE

95817-08012-00

Unavailable

22

BRKT.

5UG-F116B-00-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

HOLDER, CLUTCH CABLE

5UG-F1163-00-00

Unavailable

25

BOLT, FLANGE

95817-06016-00

Unavailable

26

LABEL 7

5UG-F151K-02-00

Unavailable

27

LABEL 6

5UG-F151J-00-00

Unavailable

28

TOOL KIT

5ND-F8100-00-00

Unavailable

29

GAUGE, AIR

5UG-F811A-00-00

Unavailable

30

BODY, LATCH 2

5UG-K7172-01-00

Unavailable

31

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

32

INSULATOR, HEAT

5UG-F2898-00-00

Unavailable

33

RIVET

90269-06800-00

Unavailable

34

WASHER, PLATE

90201-068G0-00

Unavailable
