Description

Price

1

PIPE, EXHAUST 1

5UG-E4611-01-00

Unavailable

2

NUT (22U)

90179-08410-00

$9.49

3

GASKET, EXHAUST PIPE

3YF-14613-01-00

$13.49

4

MUFFLER ASSY 1

5UG-E4710-01-00

Unavailable

5

BOLT,SOCKET

91380-06010-00

$8.49

6

. BOLT

5UG-E4777-00-00

Unavailable

7

WASHER

5ND-E4759-00-00

$6.49

8

. GASKET, SILENCER

5UG-E4755-00-00

Unavailable

9

STAY, EXHAUST PIPE

5UG-E4639-00-00

$10.99

10

BOLT, FLANGE

95817-06020-00

$3.81

11

WASHER, PLATE (8K2)

90201-06778-00

$4.46

12

DAMPER, MUFFLER

5UG-14737-00-00

$16.49

13

COLLAR (36R)

90387-066J1-00

$8.49

14

WASHER, PLATE 8221447500

90201-06057-00

$5.60

15

WASHER, PLATE

90201-05016-00

$4.46

16

BOLT, FLANGE

95817-06035-00

Unavailable

17

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

18

MUFF STAY SUB-KUMI

5UG-F1440-00-00

Unavailable

19

DAMPER,FOOTREST

1HP-F7414-00-00

Unavailable

20

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

21

WASHER (29L)

90209-08249-00

Unavailable

22

BOLT, FLANGE

95817-08040-00

Unavailable

23

WASHER, PLATE

90201-07008-00

Unavailable

24

. MUFFLER

5UG-E4711-01-00

Unavailable

25

. PIPE, OUTLET

5UG-E4752-00-00

Unavailable

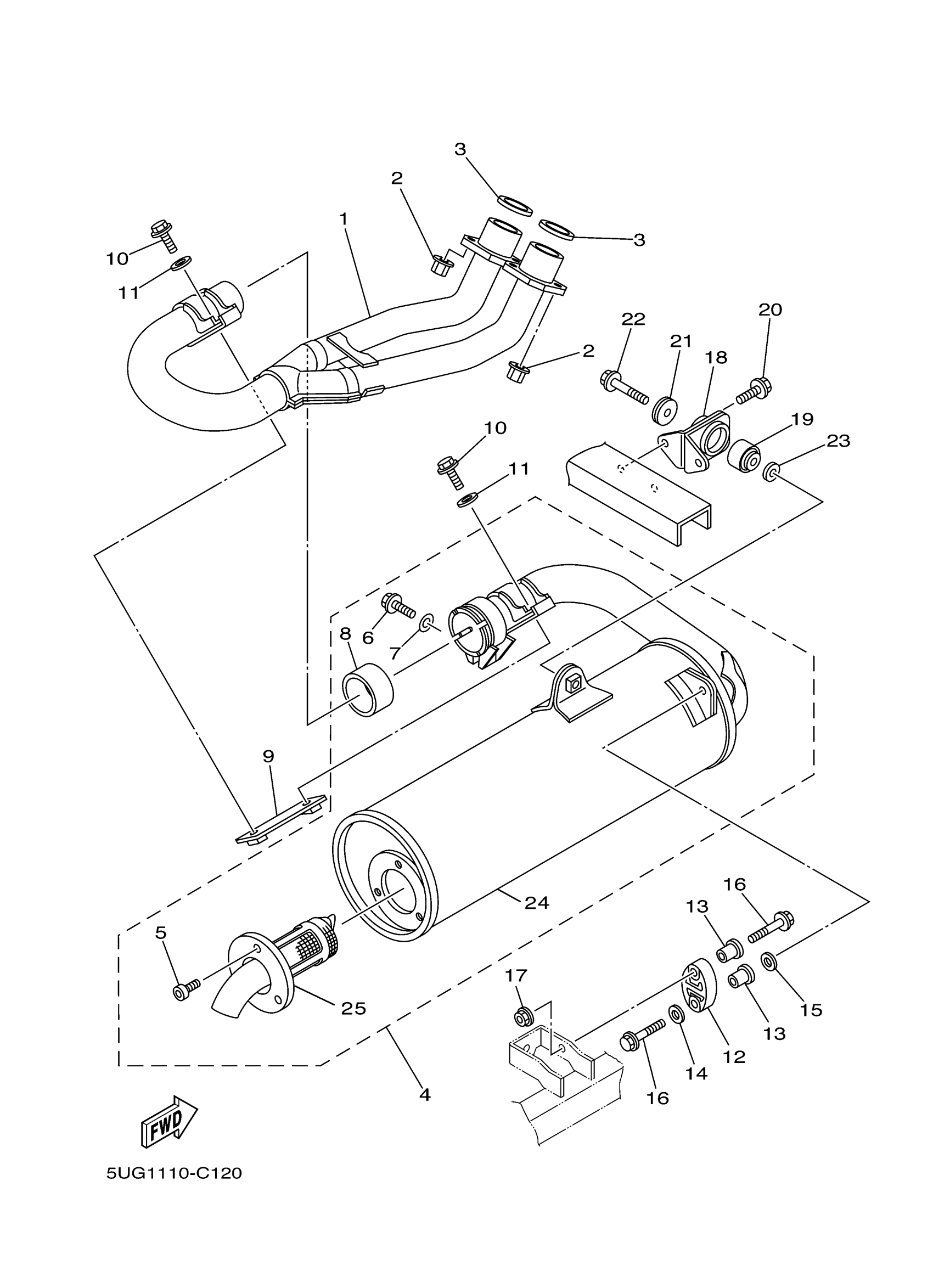

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 EXHAUST Diagram

PIPE, EXHAUST 1

NUT (22U)

GASKET, EXHAUST PIPE

MUFFLER ASSY 1

BOLT,SOCKET

. BOLT

WASHER

. GASKET, SILENCER

STAY, EXHAUST PIPE

BOLT, FLANGE

WASHER, PLATE (8K2)

DAMPER, MUFFLER

COLLAR (36R)

WASHER, PLATE 8221447500

WASHER, PLATE

BOLT, FLANGE

NUT, FLANGE(4MV)

MUFF STAY SUB-KUMI

DAMPER,FOOTREST

BOLT, FLANGE(JN5)

WASHER (29L)

BOLT, FLANGE

WASHER, PLATE

. MUFFLER

. PIPE, OUTLET
