- YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004
ELECTRICAL 2

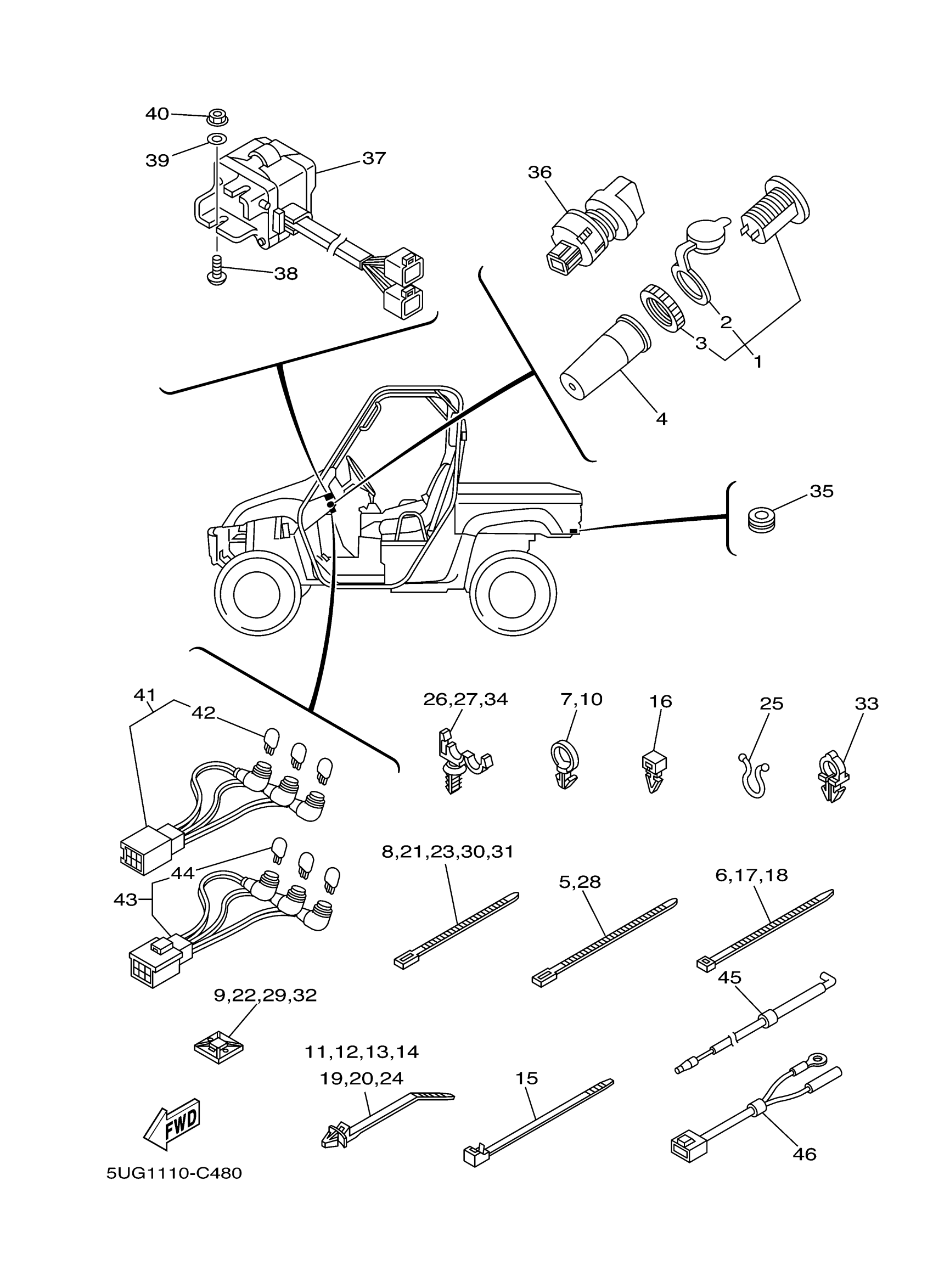

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 ELECTRICAL 2 Diagram
#
1
TERMINAL ASSY
5FU-H1920-10-00
$47.99
2
COVER
5FU-H1942-10-00
$10.99
3
NUT
5FU-H191B-10-00
$1.82
4
COVER,CONNECTER
5FU-H2599-01-00
$6.99
5
CLAMP(JN6)
90464-40825-00
$3.05
6
CLAMP
90464-48800-00
Unavailable
7
CLAMP
90464-19815-00
Unavailable
8
CLAMP(JN6)
90464-31827-00
$3.40
9
BASE, MOUNTING
5UG-F2881-00-00
Unavailable
10
CLAMP
90464-19815-00
Unavailable
11
CLAMP
90464-25800-00
Unavailable
12
CLAMP
90464-25800-00
Unavailable
13
CLAMP
90464-25800-00
Unavailable
14
CLAMP
90464-25800-00
Unavailable
15
CLAMP
90464-51800-00
$14.99
16
HOLDER
5UG-F2465-00-00
Unavailable
17
CLAMP
90464-48800-00
Unavailable
18
CLAMP
90464-48800-00
Unavailable
19
CLAMP
90464-25800-00
Unavailable
20
CLAMP
90464-25800-00
Unavailable
21
CLAMP(JN6)
90464-31827-00
$3.40
22
BASE, MOUNTING
5UG-F2881-00-00
Unavailable
23
CLAMP(JN6)
90464-31827-00
$3.40
24
CLAMP
90464-25800-00
Unavailable
25
CLAMP
90464-14800-00
Unavailable
26
CLAMP
90464-12830-00
Unavailable
27
CLAMP
90464-12830-00
Unavailable
28
CLAMP(JN6)
90464-40825-00
$3.05
29
BASE, MOUNTING
5UG-F2881-00-00
Unavailable
30
CLAMP(JN6)
90464-31827-00
$3.40
31
CLAMP(JN6)
90464-31827-00
$3.40
32
BASE, MOUNTING
5UG-F2881-00-00
Unavailable
33
CLAMP
90464-12830-00
Unavailable
34
CLAMP
90464-12830-00
Unavailable
35
GROMMET(2GH)
90480-12475-00
Unavailable
36
SWITCH, LAMP
5UG-H2526-00-00
Unavailable
37
Switch, Handle 1
5UG-83976-12-00
Unavailable
38
SCREW(3YF)
90149-05299-00
Unavailable
39
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
40
NUT, NYLON
95707-05300-00
Unavailable
41
PILOT LIGHT ASSY
5UG-83530-10-00
Unavailable
42
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
43
PILOT LIGHT ASSY
5UG-83530-01-00
Unavailable
44
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
45
WIRE, LEAD
5KM-82541-00-00
Unavailable
46
WIRE, SUB LEAD
5KM-82509-10-00
Unavailable
