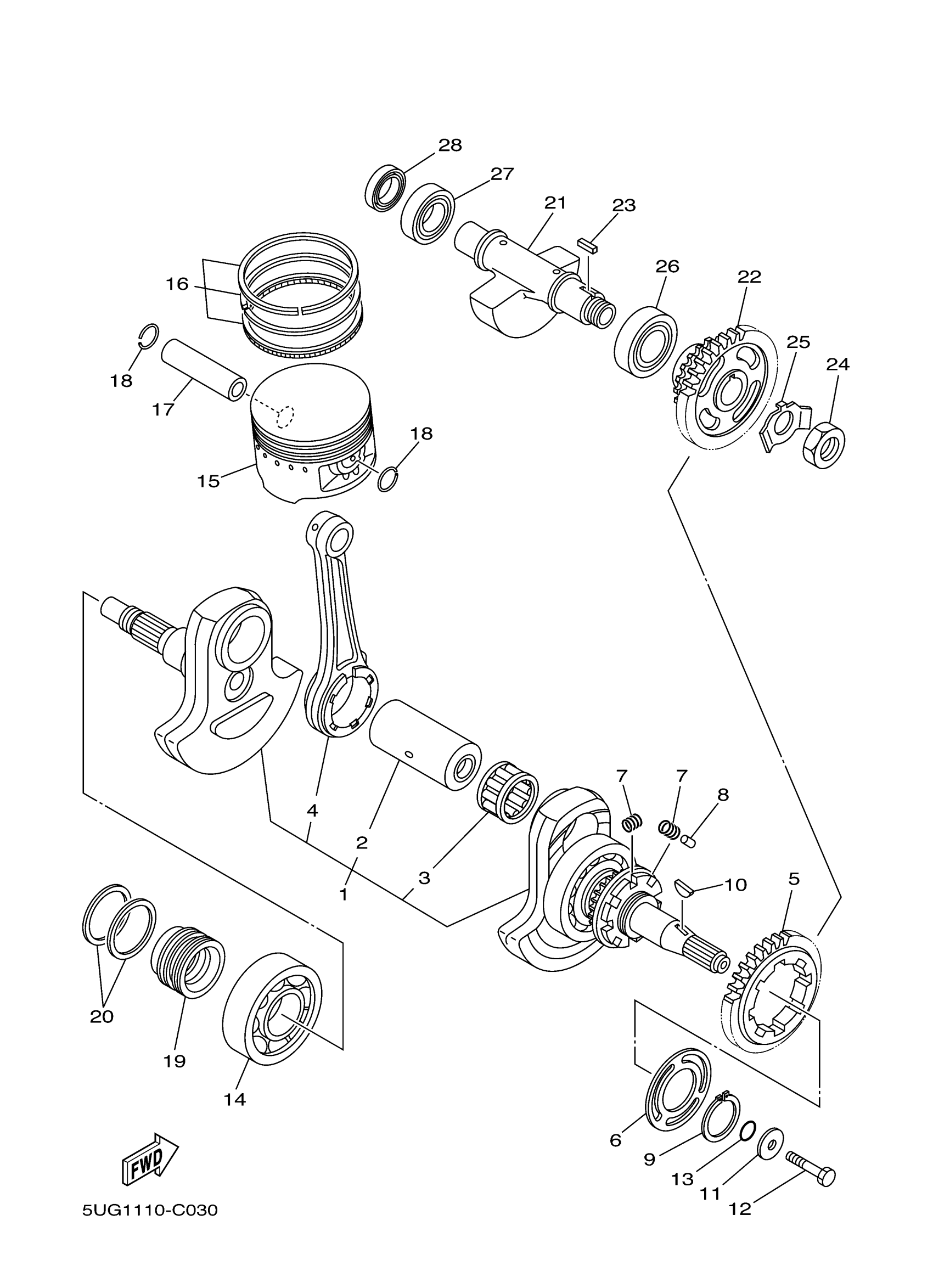

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5KM-11400-00-00

$1,060.99

2

PIN, CRANK 1

5KM-11681-00-00

$96.99

3

BEARING, CYLINDRICAL(3YF)

93310-637D3-00

$83.99

4

ROD, CONNECTING

5LP-11651-00-00

$136.99

5

GEAR, DRIVE

5KM-11536-10-00

Unavailable

6

WASHER, BEARING COVER

5KM-11565-00-00

$14.49

7

SPRING, COMPRESSION

90501-220A1-00

$7.49

8

PIN, DOWEL

93606-09002-00

$4.14

9

CIRCLIP(6U2)

93410-35M10-00

$7.49

10

KEY, WOODRUFF

90280-05001-00

$12.49

11

WASHER, PLATE (856)

90201-10321-00

$8.49

12

BOLT (21V)

90101-10568-00

$5.60

13

O-RING (538)

93210-16290-00

Unavailable

14

BEARING (3GV)

93306-30702-00

$74.99

15

PISTON (STD)

2C6-11631-00-X0

$128.99

15

PISTON (0.50MM O/S)

2C6-11636-00-00

Unavailable

15

PISTON (1.00MM O/S)

2C6-11638-00-00

Unavailable

16

PISTON RING SET (STD)

2C6-11603-10-00

Unavailable

16

PISTON RING SET (0.50MM O/S)

2C6-11605-10-00

Unavailable

16

PISTON RING SET (1.00MM O/S)

2C6-11607-10-00

Unavailable

17

PIN, PISTON

3YF-11633-01-00

Unavailable

18

CIRCLIP 256116340000

93450-24028-00

Unavailable

19

SPACER 1

5KM-16181-00-00

Unavailable

20

SEAL, CRANK

5KM-11447-00-00

Unavailable

21

WEIGHT 1

5KM-11454-10-00

Unavailable

22

BALANCER WEIGHT GEAR COMP.

5KM-11530-00-00

Unavailable

23

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable

24

NUT

90170-18003-00

Unavailable

25

WASHER, LOCK

90215-18001-00

Unavailable

26

BEARING(3RR)

93306-30560-00

Unavailable

27

BEARING (6304YA1-9TC4)

93306-30442-00

Unavailable

28

OIL SEAL (20X30X7-371)

93102-20108-00

Unavailable
