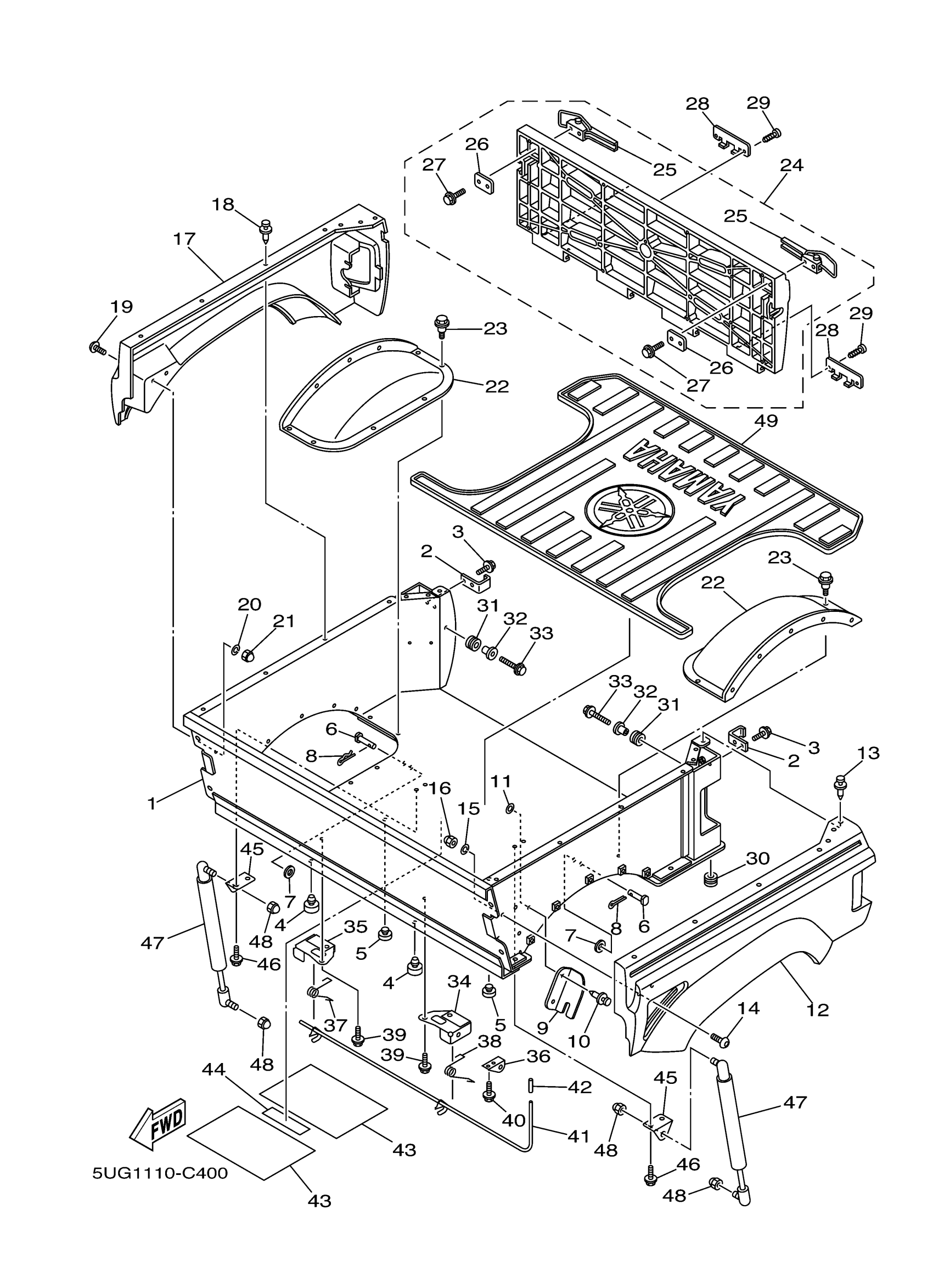

Yamaha YXR660FAHS (RHINO HARDWOODS CAMO) 5UG3 2004 CARRIER Diagram
#
1
CARRIER BOX ASSY KIT
2P5-F4850-02-KT
Unavailable
2
STOPPER, 1
5UG-K7521-01-00
Unavailable
3
BOLT, FLANGE
95817-06016-00
$2.75
4
STOPPER, MAIN STAND
116-27114-00-00
$10.99
5
STOPPER, MAIN STAND
128-27114-00-00
$7.99
6
PIN, CLEVIS
90240-12002-00
$11.49
7
WASHER, PLATE(55K)
90201-127J6-00
$8.49
8
PIN, COTTER
91401-30025-00
$8.49
9
GUARD, LEVER
5UG-F6123-00-00
Unavailable
10
RIVET
90269-06800-00
$2.18
11
WASHER, PLATE
90201-068G6-00
Unavailable
12
PANEL, REAR FENDER (CAMO LEFT)
5UG-K8193-F0-00
Unavailable
13
RIVET
90269-06800-00
$2.18
14
SCREW(3LD)
90149-06280-00
$5.60
15
WASHER, SPRING
92995-06100-00
Unavailable
16
NUT(4MY)
95307-06800-00
Unavailable
17
PANEL, REAR FENDER (CAMO RIGHT
5UG-K8194-F0-00
Unavailable
18
RIVET
90269-06800-00
$2.18
19
SCREW(3LD)
90149-06280-00
$5.60
20
WASHER, SPRING
92995-06100-00
Unavailable
21
NUT(4MY)
95307-06800-00
Unavailable
22
GUARD, MUD
5UG-F152R-01-00
Unavailable
23
BOLT(3KJ)
90109-063F5-00
Unavailable
24
REAR STORAGE LID C
5UG-K810N-21-00
Unavailable
25
LATCH
5UG-F389E-00-00
Unavailable
26
. PLATE, BACK UP
5UG-K7527-00-00
Unavailable
27
BOLT, FLANGE
95817-06025-00
Unavailable
28
COVER, HINGE
5UG-F4669-00-00
Unavailable
29
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
30
GROMMET(2GH)
90480-12475-00
Unavailable
31
GROMMET (4V1)
90480-18290-00
Unavailable
32
COLLAR (36R)
90387-066J1-00
Unavailable
33
BOLT, FLANGE
95817-06025-00
Unavailable
34
PLATE 1
5UG-K7185-00-00
Unavailable
35
PLATE 2
5UG-K7186-00-00
Unavailable
36
HOLDER, LATCH
5UG-K7175-00-00
Unavailable
37
SPRING, TORSION
90508-18840-00
Unavailable
38
SPRING, TORSION
90508-18841-00
Unavailable
39
BOLT, FLANGE
9582P-08020-00
Unavailable
40
BOLT, FLANGE
95817-06016-00
$2.75
41
LATCH ASSY
5UG-K7180-00-00
Unavailable
42
CAP, PROTECTOR END 4
JJ3-K818M-00-00
Unavailable
43
INSULATOR, SIDE COVER
5UG-F174A-00-00
Unavailable
44
INSULATOR, SIDE COVER 2
5UG-F174T-00-00
Unavailable
45
BRACKET, DAMPER
5UG-F1798-10-00
Unavailable
46
BOLT, FLANGE
95817-06016-00
$2.75
47
DAMPER 1
5UG-F8415-00-00
Unavailable
48
NUT, SELF-LOCKING
95602-08200-00
Unavailable
49
MAT
5UG-F483J-00-00
Unavailable
