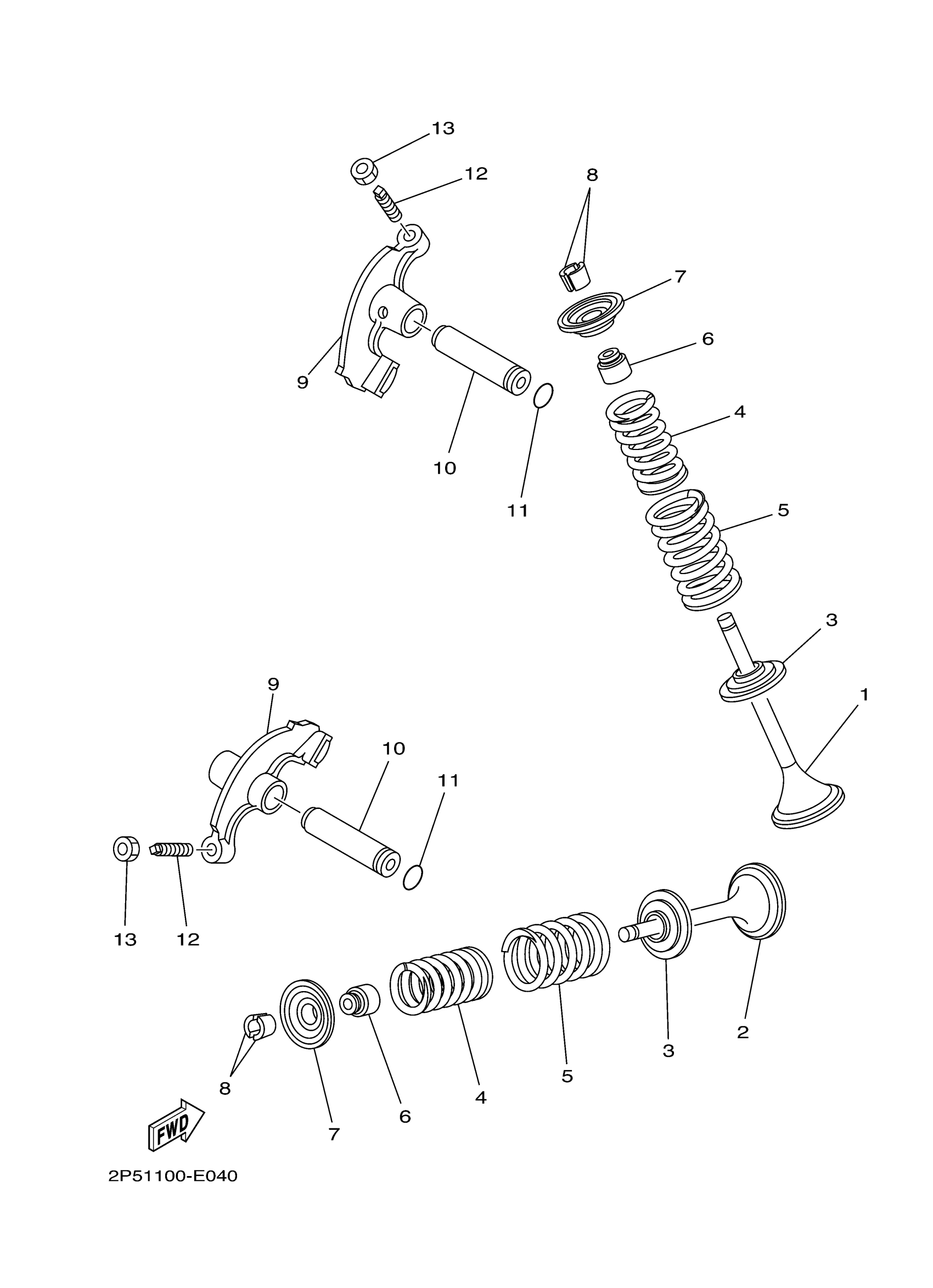

Yamaha YXR45FYR (RHINO 450) 2P5G0 2009 VALVE Diagram

VALVE, INTAKE

5GH-12111-00-00

$67.31

VALVE, EXHAUST

5GH-12121-00-00

$72.85

SEAT, VALVE SPRING

3Y1-12116-00-00

$14.25

SPRING, VALVE INNER

22U-12113-00-00

Unavailable

SPRING, VALVE OUTER

1UY-12114-01-00

$21.42

SEAL, VALVE STEM 2

M01-12129-00-00

$12.17

RETAINER, VALVE SPRING

3Y1-12117-01-00

$15.04

LOCK, VALVE SPRING

1J7-12118-00-00

$6.43

ARM, VALVE ROCKER

3GD-12151-00-00

$53.63

SHAFT, ROCKER

3Y1-12156-00-00

$60.32

O-RING (1J7)

93210-09350-00

$5.82

SCREW, VALVE ADJUSTING

31G-12159-02-00

$8.54

NUT, LOCK

31G-12158-00-00

$5.75
