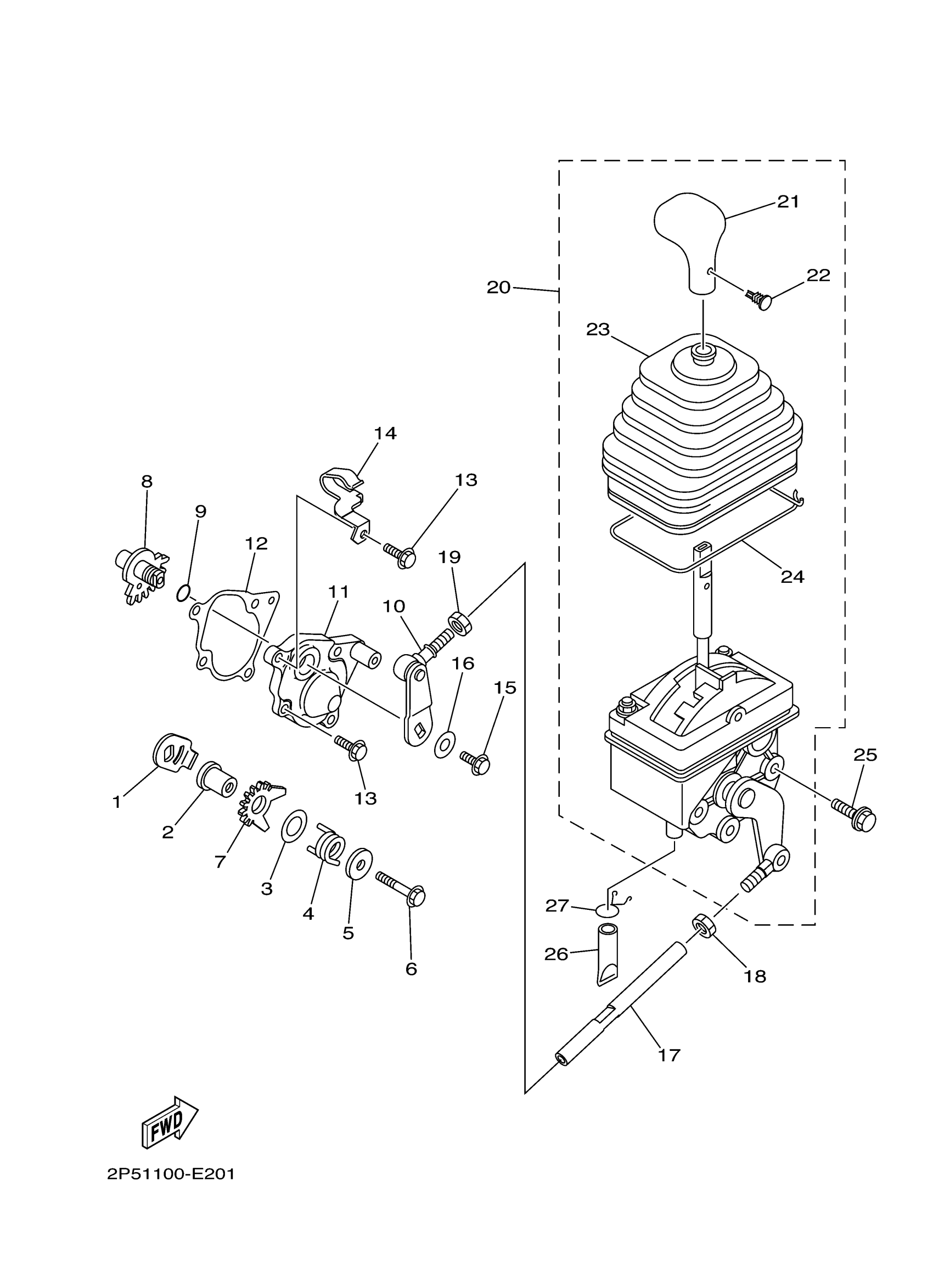

Yamaha YXR45FYR (RHINO 450) 2P5G0 2009 SHIFT SHAFT Diagram
#
Description
Price
1
LEVER
4SH-18198-00-00
$22.99
2
COLLAR
90387-0613B-00
$9.49
3
WASHER, PLATE
90201-13013-00
$8.49
4
SPRING, TORSION(1YW)
90508-35764-00
$5.60
5
WASHER, PLATE
90201-06036-00
$8.49
6
95812-06035
95812-06035-00
$4.94
7
LEVER
5KM-18191-00-00
$24.99
8
SHAFT
5GH-18197-00-00
Unavailable
9
O-RING (P95)
93210-11073-00
$7.49
10
SHIFT GUIDE COMP.
2P5-18104-00-00
Unavailable
11
COVER, SHIFT SHAFT
5GH-18129-01-00
Unavailable
12
GASKET, LEVER STOP
5GH-18146-00-00
$5.49
13
BOLT(7U8)
97080-06020-00
Unavailable
14
CLAMP(3JD)
90465-08336-00
$10.49
15
BOLT, FLANGE
90105-06175-00
$3.55
16
WASHER, PLATE
90201-06036-00
$8.49
17
ROD, SHIFT
2P5-18115-10-00
Unavailable
18
NUT(1KT)
90170-08358-00
Unavailable
19
. NUT
95380-08700-00
Unavailable
20
SHIFTER ASSY
5UG-18300-12-00
Unavailable
21
KNOB, SHIFT LEVER
5UG-18174-00-00
Unavailable
22
RIVET(81E)
90269-05055-00
Unavailable
23
BOOTS, SEALING
5GH-18131-00-00
Unavailable
24
STOPPER, RUBBER
5GH-18617-00-00
Unavailable
25
BOLT, FLANGE
95817-08012-00
Unavailable
26
PIPE, DRAIN
4GY-1443E-00-00
Unavailable
27
CLIP (806-24358-00)
90467-15012-00
Unavailable
