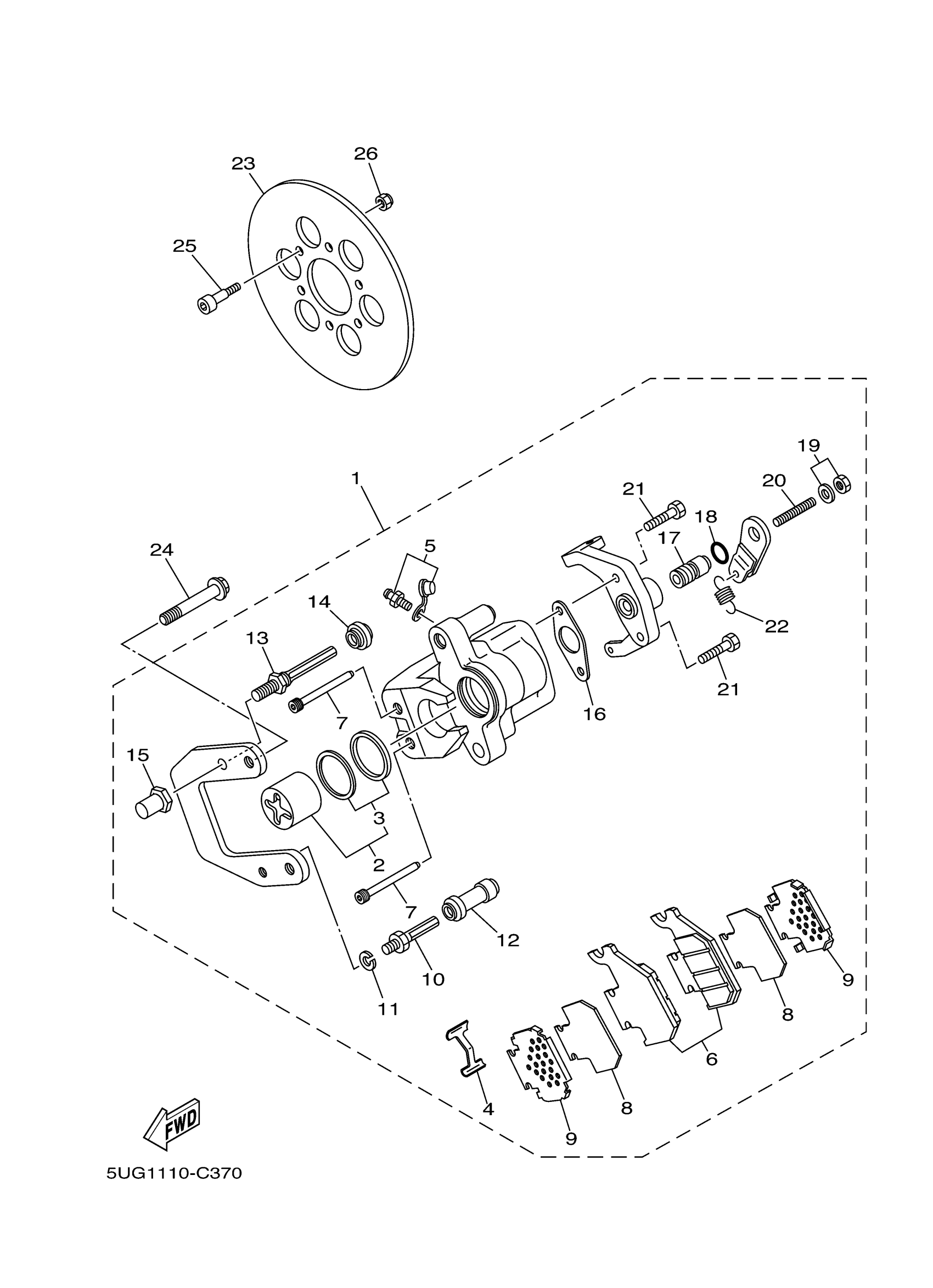

Yamaha YXR45FYR (RHINO 450) 2P5G0 2009 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR 1

5UG-2580V-02-00

Unavailable

2

PISTON ASSY, CALIPER

5UG-W0057-00-00

$71.27

3

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

4

SUPPORT, PAD

4GY-25919-50-00

Unavailable

5

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

6

BRAKE PAD KIT 2

5UG-W0046-01-00

$44.23

7

PIN, PAD

5GH-25924-00-00

Unavailable

8

SHIM, CALIPER

5UG-25827-00-00

$23.43

9

SHIM, CALIPER

5GH-25828-00-00

$14.25

10

BOLT

1UY-25926-51-00

$3.34

11

WASHER, SPRING

1UY-25938-51-00

Unavailable

12

BOOT 2

1UY-25937-51-00

$12.27

13

BOLT

3JD-25926-00-00

$6.43

14

BOOT, CALIPER

3JD-25917-00-00

$7.51

15

NUT

3JD-25961-00-00

$6.94

16

GASKET

5UG-25898-00-00

Unavailable

17

SHAFT

5UG-25978-00-00

Unavailable

18

RUBBER, BUSHING

5UG-25975-00-00

Unavailable

19

NUT

5UG-25973-00-00

Unavailable

20

. ADJUSTBOLT

5UG-25972-00-00

Unavailable

21

BOLT, FITTING

5UG-25833-00-00

Unavailable

22

SPRING, RETURN

5UG-25977-00-00

Unavailable

23

DISC, BRAKE (RIGHT

5UG-F5831-00-00

Unavailable

24

BOLT, WASHER BASED(1KT)

90105-10402-00

Unavailable

25

BOLT

90109-06242-00

Unavailable

26

NUT, SELF-LOCKING

95617-06100-00

Unavailable
