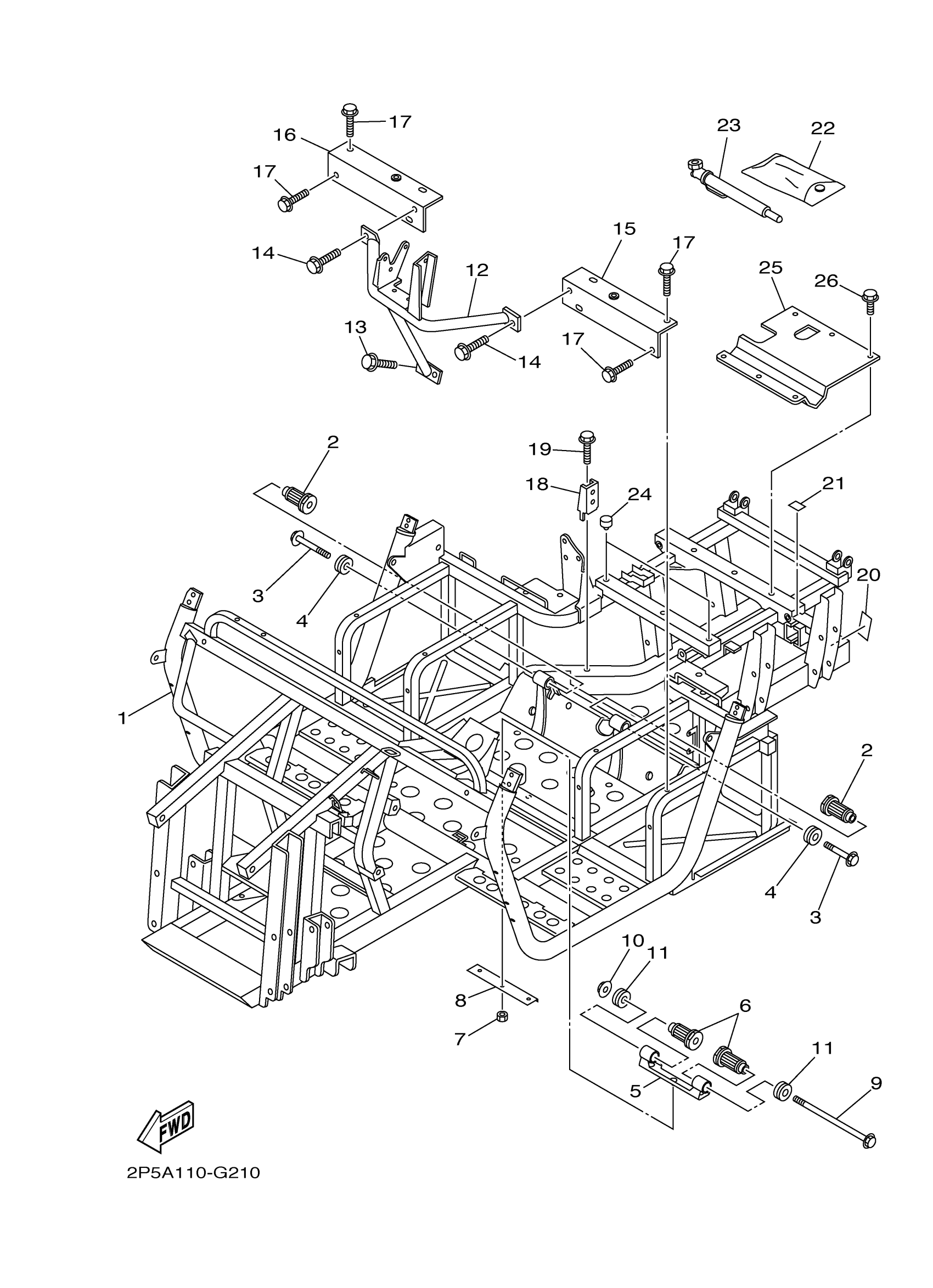

Yamaha YXR45FYR (RHINO 450) 2P5G0 2009 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2P5-F1110-20-00

Unavailable

2

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

3

BOLT, FLANGE

95812-10080-00

$6.84

4

DAMPER 2

5ND-F1486-00-00

$9.07

5

STAY, ENGINE 2

2P5-F1315-00-00

Unavailable

6

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

7

NUT, SELF-LOCKING

95602-08200-00

$2.73

8

BRACKET, UNDER

2P5-F2229-00-00

Unavailable

9

BOLT, FLANGE

90105-10284-00

$7.14

10

NUT, S/L FLANGE

95602-10200-00

$2.18

11

DAMPER 2

5ND-F1486-00-00

$9.07

12

REINFORCEMENT, FRAME 1

5UG-F1986-00-00

Unavailable

13

BOLT, FLANGE

90105-06831-00

$1.49

14

BOLT, FLANGE

95817-10020-00

$6.08

15

SUPPORT, SEAT

5UG-F114H-01-00

$19.20

16

SUPPORT, SEAT

5UG-F114J-01-00

Unavailable

17

BOLT, FLANGE

90105-08867-00

Unavailable

18

BRKT.

5UG-F116B-00-00

$10.35

19

BOLT, FLANGE

90105-06831-00

$1.49

20

LABEL 7

5B4-F151K-00-00

Unavailable

21

LABEL 6

5UG-F151J-00-00

Unavailable

22

TOOL KIT

5ND-F8100-00-00

$19.27

23

GAUGE, AIR

5UG-F811A-00-00

$7.21

24

STOPPER, MAIN STAND

5UG-F7114-00-00

Unavailable

25

INSULATOR, HEAT

5UG-F2898-00-00

Unavailable

26

BOLT, FLANGE

90105-06831-00

$1.49
