- YXR45FYR (RHINO 450) 2P5G0 2009
ELECTRICAL 2

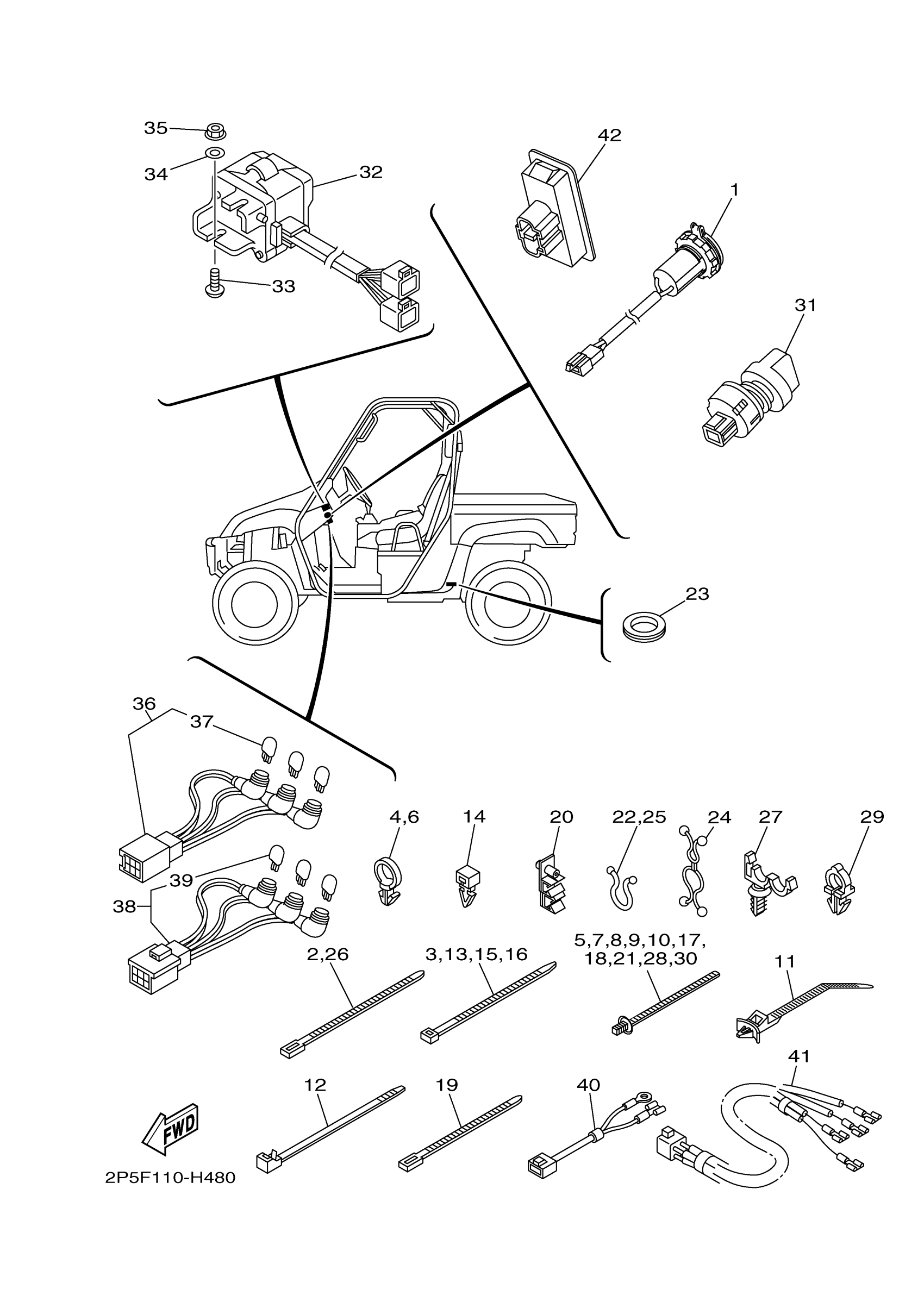

Yamaha YXR45FYR (RHINO 450) 2P5G0 2009 ELECTRICAL 2 Diagram
#
1
TERMINAL COMP.
1HP-H254B-10-00
$18.99
2
CLAMP(JN6)
90464-40825-00
$3.05
3
CLAMP
90464-48800-00
Unavailable
4
CLAMP
90464-19815-00
Unavailable
5
CLAMP
90464-20005-00
Unavailable
6
CLAMP
90464-19815-00
Unavailable
7
CLAMP
90464-20005-00
Unavailable
8
CLAMP
90464-20005-00
Unavailable
9
CLAMP
90464-20005-00
Unavailable
10
CLAMP
90464-20005-00
Unavailable
11
CLAMP
90464-38800-00
$5.60
12
CLAMP
90464-51800-00
$14.99
13
CLAMP
90464-48800-00
Unavailable
14
HOLDER
5UG-F2465-00-00
Unavailable
15
CLAMP
90464-48800-00
Unavailable
16
CLAMP
90464-48800-00
Unavailable
17
CLAMP
90464-20005-00
Unavailable
18
CLAMP
90464-20005-00
Unavailable
19
CLAMP(JN6)
90464-31827-00
Unavailable
20
CLAMP
5UG-F481H-00-00
Unavailable
21
CLAMP
90464-20005-00
Unavailable
22
CLAMP
90464-20804-00
Unavailable
23
GROMMET
90480-25856-00
Unavailable
24
CLAMP(3XV)
90464-29179-00
Unavailable
25
CLAMP
90464-20804-00
Unavailable
26
CLAMP(JN6)
90464-40825-00
$3.05
27
CLAMP
90464-12830-00
Unavailable
28
CLAMP
90464-20005-00
Unavailable
29
CLAMP
90464-12830-00
Unavailable
30
CLAMP
90464-20005-00
Unavailable
31
SWITCH, LAMP
5UG-H2526-00-00
Unavailable
32
SWITCH, HANDLE 1
5UG-83976-23-00
Unavailable
33
SCREW(3YF)
90149-05299-00
Unavailable
34
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
35
NUT, NYLON
95707-05300-00
Unavailable
36
PILOT LIGHT ASSY
5UG-83530-10-00
Unavailable
37
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
38
PILOT LIGHT ASSY
5UG-83530-01-00
Unavailable
39
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
40
WIRE, SUB LEAD
5KM-82509-10-00
Unavailable
41
WIRE, LEAD
5ND-82541-01-00
Unavailable
42
PILOT LIGHT ASSY
5B4-H3530-00-00
Unavailable
