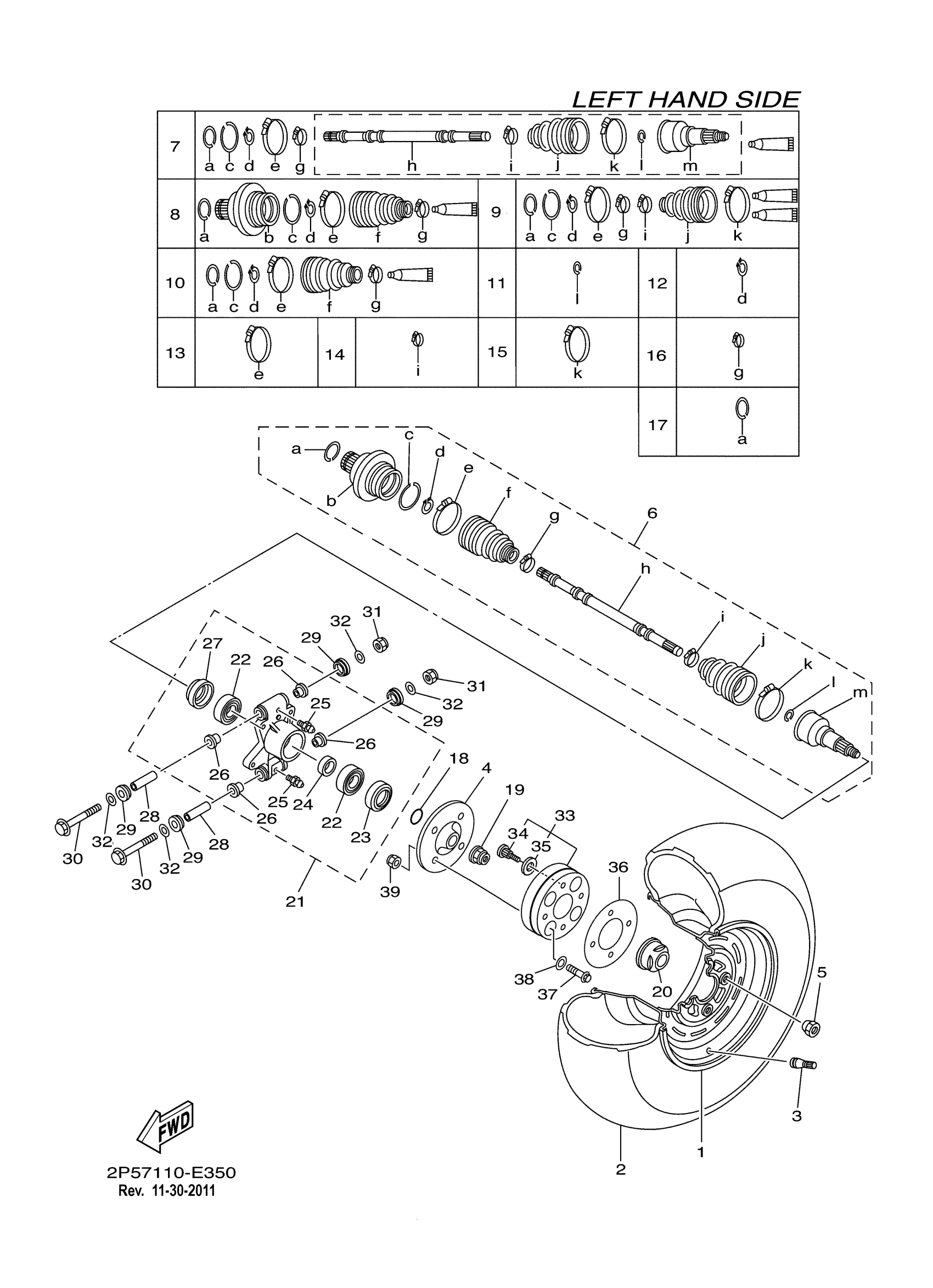

Yamaha YXR45FXR (RHINO 450) 2P5A 2008 REAR WHEEL Diagram
#
1
REAR WHEEL COMP.
5UG-F5390-20-00
Unavailable
2
TIRE (25X10.00-12 M952Y TL)
94110-12805-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB ASSY
5UG-F5310-30-00
Unavailable
5
NUT
90179-10022-00
$3.81
6
DRIVE SHAFT ASSY (LEFT REAR)
5UG-F531H-21-00
Unavailable
7
BALL JOINT SET
5UG-F530T-20-00
Unavailable
8
. DOUBLE OFF SET JOINT
5UG-F530V-02-00
Unavailable
9
BOOT SET (BALL JOINT)
5UG-F530X-01-00
Unavailable
10
BOOT SET (DOUBLE OFF)
5UG-F530Y-01-00
Unavailable
11
CIRCLIP
5UG-F512H-00-00
$8.99
12
. SNAP RING
5UG-F512J-00-00
Unavailable
13
. BOOT BAND(DOUBLE OFFSETJOINT)
5UG-F511H-00-00
Unavailable
14
BOOT BAND (SMALL)
5UG-F512G-00-00
Unavailable
15
BOOT BAND (BALL JOINT)
5UG-F511G-00-00
Unavailable
16
. BOOT BAND (SMALL)
5UG-F510U-00-00
Unavailable
17
CLIP, SPRING
5KM-2536E-10-00
Unavailable
18
O-RING(47X)
93210-27666-00
Unavailable
19
NUT
90179-24003-00
Unavailable
20
CAP, WHEEL
2P5-F512A-00-00
Unavailable
21
REAR KNUCKLE ASSY
5UG-F530F-11-00
Unavailable
22
BEARING
93306-206Y2-00
Unavailable
23
OIL SEAL
93106-42800-00
Unavailable
24
COLLAR
90387-30008-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
27
OIL SEAL
93106-38800-00
Unavailable
28
SPACER
5KM-23448-00-00
Unavailable
29
COVER, THRUST 1
5UG-23517-10-00
Unavailable
30
BOLT, FLANGE
90105-10277-00
Unavailable
31
NUT, SELF-LOCKING
90185-10012-00
Unavailable
32
WASHER, PLATE
90201-10035-00
Unavailable
33
SPACER ASSY
42S-F53W0-00-00
Unavailable
34
BOLT, SERRATION
90114-10013-00
Unavailable
35
WASHER, PLATE
90201-12034-00
Unavailable
36
PLATE 1
5UG-2539F-00-00
Unavailable
37
BOLT, FLANGE
90105-12062-00
Unavailable
38
WASHER, PLATE
90201-14020-00
Unavailable
39
NUT, SELF-LOCKING
90185-12007-00
Unavailable
