Description

Price

1

FRT. UPPER ARM (L)

5UG-F3540-01-00

$187.99

2

BALL JOINT 1

37S-23549-01-00

$76.99

3

CIRCLIP

93410-32075-00

$9.49

4

FRT. UPPER ARM (R)

5UG-F3550-01-00

Unavailable

5

BALL JOINT 1

37S-23549-01-00

$76.99

6

CIRCLIP

93410-32075-00

$9.49

7

ARM,FR. LWR. LH.

5UG-F357A-00-00

$121.99

8

ARM,FR. LWR. RH.

5UG-F358A-00-00

Unavailable

9

BUSH

5KM-23526-00-00

$19.99

10

BOLT, FLANGE

90105-10267-00

$9.49

11

NUT, SELF-LOCKING

90185-10012-00

$9.49

12

WASHER

5KM-22149-10-00

$7.99

13

NUT, CASTLE

90171-12001-00

$7.49

14

PIN, COTTER

91490-25020-00

$3.19

15

SHOCK ASSY (BLACK SPRING)

5UG-F3350-01-00

Unavailable

16

NUT, SELF-LOCKING

90185-10012-00

$9.49

17

BOLT, FLANGE

90105-10841-00

Unavailable

18

COVER, UNDER 1

5UG-F3123-00-00

Unavailable

19

NUT, SPRING(4ES)

90183-06069-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

Unavailable

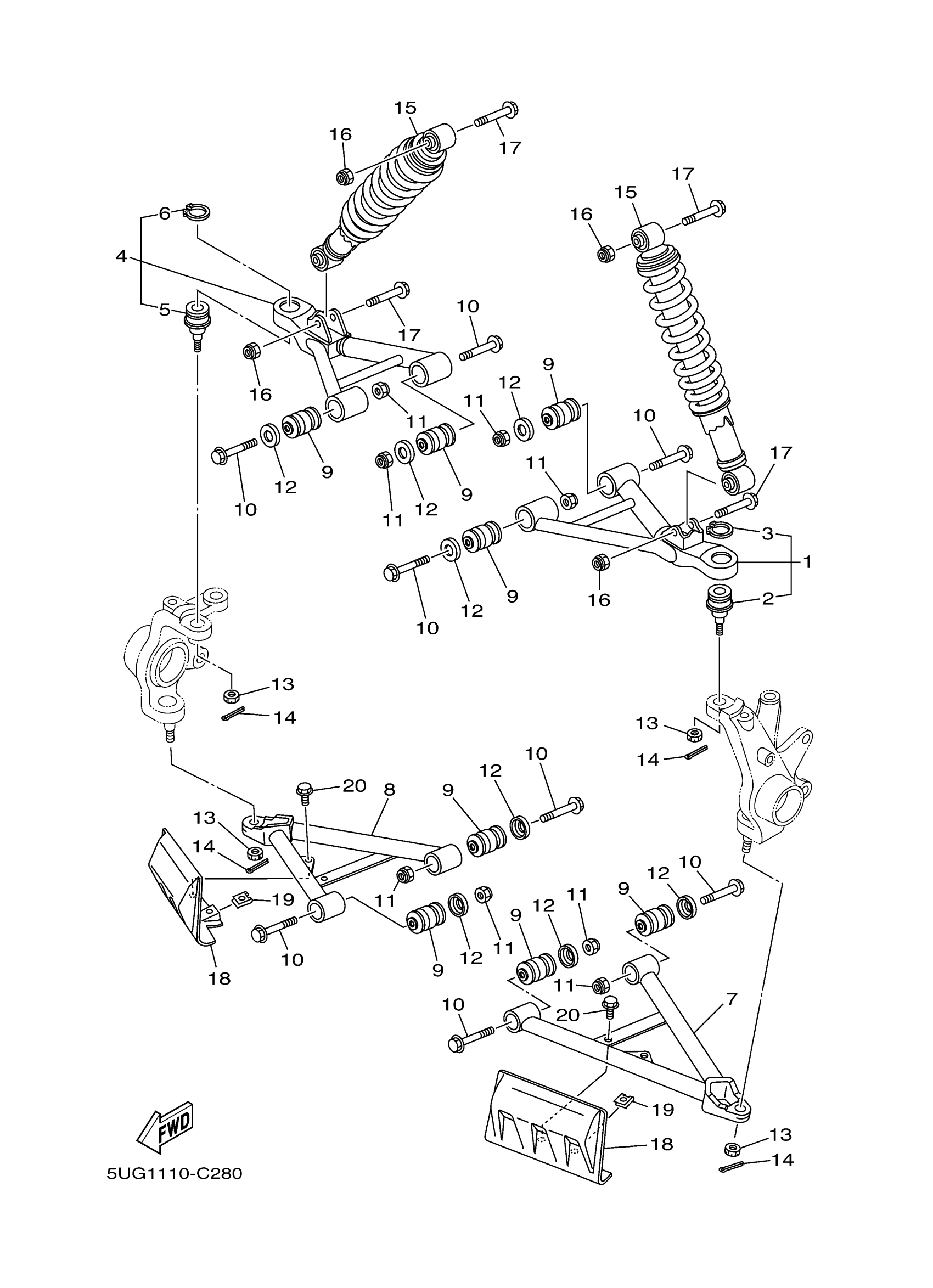

Yamaha YXR45FXR (RHINO 450) 2P5A 2008 FRONT SUSPENSION WHEEL Diagram

FRT. UPPER ARM (L)

BALL JOINT 1

CIRCLIP

FRT. UPPER ARM (R)

BALL JOINT 1

CIRCLIP

ARM,FR. LWR. LH.

ARM,FR. LWR. RH.

BUSH

BOLT, FLANGE

NUT, SELF-LOCKING

WASHER

NUT, CASTLE

PIN, COTTER

SHOCK ASSY (BLACK SPRING)

NUT, SELF-LOCKING

BOLT, FLANGE

COVER, UNDER 1

NUT, SPRING(4ES)

BOLT, FLANGE
