CRANKCASE COVER 1

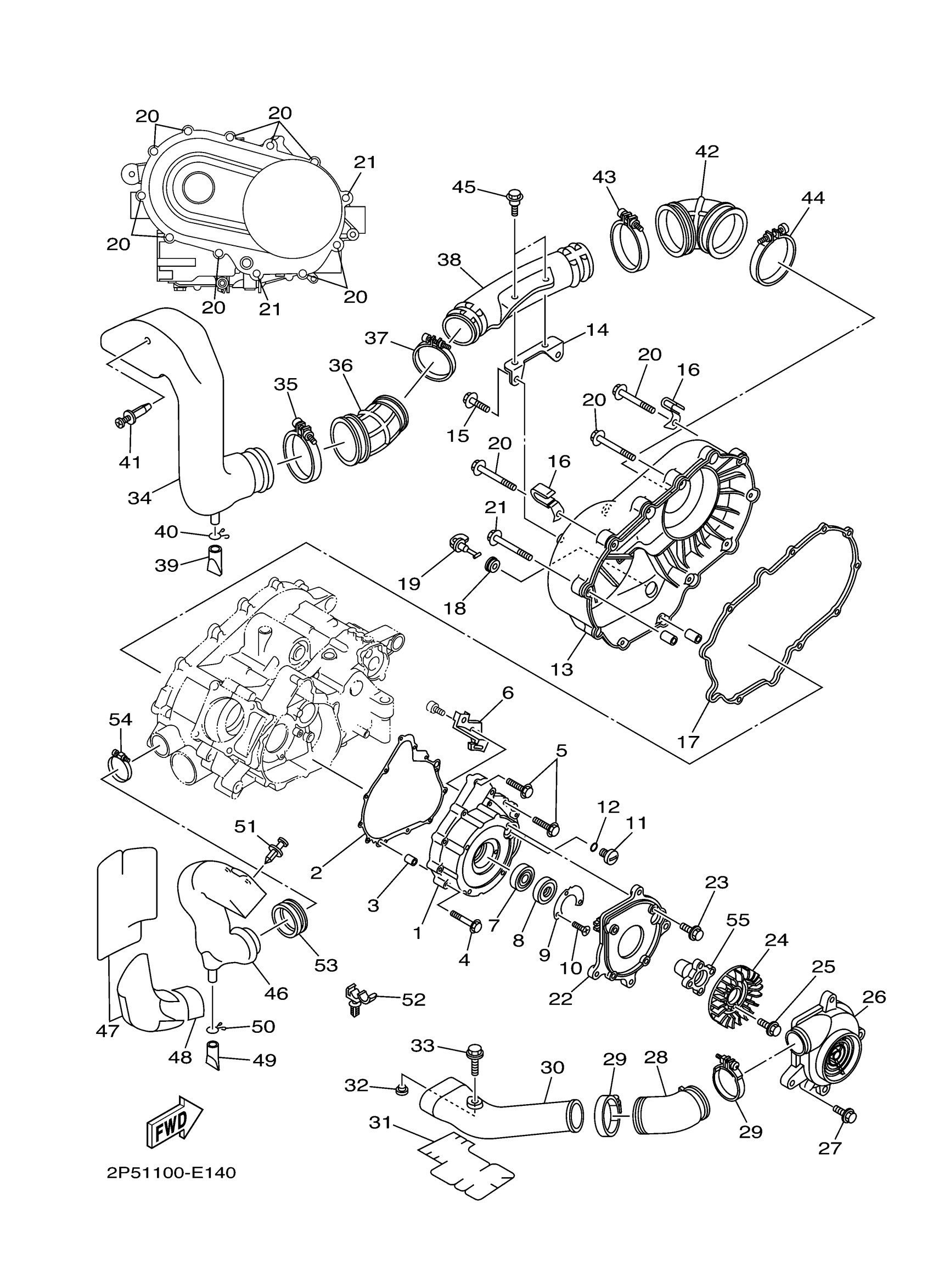

Yamaha YXR45FXR (RHINO 450) 2P5A 2008 CRANKCASE COVER 1 Diagram
#
1
COVER, CRANKCASE 1
5GH-15411-01-00
$281.99
2
GASKET, CRANKCASE COVER 1
5GH-15451-00-00
$23.99
3
PIN, DOWEL(3VD)
99530-10114-00
$2.55
4
BOLT, FLANGE
95022-06040-00
$3.45
5
BOLT, FLANGE
95022-06030-00
$3.72
6
PLATE
5GH-15113-00-00
Unavailable
7
BEARING(55X)
93306-07801-00
$55.99
8
OIL SEAL
93102-28476-00
$22.99
9
WASHER, THRUST
21V-15719-00-00
Unavailable
10
SCREW, COUNTERSUNK (21V)
90151-05023-00
$9.49
11
PLUG, STRAIGHT SCREW(2HT)
90340-14117-00
$14.99
12
O-RING (2H9)
93210-14369-00
$7.49
13
COVER, CRANKCASE 3
2P5-15431-00-00
Unavailable
14
BRACKET
2P5-15199-00-00
Unavailable
15
BOLT, FLANGE
95817-06012-00
$1.43
16
CLAMP
90462-10036-00
Unavailable
17
SEAL, CRANKCASE
5GH-15379-00-00
Unavailable
18
GROMMET (462)
90480-13018-00
Unavailable
19
PLUG, DRAIN
5KM-15351-00-00
Unavailable
20
BOLT, FLANGE
95817-06035-00
Unavailable
21
BOLT, FLANGE
95817-06045-00
Unavailable
22
AIR SHROUD, CYLINDER 3
5UG-12653-00-00
Unavailable
23
BOLT, FLANGE
95817-06020-00
Unavailable
24
FAN
2P5-12611-00-00
Unavailable
25
BOLT, FLANGE
95817-06016-00
Unavailable
26
AIR SHROUD, CYLINDER 1
5UG-12651-00-00
Unavailable
27
BOLT, FLANGE
95817-06020-00
Unavailable
28
JOINT 1
2P5-E2695-00-00
Unavailable
29
HOSE CLAMP ASSY
90450-64004-00
Unavailable
30
DUCT, 1
5UG-E2691-00-00
Unavailable
31
SEAL 1
5UG-F1575-00-00
Unavailable
32
NUT(1WT)
90179-06520-00
Unavailable
33
BOLT, FLANGE
95817-06020-00
Unavailable
34
DUCT, AIR
2P5-E5471-00-00
Unavailable
35
CLAMP, HOSE
2P5-F1823-00-00
Unavailable
36
SEAL, AIR DUCT
2P5-E5474-00-00
Unavailable
37
HOSE CLAMP ASSY
90450-70002-00
Unavailable
38
DUCT, AIR
2P5-E5475-00-00
Unavailable
39
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
40
CLIP
90467-160A4-00
Unavailable
41
RIVET
90269-06800-00
Unavailable
42
SEAL, CRANKCASE
2P5-E5379-00-00
Unavailable
43
HOSE CLAMP ASSY
90450-75002-00
Unavailable
44
HOSE CLAMP ASSY
90450-85002-00
Unavailable
45
BOLT
90109-06172-00
Unavailable
46
DUCT, AIR
2P5-E5473-00-00
Unavailable
47
PROTECTOR
2P5-E5491-00-00
Unavailable
48
SEAL, PROTECTOR
2P5-E5494-00-00
Unavailable
49
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
50
CLIP
90467-160A4-00
Unavailable
51
RIVET
90269-06800-00
Unavailable
52
CLAMP
90464-12830-00
Unavailable
53
SEAL, AIR DUCT
2P5-E5472-00-00
Unavailable
54
HOSE CLAMP ASSY
90450-64004-00
Unavailable
55
BOSS, STARTER PULLEY
2P5-15777-00-00
Unavailable
