- YXR45FW (RHINO 450) 2P54 2007
MIDDLE DRIVE GEAR

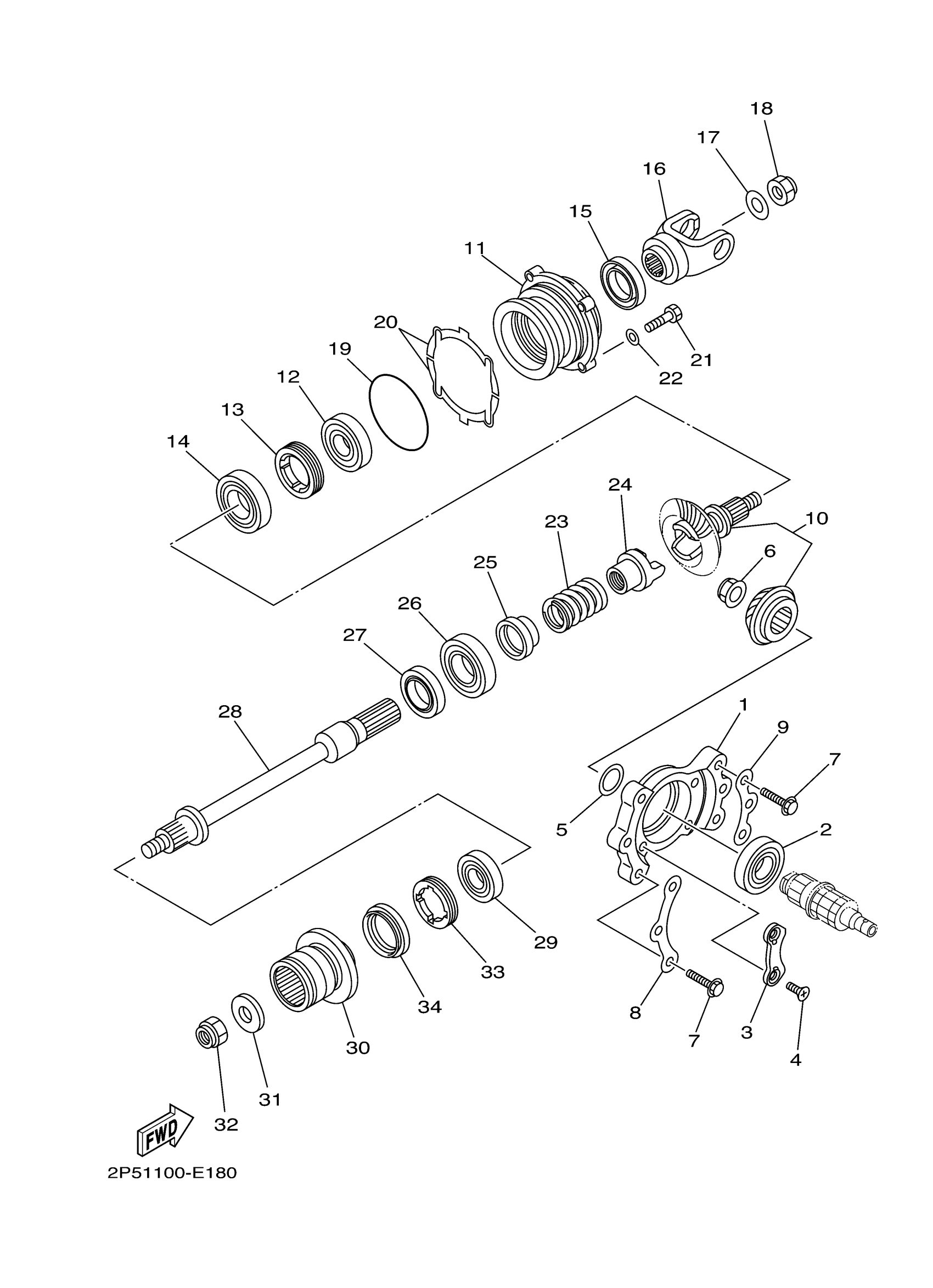

Yamaha YXR45FW (RHINO 450) 2P54 2007 MIDDLE DRIVE GEAR Diagram
#
1
HOUSING, BEARING
5GH-17521-00-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
PLATE, BEARING COVER
11H-15383-02-00
$14.49
4
SCREW
90149-08013-00
$8.49
5
SHIM, PINION
52G-17531-01-00
$1.92
5
SHIM, PINION
52G-17531-11-00
$1.92
5
SHIM, PINION
52G-17531-21-00
$7.99
5
SHIM, PINION
52G-17531-31-00
$6.99
5
SHIM, PINION
52G-17531-41-00
$7.99
5
SHIM, PINION
52G-17531-51-00
$6.99
6
NUT
90179-22015-00
$29.99
7
91312-08030
91312-08030-00
$8.49
8
WASHER,1
2P5-17058-00-00
Unavailable
9
WASHER,2
2P5-17059-00-00
Unavailable
10
PINION SET
2P5-17530-00-00
Unavailable
11
HOUSING, BEARING
5GH-17551-00-00
Unavailable
12
BEARING(3RR)
93306-30560-00
Unavailable
13
NUT(59V)
90179-65305-00
Unavailable
14
BEARING (8U9)
93306-20712-00
Unavailable
15
OIL SEAL
93102-35012-00
Unavailable
16
YOKE, JOINT
1D9-17556-00-00
Unavailable
17
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
18
NUT, SELF-LOCKING
90185-14009-00
Unavailable
19
O-RING (14X)
93210-78544-00
Unavailable
20
SHIM, PINION (0.1T)
5GH-17531-00-00
Unavailable
20
SHIM, PINION (0.15T)
5GH-17531-10-00
Unavailable
20
SHIM, PINION (0.2T)
5GH-17531-20-00
Unavailable
20
SHIM, PINION (0.3T)
5GH-17531-30-00
Unavailable
20
SHIM, PINION (0.4T)
5GH-17531-40-00
Unavailable
20
SHIM, PINION (0.5T)
5GH-17531-50-00
Unavailable
20
SHIM, PINION (0.6T)
5GH-17531-60-00
Unavailable
21
BOLT, HEXAGON
97017-08030-00
Unavailable
22
.. WASHER, PLATE
92990-08600-00
Unavailable
23
SPRING, COMPRESSION
90501-650L5-00
Unavailable
24
CAM, DRIVEN
4VR-17527-00-00
Unavailable
25
COLLAR, GEAR
5UH-17585-00-00
Unavailable
26
BEARING(2HR)
93306-00612-00
Unavailable
27
OIL SEAL(76K)
93102-30339-00
Unavailable
28
SHAFT, 1
1D9-1761A-00-00
Unavailable
29
BEARING(83R)
93306-20582-00
Unavailable
30
FLANGE, COUPLING 1
5UG-45593-00-00
Unavailable
31
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
32
NUT, SELF-LOCKING
90185-14009-00
Unavailable
33
NUT(4KB)
90179-55660-00
Unavailable
34
OIL SEAL(2NL)
93102-44454-00
Unavailable
