- YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008
SIDE COVER

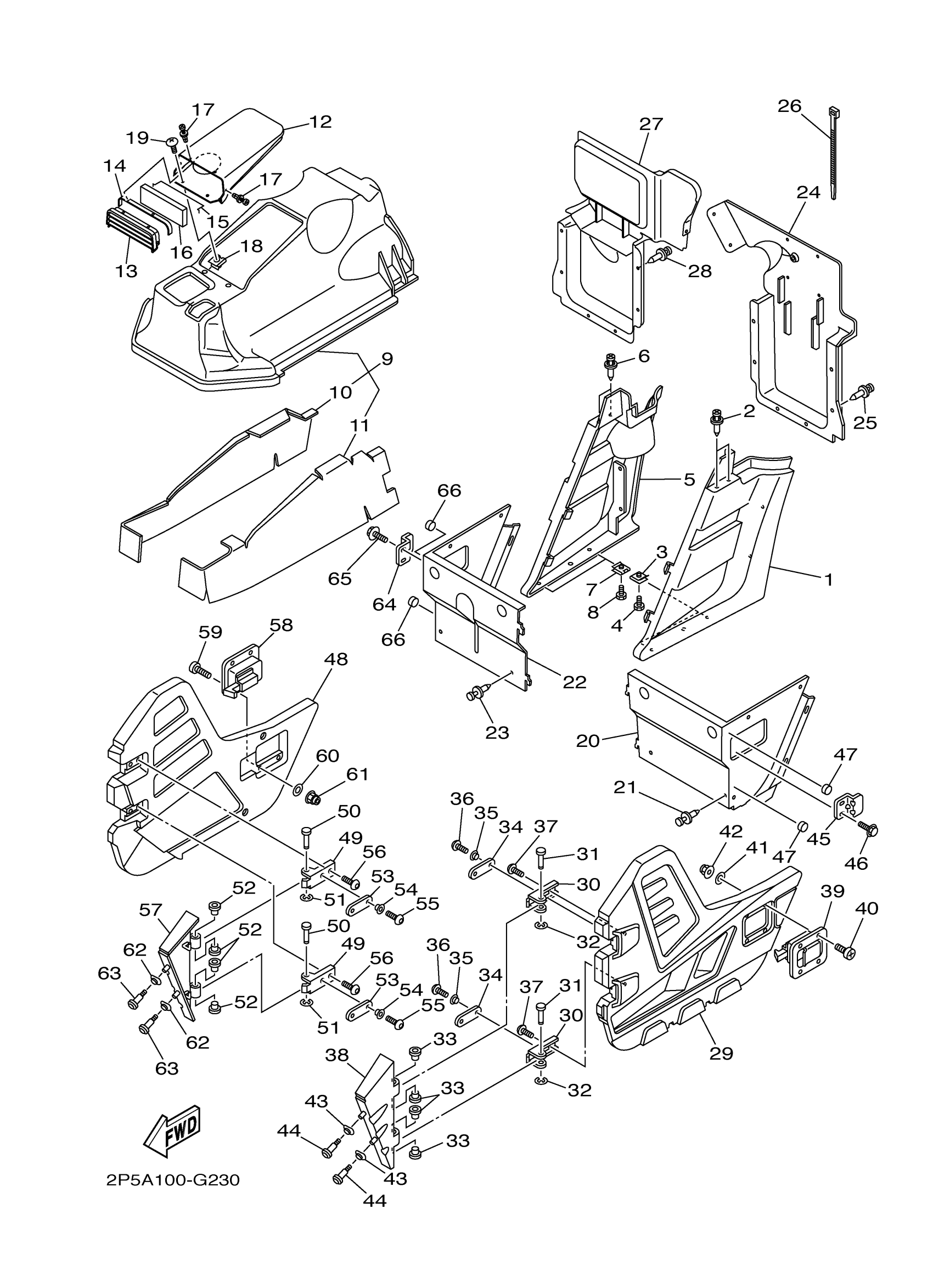

Yamaha YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008 SIDE COVER Diagram
#
1
SIDE PANEL COMP.1
5UG-K810F-01-00
Unavailable
2
RIVET
90269-06800-00
$2.18
3
NUT, SPRING
90183-05008-00
$9.49
4
BOLT, WITH WASHER
90119-05023-00
$8.49
5
SIDE PANEL COMP.2
5UG-K810G-01-00
Unavailable
6
RIVET
90269-06800-00
$2.18
7
NUT, SPRING
90183-05008-00
$9.49
8
BOLT, WITH WASHER
90119-05023-00
$8.49
9
COVER ASSY
2P5-F8108-00-00
Unavailable
10
. SEAL 1
5UG-F2873-10-00
Unavailable
11
. SEAL 3
5UG-F2875-10-00
Unavailable
12
BOX
5UG-2177A-00-00
$76.99
13
COVER 2
5UG-28229-00-00
$43.99
14
SEAL
5UG-14457-00-00
$4.58
15
HOLDER, WIRE
5UG-14415-00-00
Unavailable
16
SEAL
5UG-14476-00-00
Unavailable
17
RIVET
90269-05001-00
Unavailable
18
NUT, SPRING
90183-05008-00
$9.49
19
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
20
SUPPORT, SIDE PANEL
5UG-F254J-11-00
Unavailable
21
RIVET
90269-06800-00
$2.18
22
SUPPORT, SIDE PANEL 2
5UG-F254K-11-00
Unavailable
23
RIVET
90269-06800-00
$2.18
24
PROTECTOR, SIDE 1
5UG-K7561-02-00
Unavailable
25
RIVET
90269-06800-00
$2.18
26
CLAMP
90464-48800-00
Unavailable
27
PROTECTOR, FUEL TA
5UG-F4141-01-00
Unavailable
28
RIVET
90269-06800-00
$2.18
29
COVER, SIDE 1
5B4-F2864-00-00
Unavailable
30
HINGE
5B4-F1797-00-00
Unavailable
31
PIN 1
5B4-F146A-00-00
Unavailable
32
CLIP
5B4-F3447-00-00
Unavailable
33
BUSH, RUBBER 1
2P5-K7515-00-00
Unavailable
34
BAND, RUBBER
5B4-F2929-01-00
Unavailable
35
COLLAR
90387-06089-00
Unavailable
36
BOLT,HEX. SOCKET BUTTON
90111-06086-00
Unavailable
37
BOLT 2
5B4-F1722-00-00
Unavailable
38
HINGE 1
5B4-F197J-00-00
Unavailable
39
HANDLE, LATCH
5B4-F389F-00-00
Unavailable
40
SCREW, BINDING
98907-05020-00
Unavailable
41
WASHER, PLATE
90201-05039-00
Unavailable
42
NUT, S/L FLANGE
95607-05200-00
Unavailable
43
WASHER 2
5UG-K7526-00-00
Unavailable
44
BOLT
5B4-K7519-00-00
Unavailable
45
LATCH
5B4-F389E-00-00
Unavailable
46
BOLT
5B4-F1738-00-00
Unavailable
47
DAMPER
5B4-F1649-00-00
Unavailable
48
COVER, SIDE 2
5B4-F2868-00-00
Unavailable
49
HINGE
5B4-F1797-00-00
Unavailable
50
PIN 1
5B4-F146A-00-00
Unavailable
51
CLIP
5B4-F3447-00-00
Unavailable
52
BUSH, RUBBER 1
2P5-K7515-00-00
Unavailable
53
BAND, RUBBER
5B4-F2929-01-00
Unavailable
54
COLLAR
90387-06089-00
Unavailable
55
BOLT,HEX. SOCKET BUTTON
90111-06086-00
Unavailable
56
BOLT 2
5B4-F1722-00-00
Unavailable
57
HINGE 2
5B4-F197K-00-00
Unavailable
58
HANDLE, LATCH
5B4-F389F-00-00
Unavailable
59
SCREW, BINDING
98907-05020-00
Unavailable
60
WASHER, PLATE
90201-05039-00
Unavailable
61
NUT, S/L FLANGE
95607-05200-00
Unavailable
62
WASHER 2
5UG-K7526-00-00
Unavailable
63
BOLT
5B4-K7519-00-00
Unavailable
64
LATCH
5B4-F389E-00-00
Unavailable
65
BOLT
5B4-F1738-00-00
Unavailable
66
DAMPER
5B4-F1649-00-00
Unavailable
