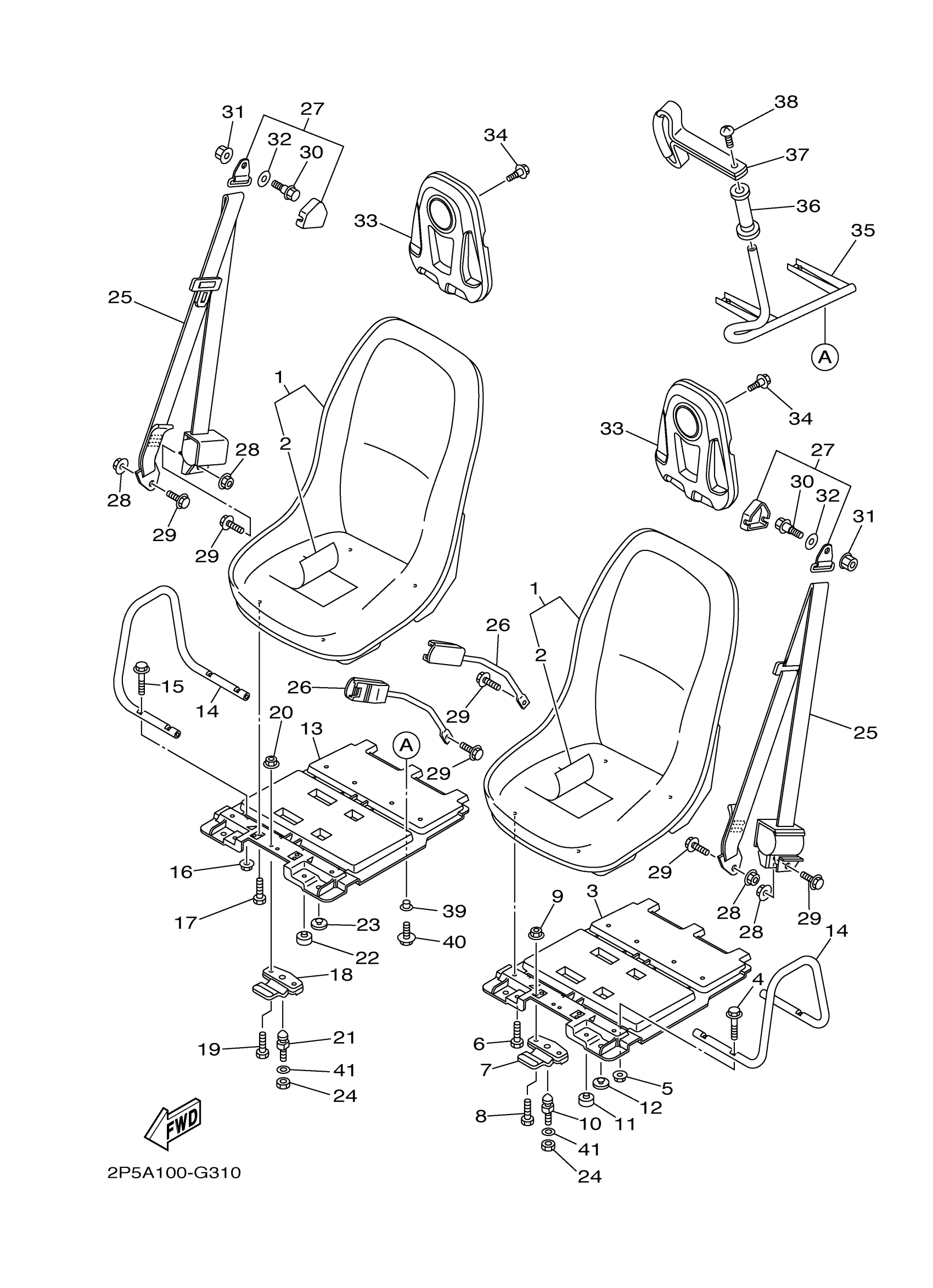

Yamaha YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5UG-F4710-30-00

Unavailable

2

COVER,SEAT

5UG-F470F-30-00

Unavailable

3

BOTTOM PLATE COMP.

5UG-F470E-01-00

Unavailable

4

BOLT, FLANGE

95812-08030-00

$3.01

5

NUT, SELF-LOCKING

95602-08200-00

$2.73

6

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

7

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

8

BOLT, FLANGE

95817-06040-00

$4.24

9

NUT, U FLANGE

95604-06200-00

$2.19

10

PIN

GH1-U3774-00-00

$19.38

11

DAMPER, SEAT

4XE-F4747-00-00

$8.73

12

PAD, BATTERY

371-82121-00-00

$7.40

13

BOTTOM PLATE COMP.

5UG-F470E-01-00

Unavailable

14

ASSIST,GRIP 2

2P5-F474W-00-00

Unavailable

15

BOLT, FLANGE

95812-08030-00

$3.01

16

NUT, SELF-LOCKING

95602-08200-00

$2.73

17

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

18

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

19

BOLT, FLANGE

95817-06040-00

$4.24

20

NUT, U FLANGE

95604-06200-00

$2.19

21

PIN

GH1-U3774-00-00

$19.38

22

DAMPER, SEAT

4XE-F4747-00-00

$8.73

23

PAD, BATTERY

371-82121-00-00

$7.40

24

NUT, SELF-LOCKING

90185-10012-00

Unavailable

25

SEAT BELT KIT

5UG-F47K0-09-00

Unavailable

26

SEAT BELT KIT

5UG-F47K0-09-00

Unavailable

27

COVER

5UG-F4796-00-00

Unavailable

28

NUT, S/L FLANGE

95602-10200-00

Unavailable

29

BOLT, FLANGE

95812-10022-00

Unavailable

30

BOLT, SPECIAL

5UG-F3394-00-00

Unavailable

31

SPEED NUT

5UG-F4735-01-00

Unavailable

32

WASHER, PLATE

90201-11801-00

$1.15

33

HEAD REST (BLACK)

5UG-F472L-50-00

Unavailable

34

BOLT(3KJ)

90109-063F5-00

Unavailable

35

ASSIST, GRIP

5B4-F474A-00-00

Unavailable

36

GRIP

5B4-F6241-00-00

Unavailable

37

HANDLE, SEAT

5B4-F4773-00-00

Unavailable

38

SCREW, BINDING

98907-06020-00

Unavailable

39

COLLAR

90387-06210-00

Unavailable

40

BOLT, FLANGE

90105-06831-00

Unavailable

41

WASHER, PLATE

90201-109U6-00

$3.29
